23
Adjustment, commissioning
Type 8045
Power supply
Switch
SOURCE SINK
L+ L- PE P+ P- Iout
Supply
18...36 Vdc
PULSE
DO1
CURRENT
PE
DI1
PE
DO2
DO3
AO1
+
-
18-36 V DC
+
-
(*)

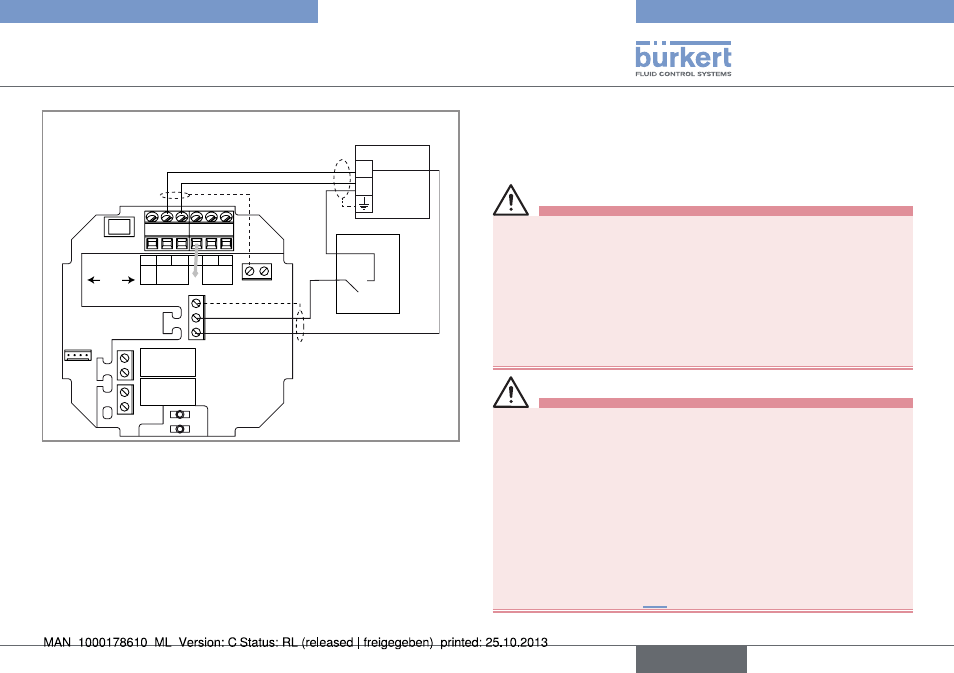

Fig. 21: Possible wirings of the DI1 digital input
*) If a direct earth connection is not possible, fit a 100 nF/50 V
capacitor between the negative power supply terminal and the earth
8. ADjusTmenT, commissioninG
8.1. safety instructions
Warning
risk of injury due to non-conforming operating.
Non-conforming operating could lead to injuries and damage the
device and its surroundings.
• The operators in charge of operating must have read and under-
stood the contents of these operating instructions.
• In particular, observe the safety recommendations and intended use.
• The device/installation must only be operated by suitably trained
staff.
Warning
danger due to non-conforming commissioning.
Nonconforming commissioning could lead to injuries and damage
the device and its surroundings.
• Before commissioning, make sure that the staff in charge
have read and fully understood the contents of the operating
instructions.
• In particular, observe the safety recommendations and intended use.
• The device / the installation must only be commissioned by suit-
ably trained staff.
• Before commissioning the device, enter the K factor of the fit-
ting used. See chap. 8.6.
