10 - 8750

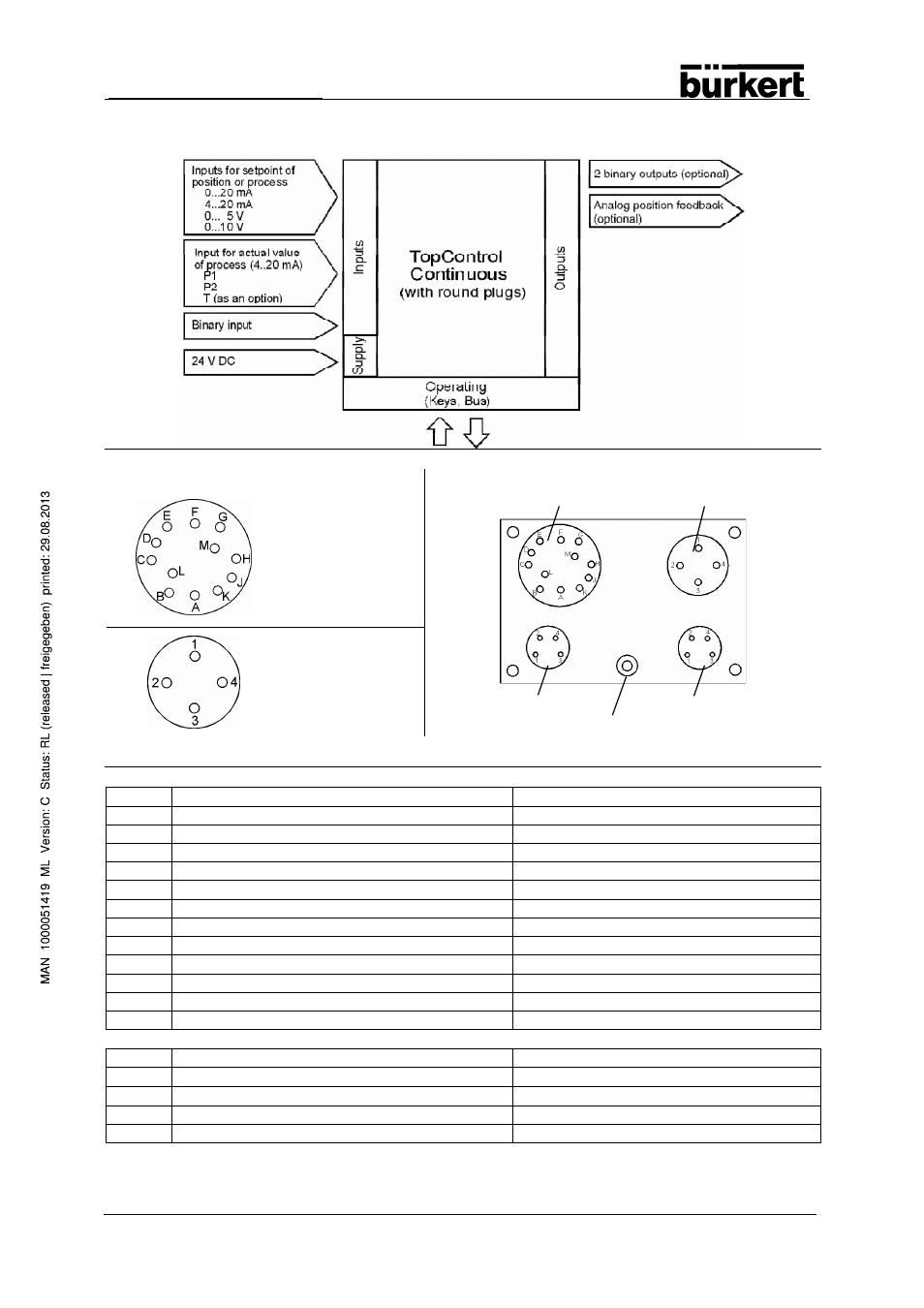

Electrical connections of FMR Type 8750
PIN allocation on FMR Electrical connector plate on FMR
Circular plug
M16, 12-pole,
connection of
signal inputs and
signal outputs
(from and to
SPC)
Circular plug
M12, 4-pole,
connection of
operating voltage
24 V DC
Circular plug M16 Circular plug M12
Circular plug M8 Circular plug M8
TE (technical earth)
The transmitter has been connected with circular plug M8 in the factory.
PIN Contacts of circular male connector M16 Signal level
A Setpoint GND GND
B Setpoint + 0/4 ... 20 mA or 0 ... 5/10 V
C Analog position feedback + 0/4 ... 20 mA or 0 ... 5/10 V
D Analog position feedback GND GND
E Binary output 1 + Low = 0 V; High = 24 V
F Binary output 2 + Low = 0 V; High = 24 V
G Common GND for binary outputs GND
H Binary input + Low = 0 ... 5 V; High = 10 ... 30 V
J Binary input GND GND
K Not used ---
L Not used ---
M Not used ---
PIN Contacts of circular male connector M12 Comment
1 +24 V DC (± 10 %) max. residual ripple 10 %
2 Not used ---
3 GND GND
4 Not used ---
