I
NSTALLATION
8 - 8750

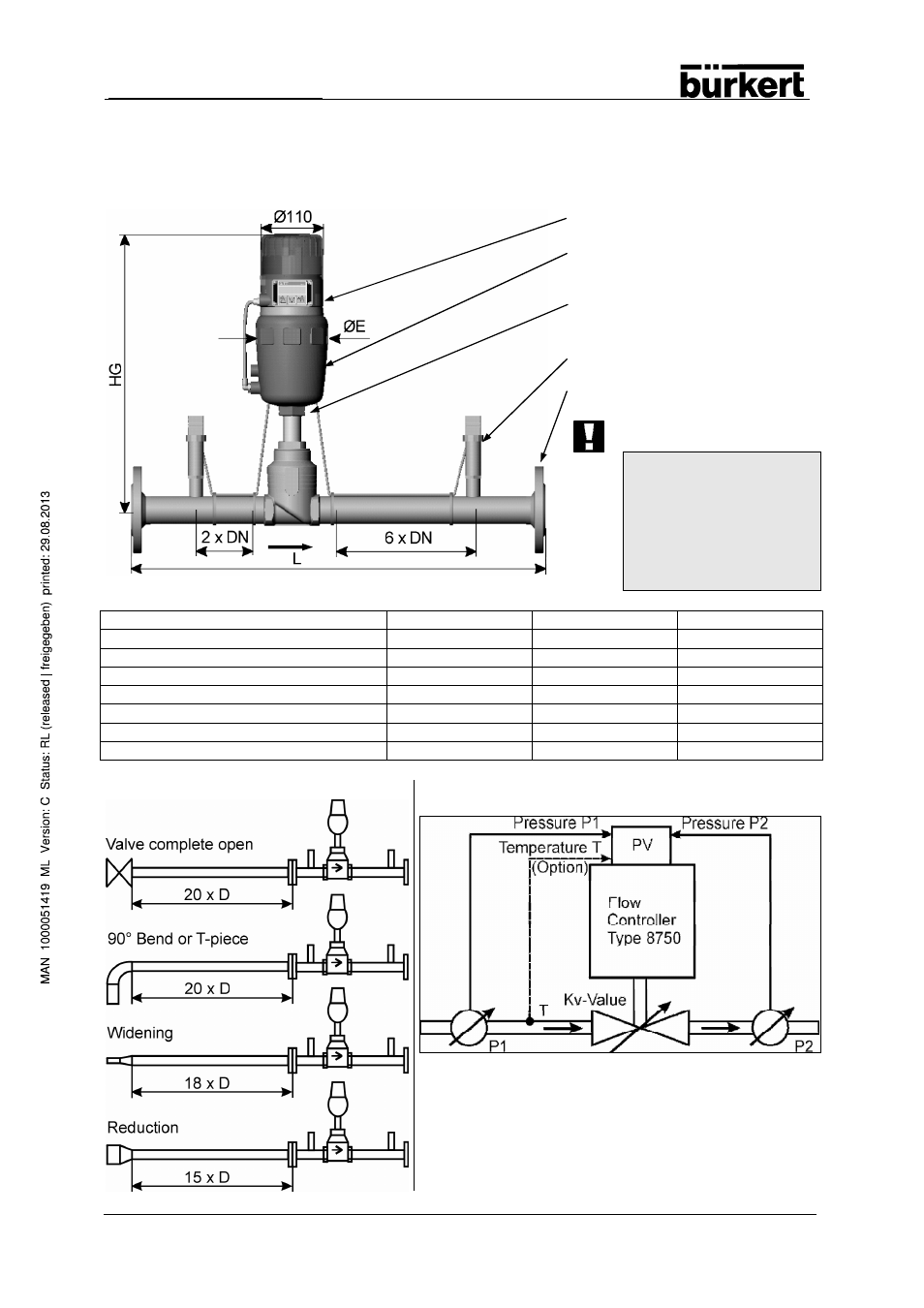

Dimensions
An FMR is delivered completely assembled with wired pressure transmitter lines
(the version shown was assembled without a temperature transmitter).
TopControl Type 8630
actuator, control valve Type
2712
cable from pressure transmitter
to TopControl Type 8630
pressure transmitter Type 8323
flange to DIN EN 1092-1
ATTENTION!
On assembly, be sure to
connect an intake
section to EN ISO 5167-
1 upstream. The
required outlet sections
are already integrated
into the FMR (6 x DN).
DN Pipe connection [mm] L [mm] HG mm] ØE [mm]
15 330 391 101
25 500 389 101
40 700 481 127
50 800 518 157
65 1000 547 157
80 1200 623 261
100 1400 633 261
Intake section to EN ISO 5167-1
Action diagram of the FMR
For process parameters on the FMR, the
volumetric flow through the valve or the flow velocity
of the medium at the defined pipe as reference may
be selected with the operating software (cf. menu
item P.CONTRL\P.CO SCAL).
