Burkert Type 1094 - Manual (Page 12)

10 - 1094
english
Connection of the control unit
(9-pole SUB-D plug)
Frequency input (GND)
Frequency output 1 (+)
not used
not used
not used
not used
Voltage output (+ 12 V) *
Proportional valve (+)
Proportional valve (-)
Protective contacts PE
Protective contacts PE
Operational voltage (GND)
Operational voltage (+ 24 V)
Output to the pump (+ 24 V)
Output to the pump (-)
not used
Voltage input (+ 12 V) *
LED "Proportional valve active"
LED "Pump active"
LED "Operating voltage on"
LED red = active
* The voltage input and voltage output are looped through here.
Electronic controller
Type 1094 Standard
Wire fuse 0.4 A M

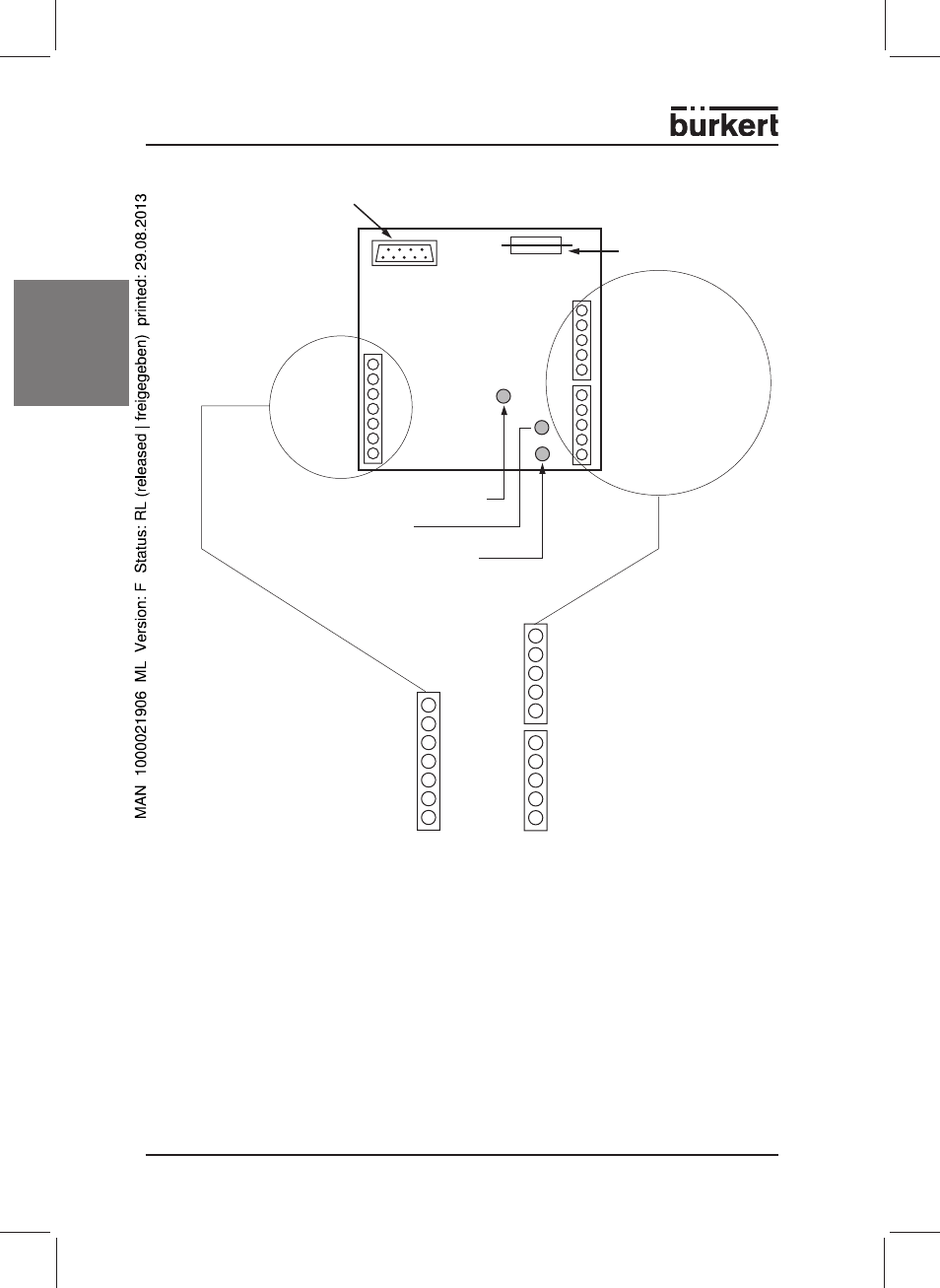

Figure 5: Electrical connections
Inputs
Outputs
