40 - 8644/Rockwell
S
YSTEM
D
ESCRIPTION
General description
The basic electronic module is connected to the
adjacent modules via its electrical interface. In this
way it receives both voltage supply and control
signals for the valves on the plug-on positions.
The basic electronic modules and hences the
valve units may be controlled as digital output
modules/terminals. More detailled information is to
be found in the chapter
Commissioning.
Variants
The valves which can be used with AirLine Type
8644 have different connection configurations,
valve separations and control characteristics. For
this reason, the basic electronic module is
available in different versions.

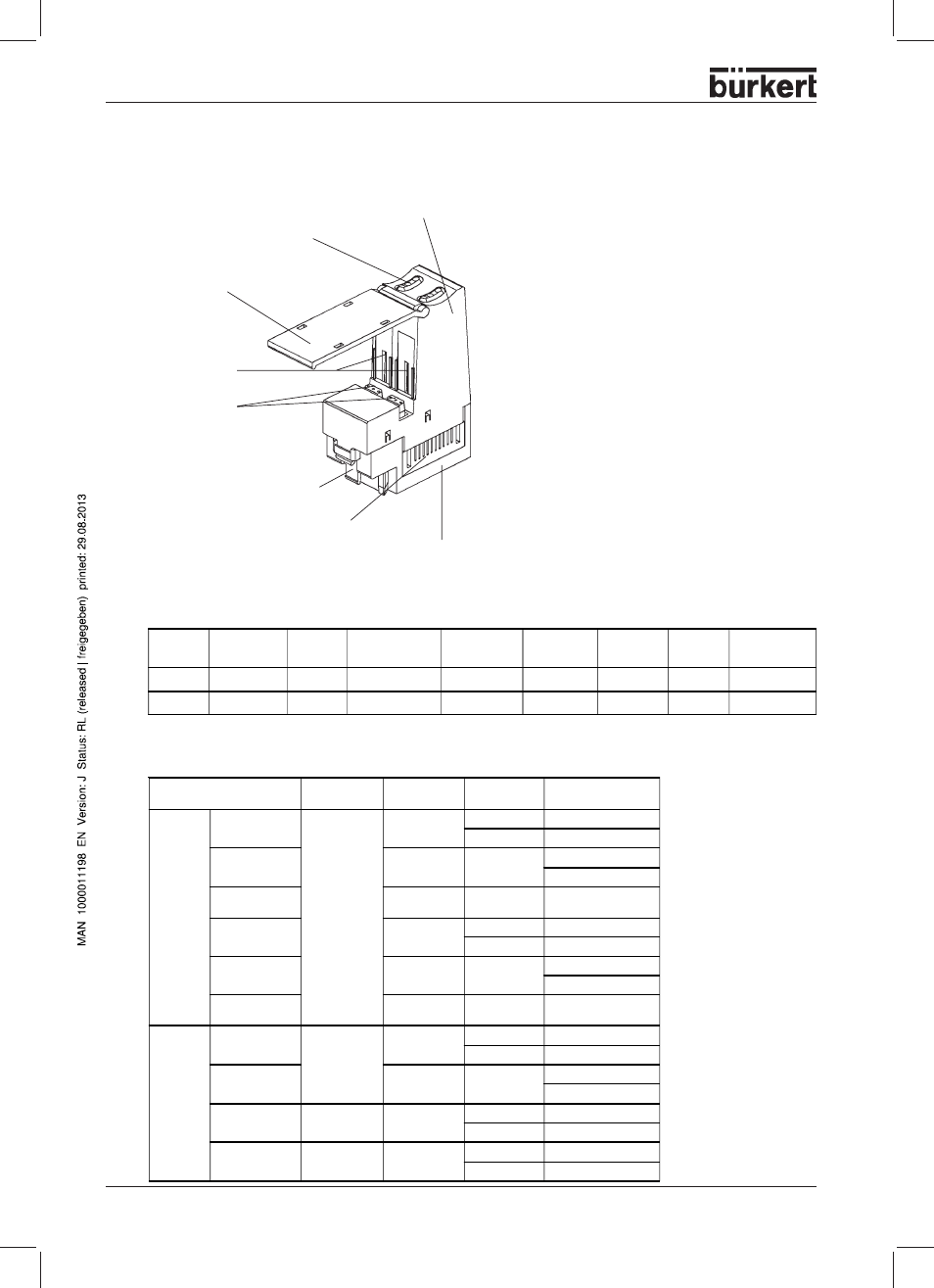

Example of a basic electronic module (Type ME02 / 2-fold)
Valve plug-on
positions
Labelling area
LED display
Electrical interface
Mechanical connection to basic
pneumatic module
Possible combinations (basic electronic module / valve)
* with 10 mm valves
BASIC ELECTRONIC MODULES
Functional module
Distributor module
Ejection hooks
Versions available
Versions 2-fold
monostable
2-fold
bistable
2-fold
2x monostable
3-fold 10 mm
monostable
4-fold
monostable
8-fold
monostable
8-fold
bistable
8-fold
2x monostable
ME02 X X X - - X X X
ME03 X X - X X - - -
Basic module type
Add-on
dimension
Valve
positions
Valve type Function
ME02
2-fold
monostable
11 mm
2
6524 3/2-way
6525 5/2-way
2-fold
bistable
2 0460
5/3-way
5/2-way pulse
2-fold
2x monostable
2 6524 2x 3/2-way
8-fold
monostable
8
6524 3/2-way
6525 5/2-way
8-fold
bistable
8 0460
5/3-way
5/2-way pulse
8-fold
2x monostable
8 6524 2x 3/2-way
ME03
2-fold
monostable
16.5 mm
2
6526 3/2-way
6527 5/2-way
2-fold
bistable
2 0461
5/3-way
5/2-way pulse
3-fold
monostable*
11 mm 3
6524 3/2-way
6525 5/2-way
4-fold
monostable
16.5 mm 4
6526 3/2-way
6527 5/2-way
