Page 8: Folder structure 5.1

background image

8

Configuration

cOnfiguraTiOn

5.

folder structure

5.1.

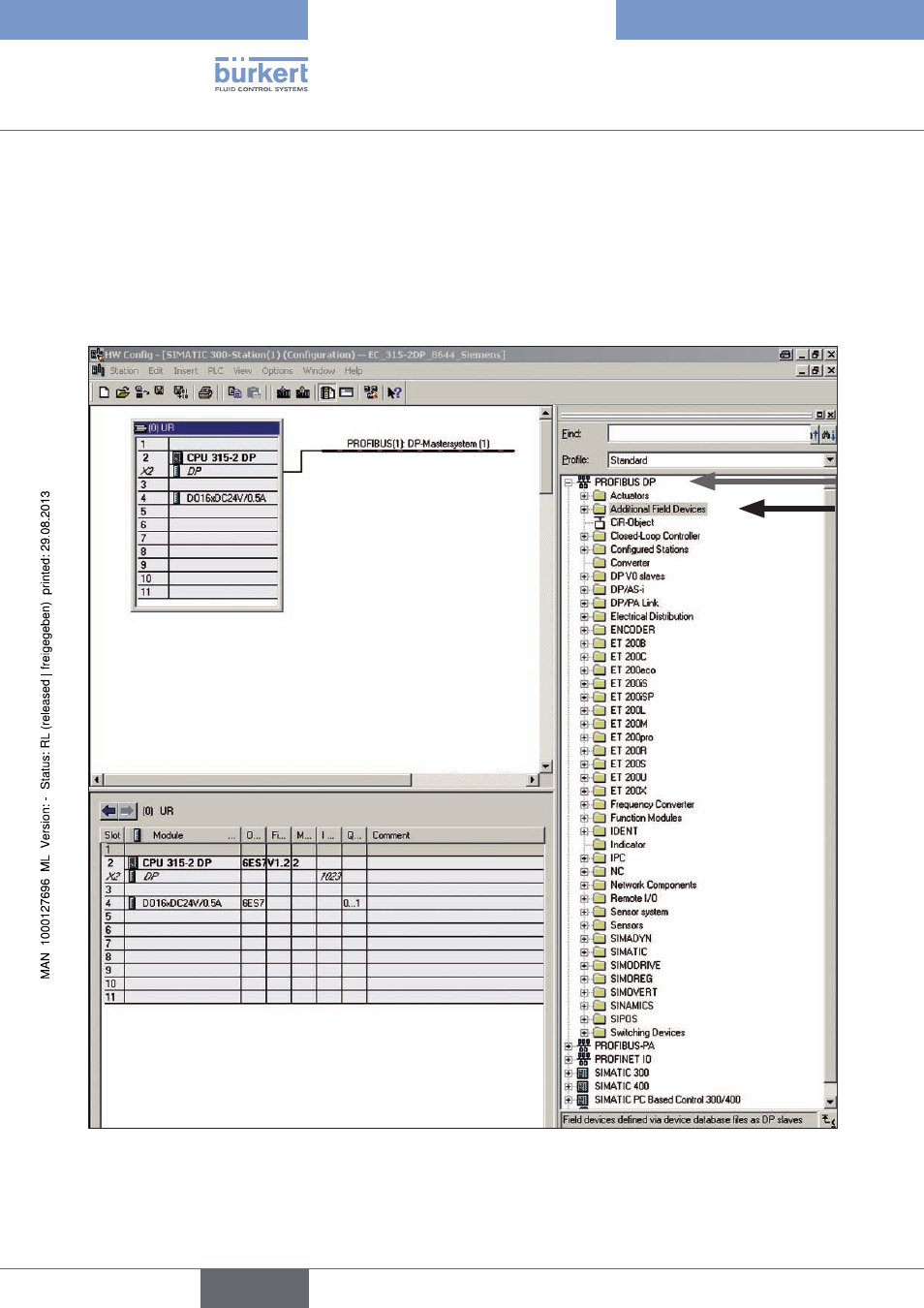

After installing the GSD file (files), you must select the corresponding Bürkert version.

In the “

PROFIBUS DP” folder open the “Additional Field Devices” subfolder (see Figure 3:).

Figure 3:

Additional Field Devices

The versions of the Bürkert devices can be found in the

“I/O”, “Valves” and “Closed-loop controllers” subfolders

(see

Figure 4: ).

english

Type XXXX
