Specifications and Dimensions
F8112101 28
Clearances
When installing the washer-extractor it is important to
allow adequate clearance on all sides of the machine
for maintenance, inspection and adjustment. If
multiple machines are installed, observe the
recommended clearance allowed between machines.
Refer to Figure 10.
PHM692N
* When using minimum clearances for installing 80 pound or larger machines, adjustments must be made to include the
width of the single-cup (standard) or 5-cup (optional) dispenser mounted on the side of the machine. Refer to Figure 5
through Figure 9.

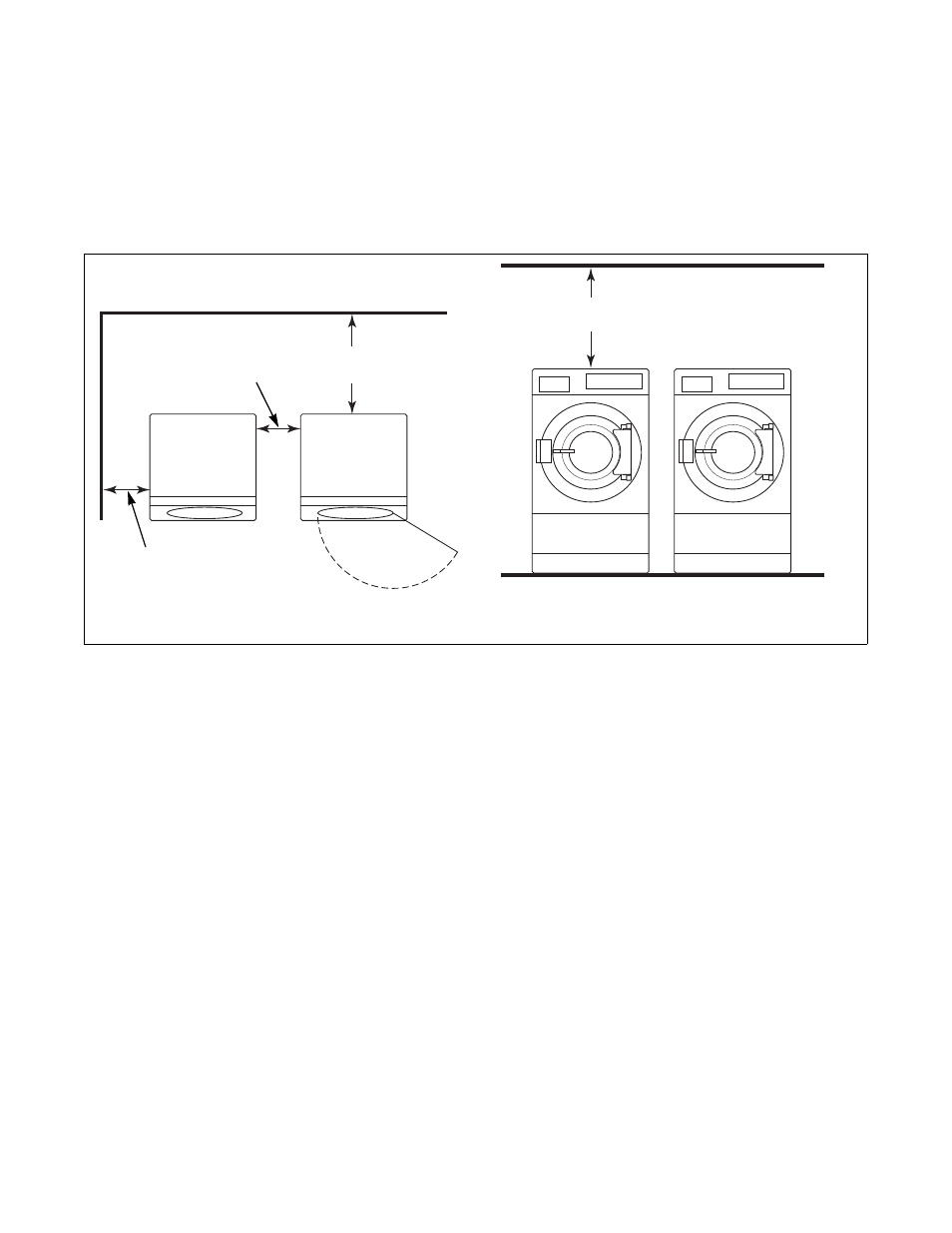

Figure 10
PHM692N
24 in.
(610 mm)
24 in.
(610 mm) 18 in. (recommended)
(457 mm)
1* in. (minimum)
(25 mm)
18 in. (recommended)
(457 mm)
6* in. (minimum)
(152 mm)
