Specifications and Dimensions
F8112101 22
175 Pound Models
PHM733N
1 External Supply Connection 6 Power Inlet
2 Cold Water 7 Greasing Points
3 Hot Water 8 Auxiliary Drain
4 Auxiliary 9 3 in. (76.2 mm) Drain
5 External Supply Wiring Connection 10 Steam Inlet

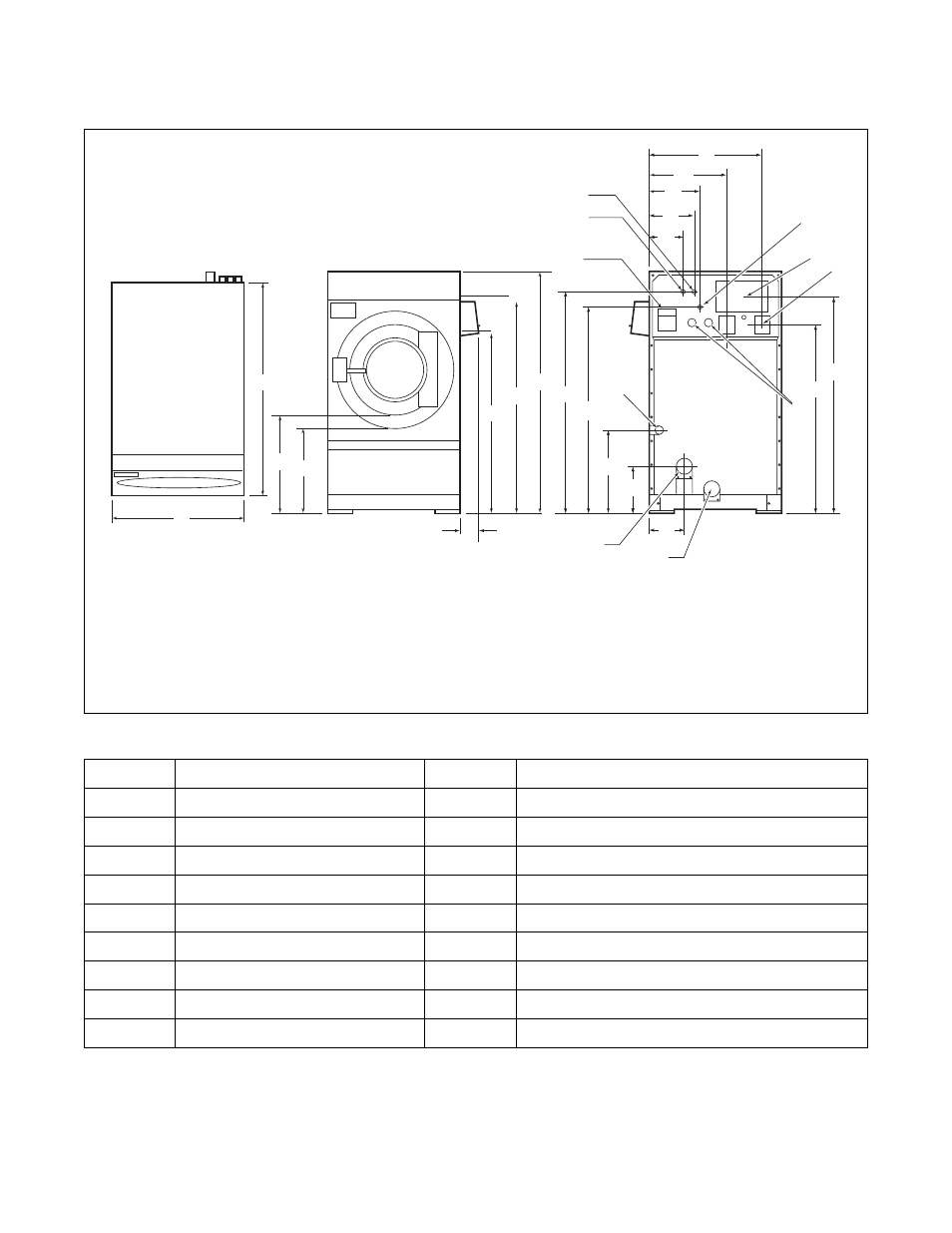

Figure 8
REAR FRONT TOP
D
E
F
A
B
C
G
H
I
J
K
L
M
N
P
4
6
5
2
3
9
8
1
R
O
S
7
Q
T
10
A 64.1 in. (1628 mm) K 11.6 in. (294 mm)
B 50.3 in. (1276 mm) L 15.6 in. (397 mm)
C 34.3 in. (871 mm) M 21.6 in. (549 mm)
D 31.3 in. (795 mm) N 18.6 in. (473 mm)
E 58 in. (1473 mm) O 28.8 in. (732 mm)
F 67.6 in. (1717 mm) P 31.1 in. (789 mm)
G 77.1 in. (1958 mm) Q 63.8 in. (1621 mm)
H 73.2 in. (1859 mm) R 70.2 in. (1784 mm)
I 66.2 in. (1681 mm) S 19.4 in. (492 mm)
J 45.3 in. (1149 mm) T 6 in. (152 mm)
Table 9
