Specifications and Dimensions
23 F8112101

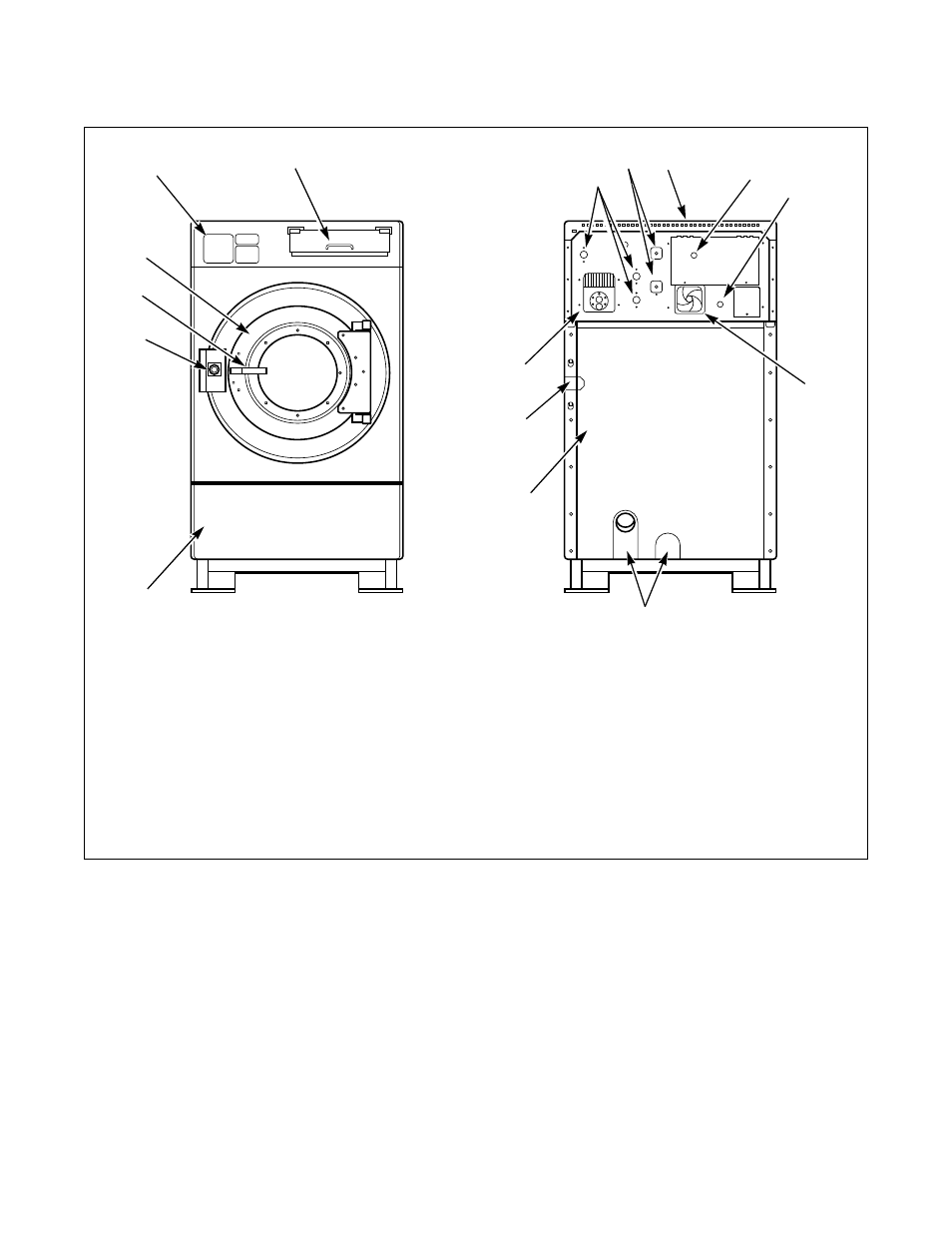

Front and Rear Features
PHM687N
1 Front Service Panel 9 Chemical Service Connection
2 Door Release Panel 10 Water Service Connections
3 Door Handle 11 Lubrication Points for Bearings
4 Loading Door 12 Top Service Panel
5 Control Panel 13 Chemical Signal Control Connection
6 Supply Dispenser 14 Power Service Connection
7 Rear Service Panel 15 Cooling Fan and Filter
8 Steam Service Connection 16 Drain Service Connections
Figure 9
PHM687N
15
12
14
10
13
11
8
5
7
16
6
3
9
4
2
1
REAR FRONT
