Specifications and Dimensions
F8112101 20
125 Pound Models
PHM731N
1 External Supply Connection 6 Power Inlet
2 Hot Water 7 3 in. (76.2 mm) Drain
3 Cold Water 8 Auxiliary Drain
4 Auxiliary 9 Steam Inlet
5 External Supply Wiring Connection

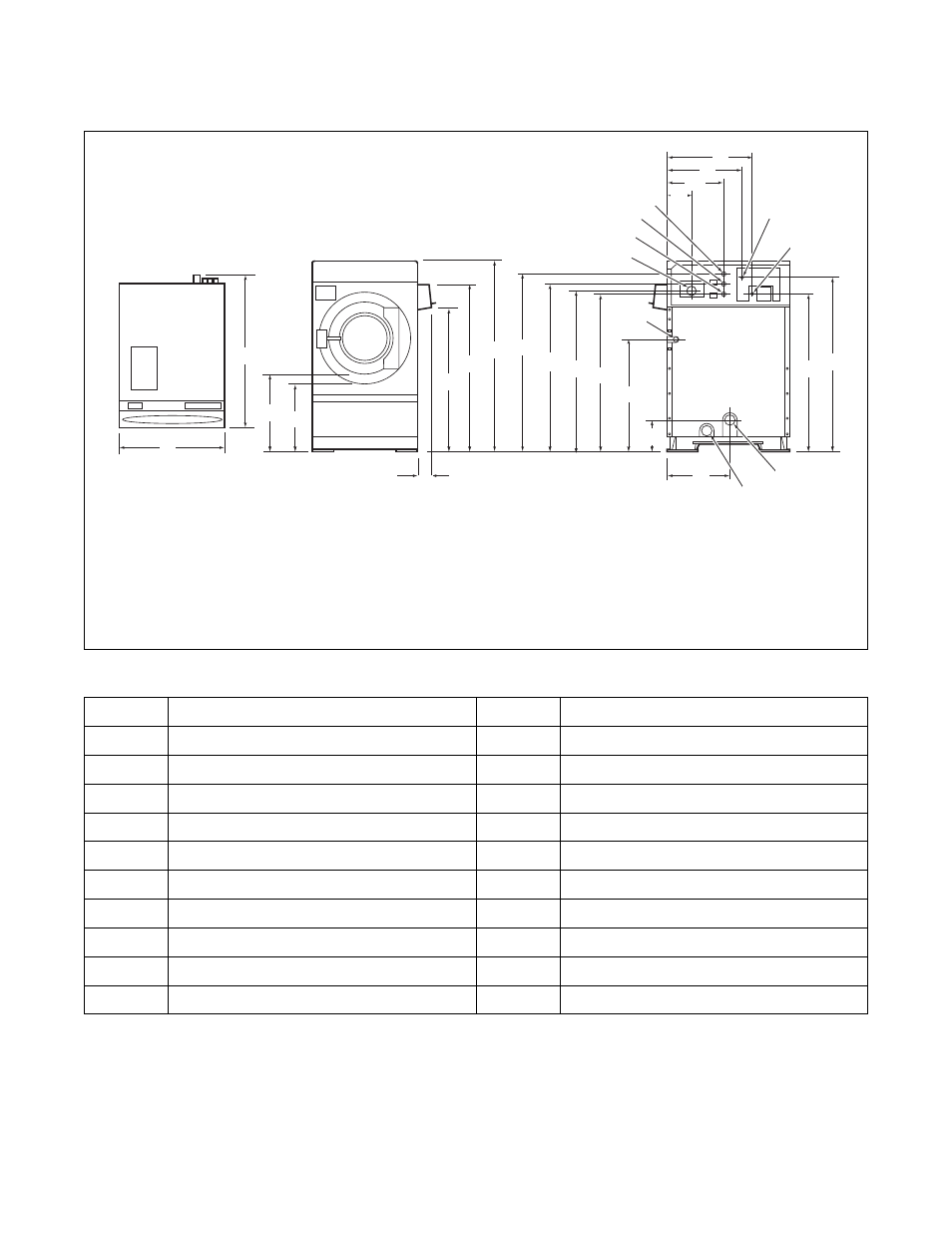

Figure 6
FRONT
D
E
F
A
B
C
G H
I
J
K
L
M
N
P
4
6
5
2
3
9
8
1
R
O
S
TOP REAR
7
Q
U
T
A 56.1 in. (1425 mm) L 45.3 in. (1149 mm)
B 50.3 in. (1278 mm) M 11.6 in. (294 mm)
C 34.3 in. (871 mm) N 6.7 in. (171 mm)
D 31.3 in. (795 mm) O 18.1 in. (460 mm)
E 58 in. (1473 mm) P 28.8 in. (732 mm)
F 67.6 in. (1717 mm) Q 31.1 in. (789 mm)
G 77.1 in. (1958 mm) R 63.8 in. (1621 mm)
H 71.7 in. (1821 mm) S 70.2 in. (1784 mm)
I 67.7 in. (1719 mm) T 19.4 in. (492 mm)
J 64.5 in. (1638 mm) U 6 in. (152 mm)
K 63.7 in. (1618 mm)
Table 7
