Specifications and Dimensions
21 F8112101
140 Pound Models
PHM732N
1 External Supply Connection 6 Power Inlet
2 Cold Water 7 Greasing Points
3 Hot Water 8 Auxiliary Drain
4 Auxiliary 9 3 in. (76.2 mm) Drain
5 External Supply Wiring Connection 10 Steam Inlet

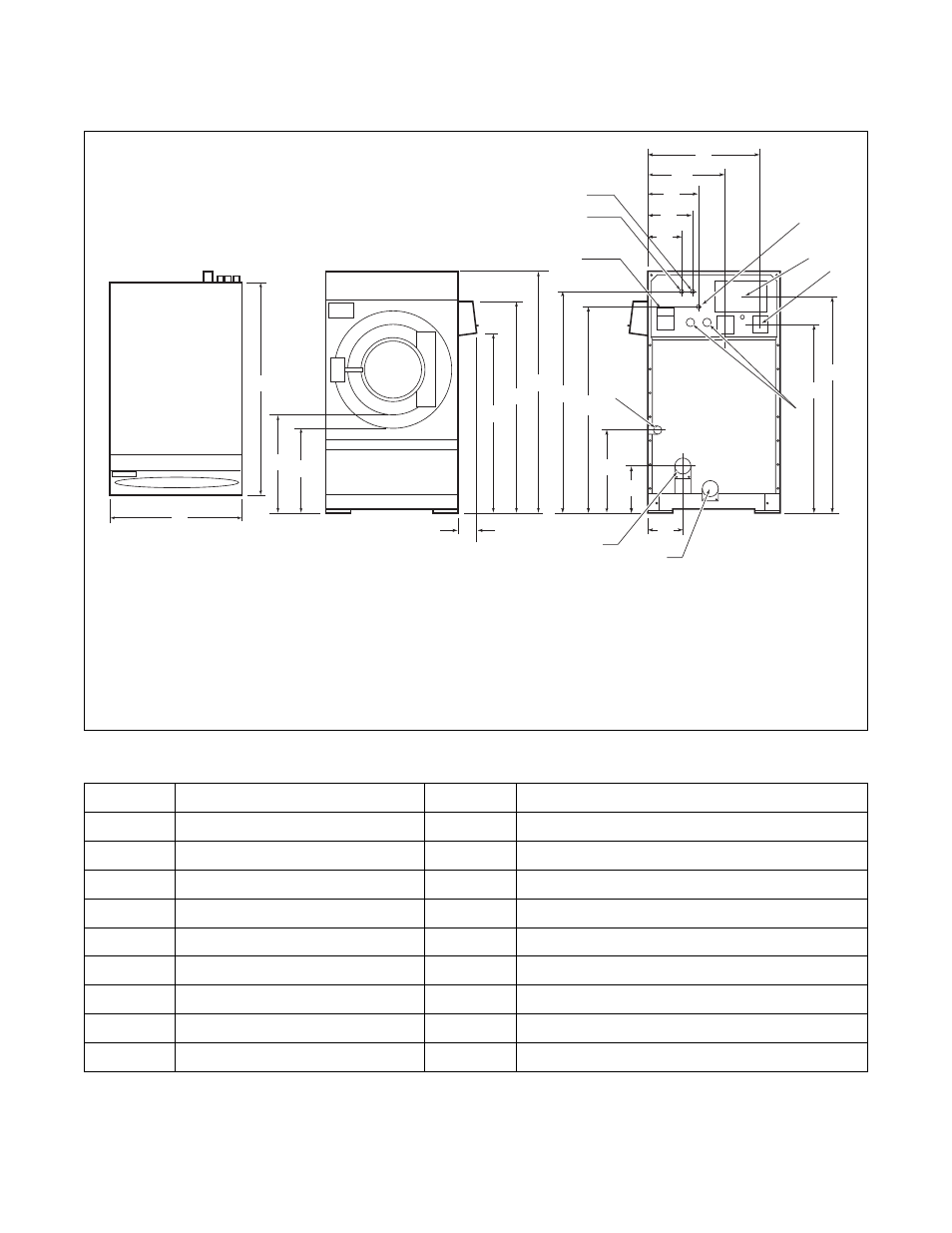

Figure 7
PHM732N
REAR FRONT TOP
D
E
F
A
B
C
G
H
I
J
K
L
M
N
P
4
6
5
2
3
9
8
1
R
O
S
7
Q
T
10
A 59.1 in. (1502 mm) K 11.7 in. (297 mm)
B 50.3 in. (1276 mm) L 12 in. (305 mm)
C 34.3 in. (871 mm) M 15.18 in. (386 mm)
D 31.3 in. (795 mm) N 17 in. (432 mm)
E 58 in. (1473 mm) O 36.7 in. (932 mm)
F 67.6 in. (1717 mm) P 45.26 in. (1150 mm)
G 77.1 in. (2083 mm) Q 56 in. (1422 mm)
H 70.8 in. (1798 mm) R 64.4 in. (1636 mm)
I 65.7 in. (1502 mm) S 19.3 in. (490 mm)
J 45.5 in. (1158 mm) T 6 in. (152 mm)
Table 8
