1-6
Brooks ® 4800 Series
Section 1 Introduction Installation and Operation Manual
X-TMF-4800-MFC-eng
Part Number: 541B072AAG
September, 2013
1-4 Specifications for Local Operator Interface (LOI)
For detailed instructions refer to the Brooks document X-SE-4800-LOI-eng.

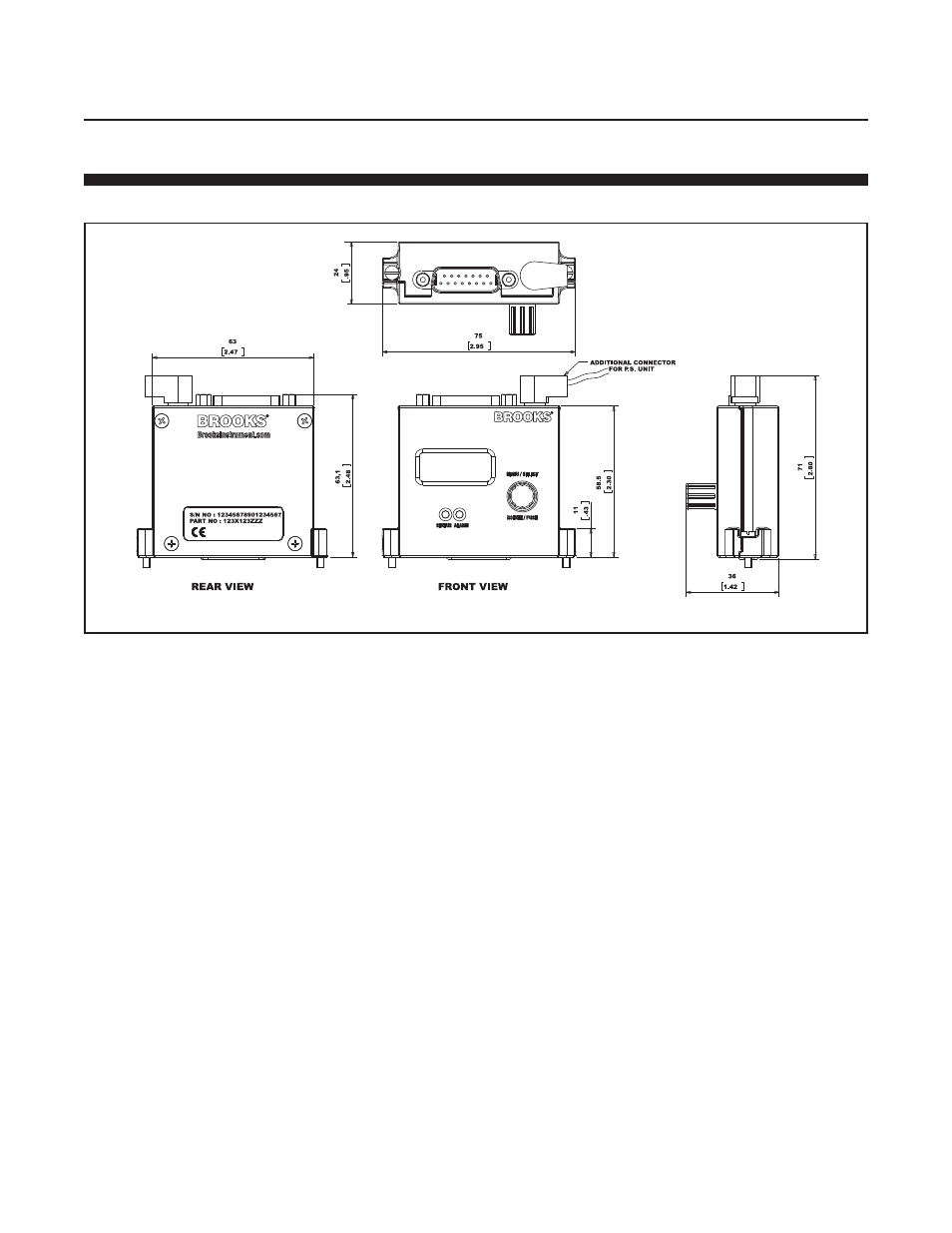

Figure 1-3 Dimensions for the 4800 Series Local Operator Interface (LOI)
Local Operator Interface (LOI):
Display
Effective display area: 28 mm wide, 11 mm high
Display contents: 8 x 2 dot matrix display
ELECTRICAL CHARACTERISTICS:
Electrical Connections
Two (2) 15-pin D-sub connectors, one for connection to the 4800 Series
device and one for the remote connection
Power Supply Voltage
The LOI optionally includes a wall mount power adaptor with a 3.5-mm DC-
plug. The adaptor works with input voltages of AC 90-240 V/47-63Hz. The
adaptor supports European, U.K., Australia and U.S. wall plugs. Power can
also be supplied by a remote connection via the D-connector.
Materials of Construction
Enclosure: ABS plastic with CU-Ni plating.
