When the drive is in play state, pressing the right edge of the button will skip
to the next track.
•
When the drive is in play state, pressing the left edge of the button will skip to
the previous track.
† †
Headphone Volume Control knob:
Turn this rotary knob to adjust the headphone volume.
‡ ‡
Headphone jack:
This is a 3.5mm audio headphone jack.
ˆ ˆ
Line-out jack:
Audio outputs signal to an amplifier.

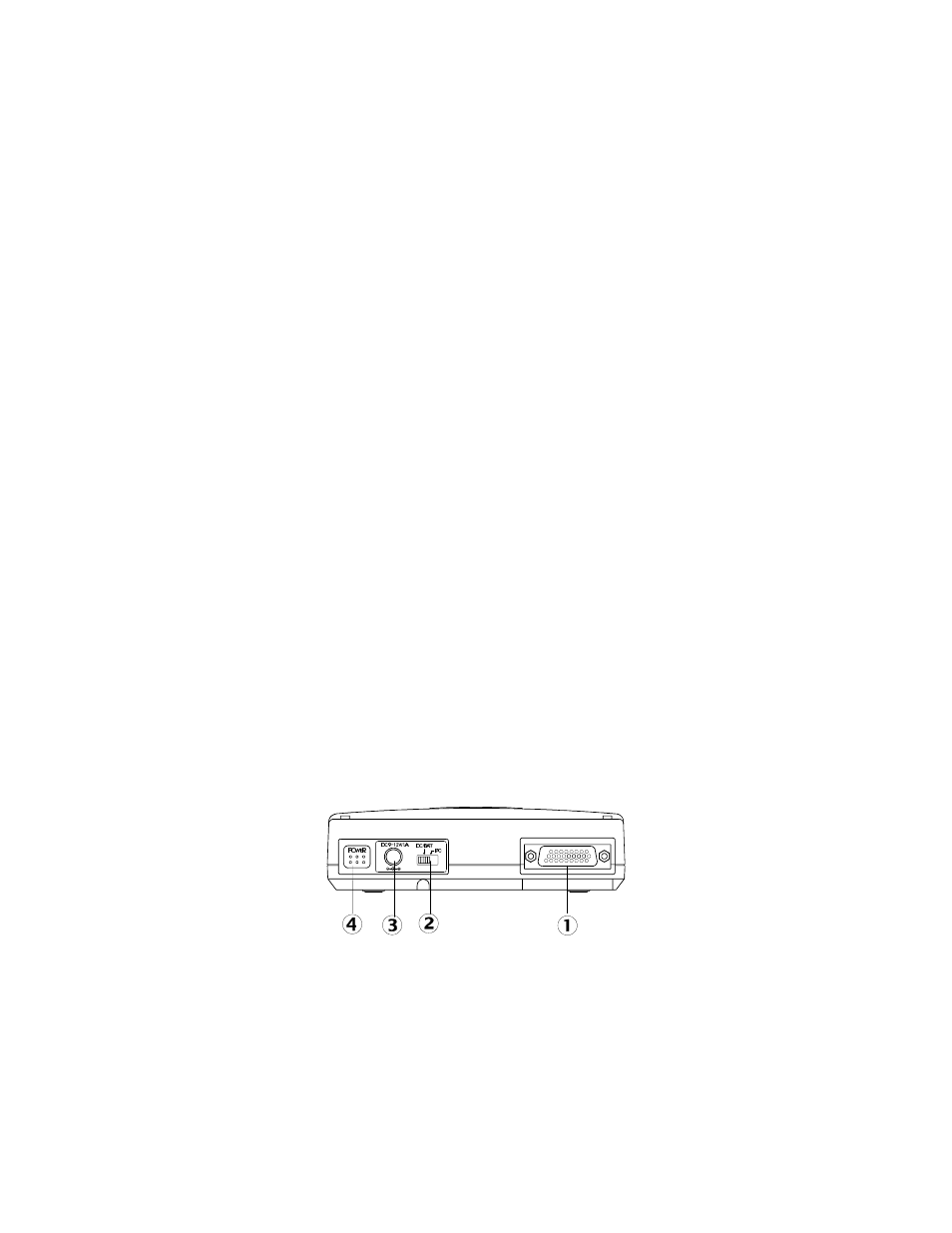

REAR PANEL OF THE CD-ROM DRIVE:
• •
PCMCIA Interface connector:
This connector connects to the PCMCIA interface card.
‚ ‚
Power Source switch:
•
Set the switch to “PC” to select the power source from PCMCIA socket.
•
Set the switch to “DC/BATT” to select the power source from AC adapter or
batteries.
Please refer to next section titled “CD-ROM POWER SOURCE” for details.
ƒ ƒ
DC-IN jack:
This jack connects to an AC adapter.
„ „
Power button: ( for stand-alone CD player operation only)
Press this button to power on/off the drive when it is used stand-alone as an
audio CD player.
Figure 2
