450564 - 3 www.amdry.com 41
Illus. No. Part No. Qty. Description
1 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
2 –––––– 1 24 VAC Transformer
(refer to Step Down Transformer Usage Listing on page 48)
3 132449 1 2-Pole Contact Block (for 208-240 volt models Only)
4 132445 1 3-Pole Contactor (for 120 volt models Only)
132447 1 3-Pole Contactor (for 208-240 volt models Only)
5 132383 1 2-Pole Contact Block (for 120 volt models Only)
6 150301 * #8-18 x 7/16” Phillips Pan Head TEK Screw
7 136008 * Fuse Holder ONLY
8 136057 * 1/2-Amp (Slo-Blo) Fuse
9 153002 1 5/16” Lock Washer
10 152004 1 5/16-18 Hex Nut
11 150297 1 #10 x 1/2” Hex Washer TEK Screw – Green
12 121010 1 L-70 Ground Lug
13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
14 353258 1 Rear Panel Connector Bracket
15 306304 1 Rear Electric Mounting Panel ONLY
830245 1 Rear Electric Panel Assembly Complete – 115 Volt
(includes illus. nos. 1, 2, and 4 through 18)
826463 1 Rear Electric Panel Assembly Complete – 208-240 Volt
(includes illus. nos. 1 through 4 and 6 through 18)
16 150008 2 #6-32 x 1-1/4” Phillips Round Head Machine Screw
17 120716 1 2-Position Terminal Block
18 151000 2 #6-32 Pal Nut
19 121300 3 Open / Closed Bushing
* Quantity is 1 for 115v and 2 for 208-240v.

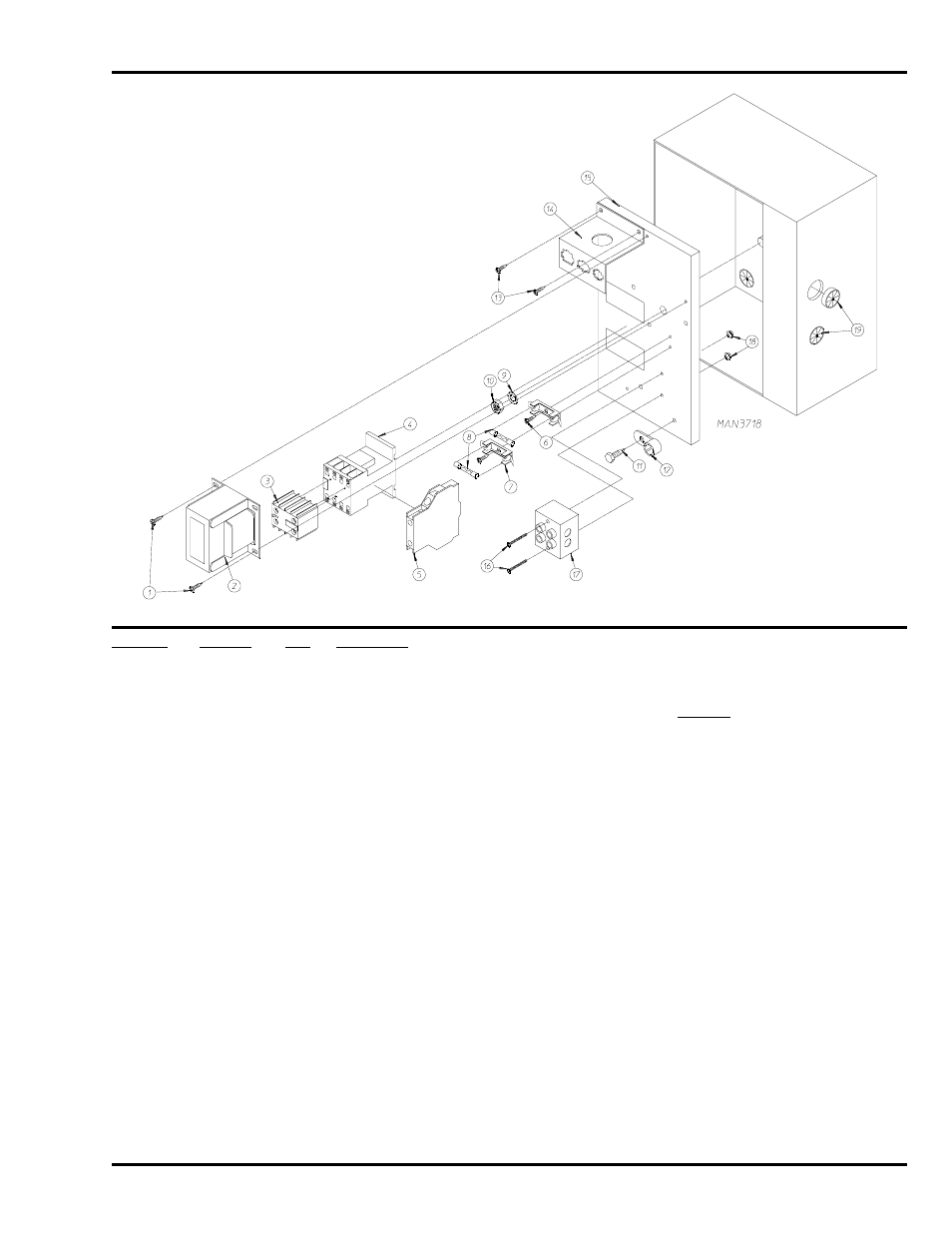

Single-Phase (1ø) Dual Timer Rear Electric Relay Panel Assembly
