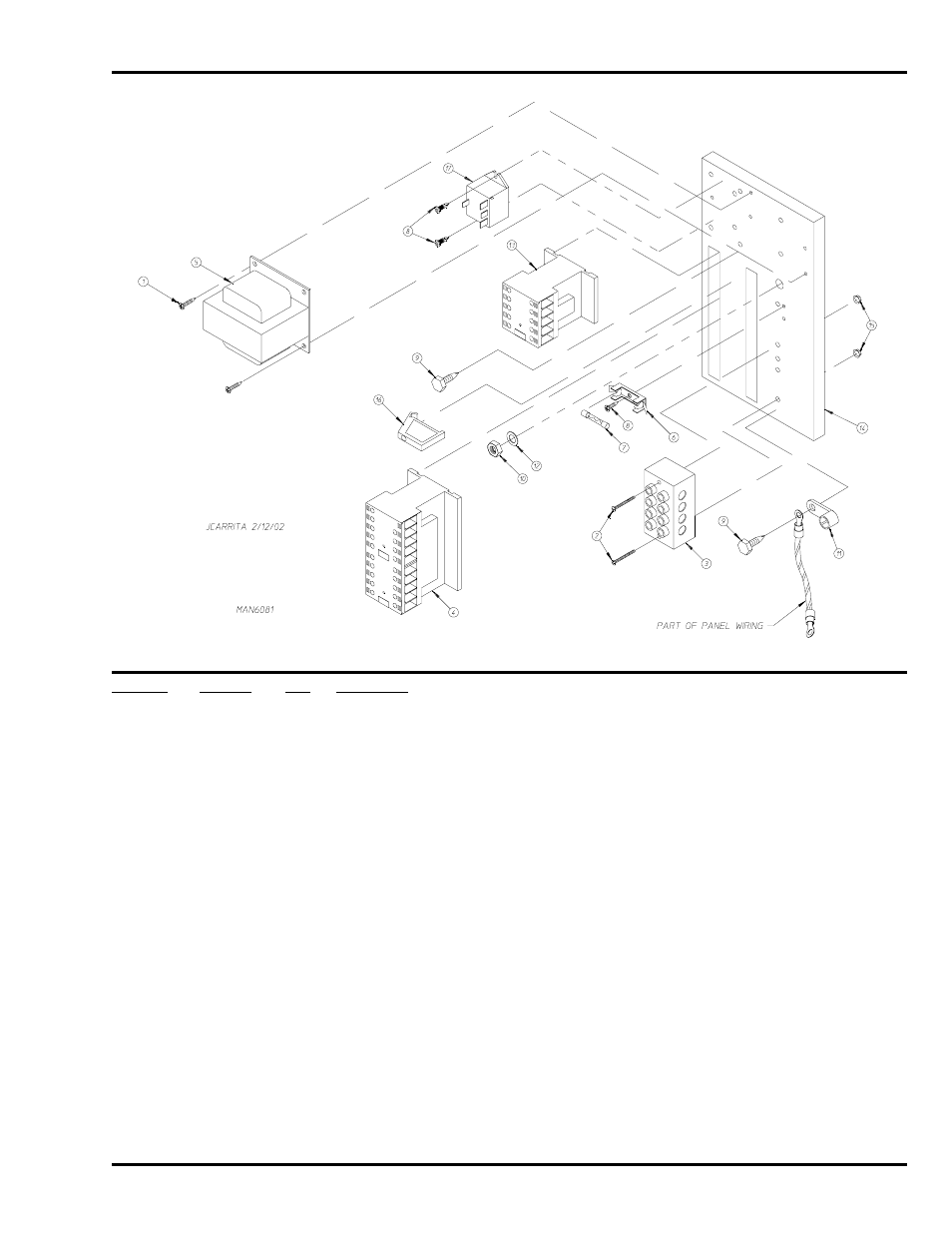

208-240V MP Reversing Rear Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description
1 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
2 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
3 120701 1 4-Position Terminal Block
4 132497 1 3-Pole Reversing Contactor
5 822799 1 Transformer Assembly – 208-240 Volt (for gas and steam models Only)
822792 1 Transformer Assembly – 208-240 Volt (for electric models Only)
6 136008 2 Fuse Holder ONLY
7 136057 2 1/2-Amp (Slo-Blo) Fuse ONLY
8 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 150297 1 #10 x 1/2” Green Hex Washer TEK Screw
10 152004 1 5/16-18 Hex Nut
11 121010 1 L-70 Ground Lug
12 153002 1 5/16” Lock Washer
13 132495 1 3-Pole Contactor
14 322812 1 Rear Electric Mounting Plate ONLY
822771 1 Rear Electric Panel Assembly Complete – 208-240 Volt 3ø (for gas models Only)
(includes illus. nos. 1 through 16)
830167 1 Rear Electric Panel Assembly Complete – 208-240 Volt 3ø (for steam models Only)
(includes illus. nos. 1 through 16)
822789 1 Rear Electric Panel Assembly Complete – 208-240 Volt 3ø (for electric models Only)
(includes illus. nos. 1 through 17)
15 151000 2 #6-32 Pal Nut
16 120765 1 Standard End Bracket
17 131932 1 24V SPST Relay (for electric heated models Only)
