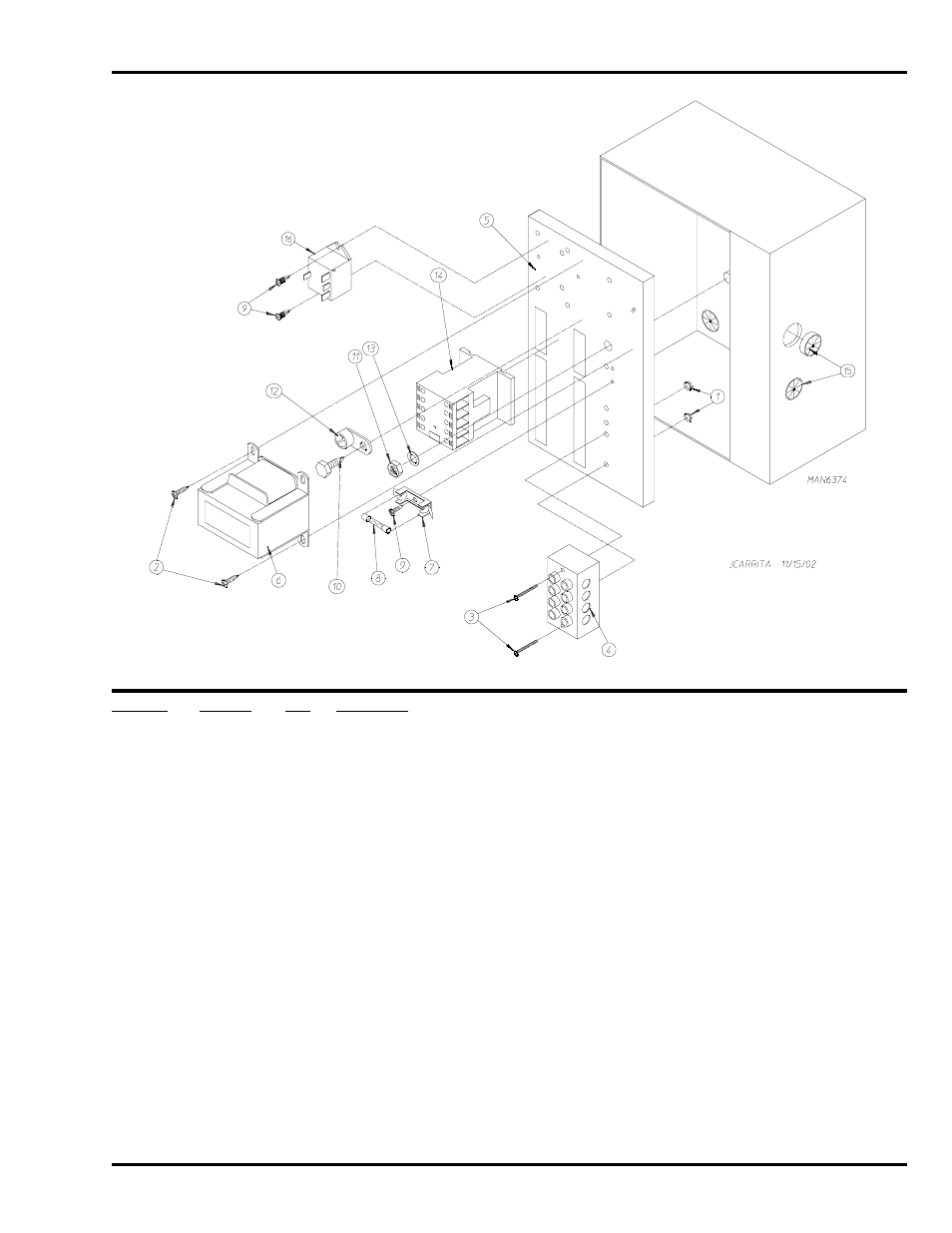

208-240V 3-Phase (3ø) MP Rear Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description
1 151000 2 #6-32 Pal Nut
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
4 120701 1 4-Position Terminal Block
5 322812 1 Rear Electric Mounting Plate ONLY
830154 1 Rear Electric Panel Assembly Complete – 208-240 Volt (for gas models Only)
(includes illus. nos. 1 through 14)
830322 1 Rear Electric Panel Assembly Complete – 208-240 Volt (for steam models Only)
(includes illus. nos. 1 through 14)
830157 1 Rear Electric Panel Assembly Complete – 208-240 Volt (for electric models Only)
(includes illus. nos. 1 through 14 and 16)
6 822799 1 Transformer Assembly (for gas and steam models Only)
822792 1 Transformer Assembly (for electric models Only)
7 136008 2 Fuse Holder ONLY
8 136057 2 1/2-Amp (Slo-Blo) Fuse ONLY
9 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
10 150297 1 #10 x 1/2” Green Hex Washer TEK Screw
11 152004 1 5/16-18 Hex Nut
12 121010 1 L-70 Ground Lug
13 153002 1 5/16” Lock Washer
14 132495 1 3-Pole Contactor
15 121300 3 Open / Closed Bushing
16 131932 1 24V SPST Relay (for electric heated models Only)
