American Dryer Corporation

450564 - 3

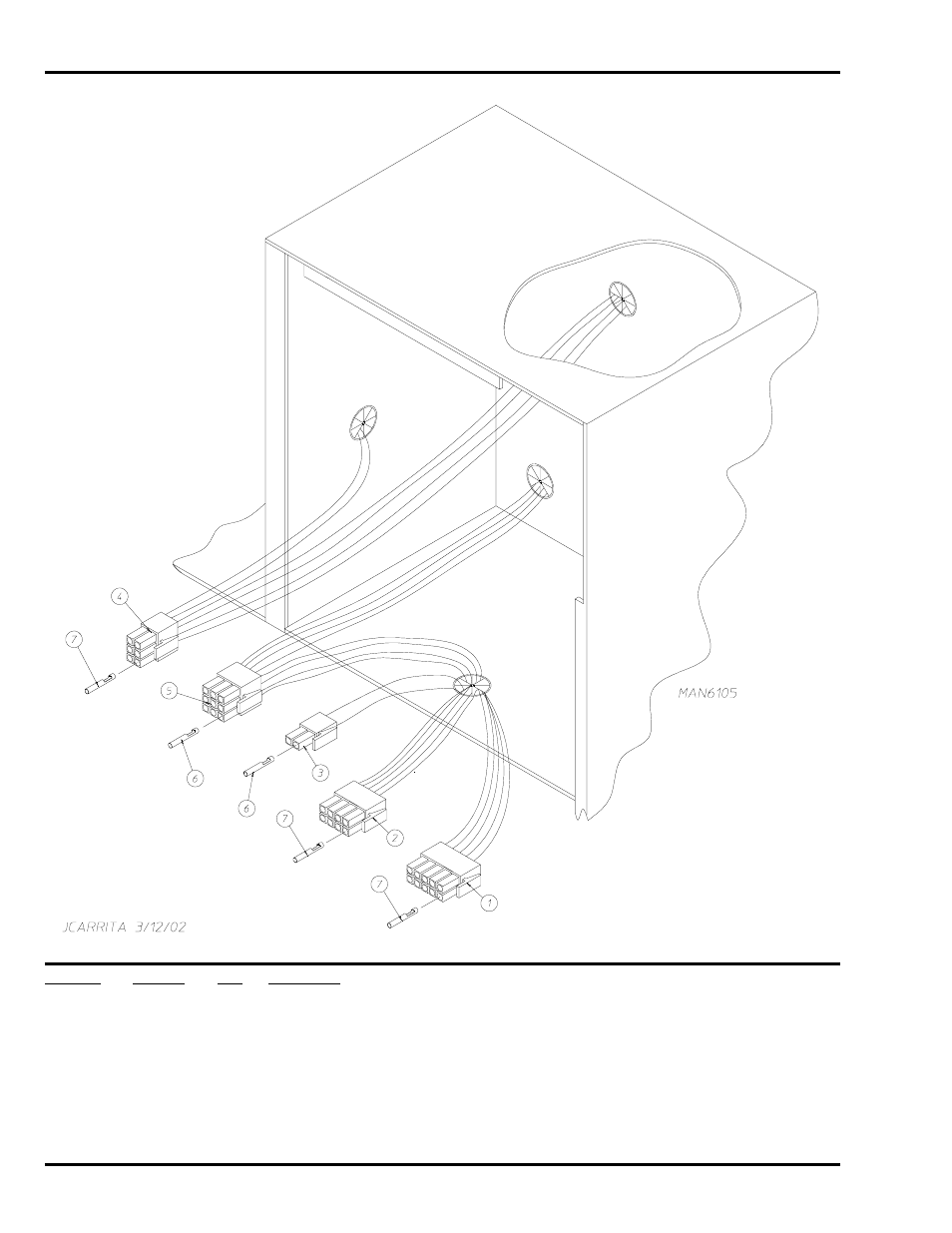

Phase 7 OPL Microprocessor Control Box Assembly

Illus. No.

Part No.

Qty.

Description

1

122681

1

10-Pin Connector

2

122676

1

8-Pin Connector

3

122646

1

2-Pin Connector

4

122683

1

6-Pin Connector

5

122640

1

9-Pin Connector

6

122706

*

#20-16 U.M.N.L. Socket

7

122669

*

Female Crimp Terminal

*

As needed.
