Idler bearing assembly – American Dryer Corp. ML-55 User Manual

Page 30

background image

30

American Dryer Corporation

450564 - 3

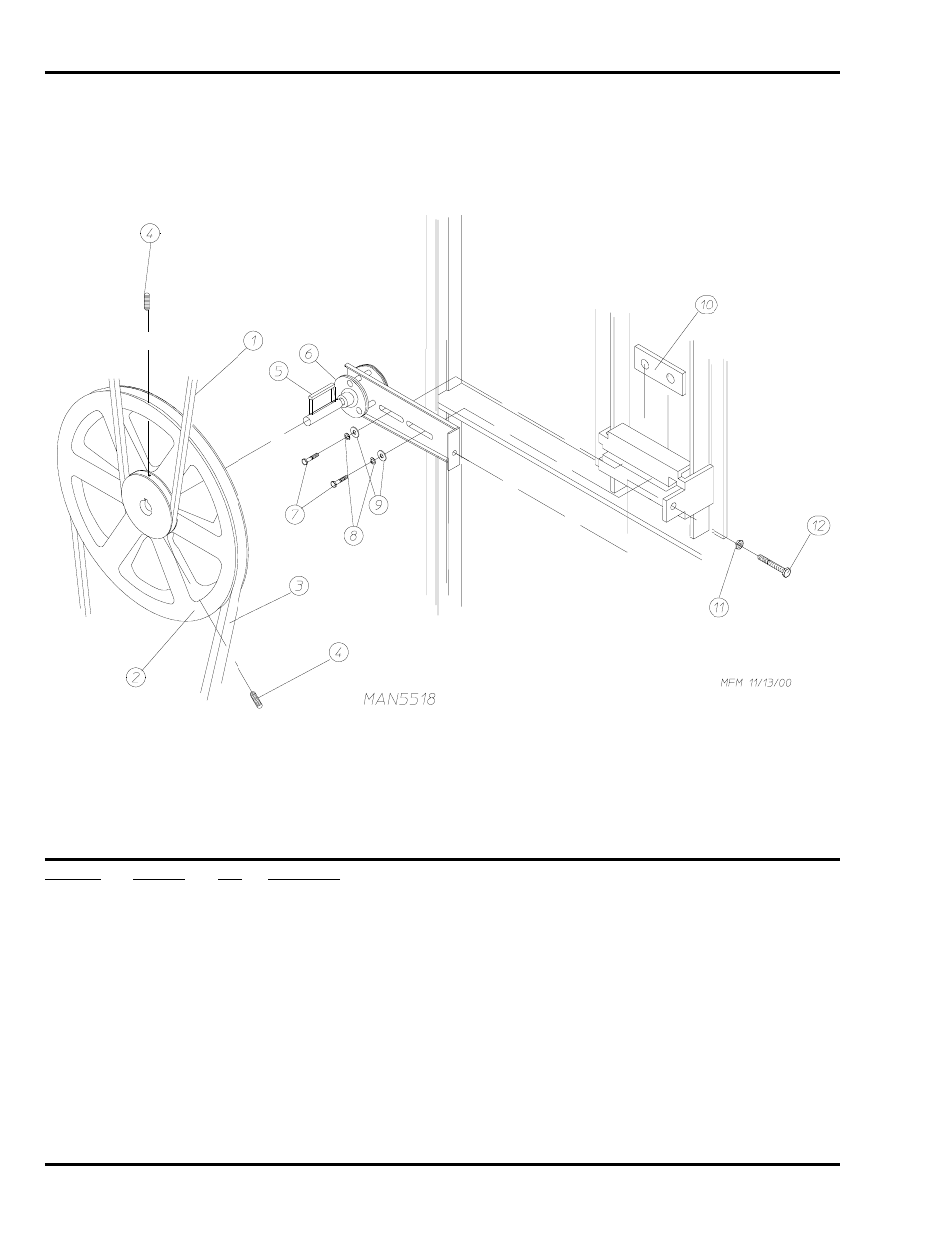

Idler Bearing Assembly

Illus. No.

Part No.

Qty.

Description

1

100108

1

5L-680 V-Belt (non-reversing)

100106

1

5L-690 V-Belt (reversing)

2

101140

1

14” x 3” Compound Pulley

3

100109

1

4L-650 V-Belt (idler to motor) Non-Reversing / Reversing Models

4

154301

2

5/16-18 x 1” Allen Setscrew

5

100705

1

3/16” x 3/16” x 1-3/8” Key

6

882576

1

Idler Bearing Assembly Complete
(includes illus. nos. 5 through 12)

7

150617

2

3/8-16 x 1” Hex Head Machine Bolt

8

153005

2

3/8” Lock Washer

9

153004

2

3/8” Flat Washer

10

801009

1

Idler Square Washer

11

152004

1

5/16-18 Hex Nut

12

150509

1

5/16-18 x 3” Hex Head Machine Bolt
