450564 - 3 www.amdry.com 11

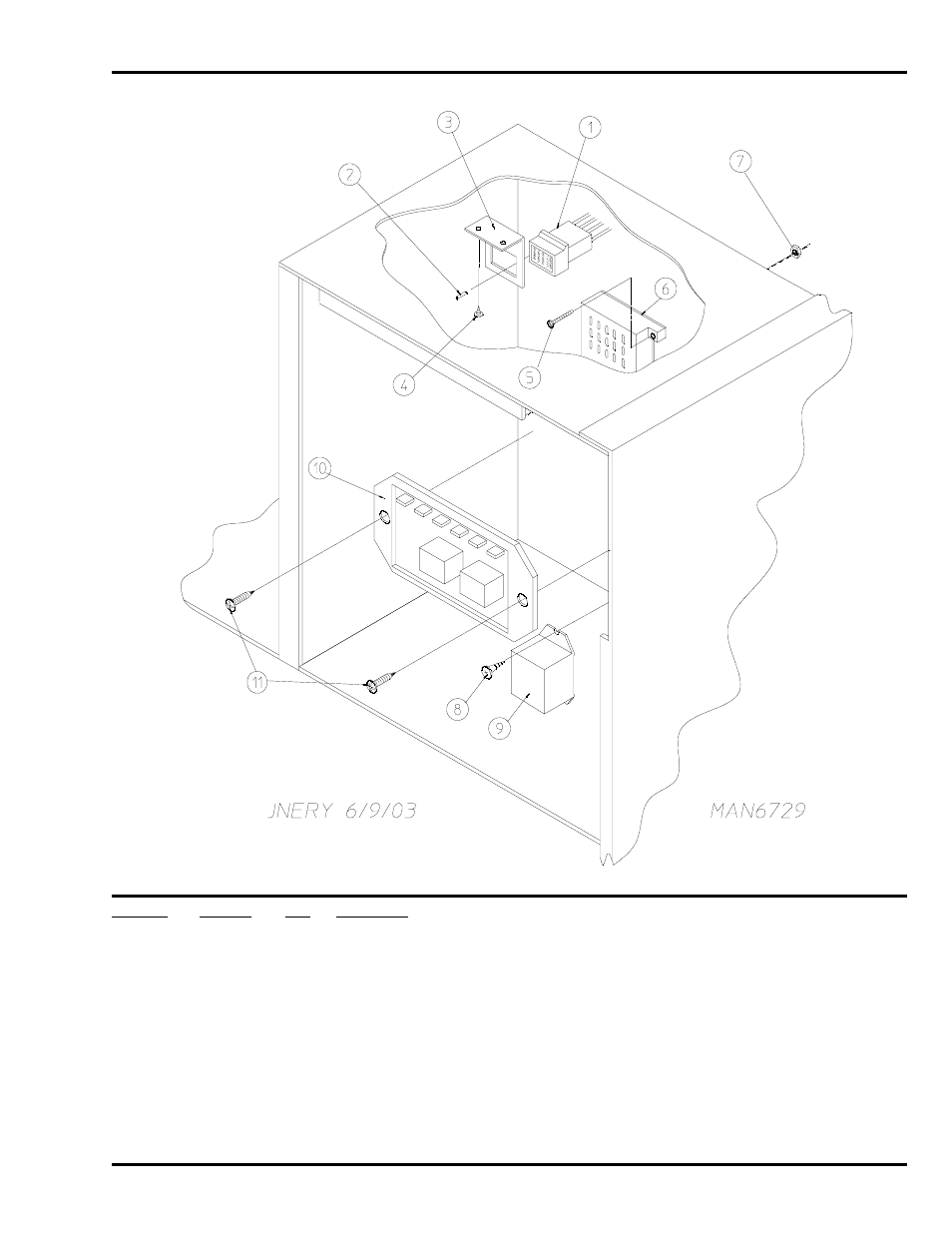

Dual Timer Control Box Assembly
Illus. No. Part No. Qty. Description
1 122601 1 9-Pin Connector
2 122701 8 Socket Terminal ONLY
122801 1 Pin / Socket Extraction Tool
3 315010 1 9-Pin Connector Bracket
4 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
5 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
6 120715 1 30-Position Terminal Block
7 151000 2 #6-32 Pal Nut
8 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
9 131932 1 Heat Relay – 24 VAC (hot surface ignition models Only)
10 884252 1 Reversing Timer (for reversing models Only)
11 150301 1 #8-18 x 7/16” Phillips Pan Head TEK Screw
