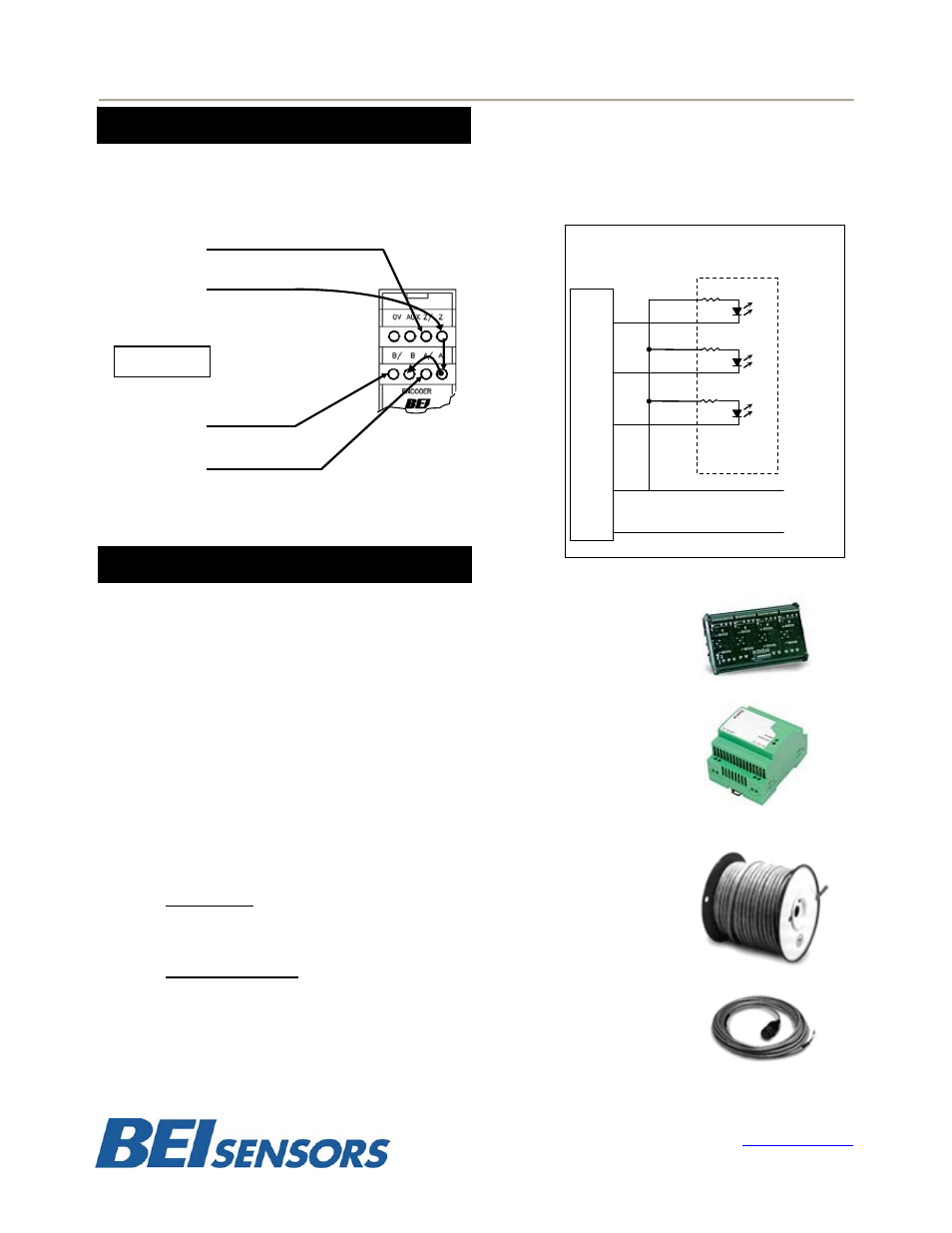

Open Collector with or without Internal Pull-up Resistors
Encoder NPN (sinking) outputs.
Connect encoder output A/ to optical isolator module input A/, B/ to B/ and Z/ to Z/. Connect the A, B, and Z
inputs of the optical isolator to the encoder positive supply. Specify the input logic to the module the same as
the encoder power supply voltage.
Z
ENCODER
B/
A/
Encoder Supply
CONNECTION INSTRUCTIONS #3
Additional Modules and Accessories
ENCODER SIGNAL BROADCASTER MODULE
Accepts standard incremental encoder inputs and can broadcast up to four
encoder signals to four independent devices. Each of the broadcast signals
are optically isolated eliminating ground loops.
POWER SUPPLY
With a wide range of acceptable input voltages (AC and DC) this DIN Rail
mountable power supply is usable in virtually all industrial applications
worldwide. It has built in surge protection to reduce faults due to transients and
it has 100% reserve capacity for startup and overload conditions.
CABLE AND CABLE ASSEMBLIES
Cable reels for your own custom wiring requirements or cable assemblies are
available, using high quality custom BEI standard cable consisting of four, low
capacitance shielded twisted pairs with an overall shield, extra large
conductors for power, and signal ground; all within an abrasion-resistant PVC
jacket.
Cable Reels
100 ft. reel
Part No. 37048-003-100
500 ft. reel
Part No. 37048-003-500
Cable Assemblies
Part Nos. for MS3106F14S-6S Mating Connector
10 ft. # 31186-1410 │ 20 ft. # 31186-1420 │30ft. # 31186-1430
Part Nos. for MS3106F16S-1S Mating Connector
10 ft. # 31186-1610 │ 20 ft. # 31186-1620 │30ft. # 31186-1630
Part Nos. for MS3106F18S-1S Mating Connector
10 ft. # 31186-1810 │ 20 ft. # 31186-1820 │30ft. # 31186-1830
Typical Connections for Each Encoder
A or A/
A
A/
B or B/
B
B/
Z or Z/
Z
Z/
+V
0V
+V
0V
Encoder USB Converter
Encoder Open Collector Output
Figure 3
Connection Diagram
Encoder Supply
