Z
No Connection
Connect A/, B/, Z/ to
Encoder Circuit
Common
ENCODER
B
A
No Connection
Differential Line Driver
Encoder signals from 5 VDC to 24 VDC (must specify the voltage when ordering)
This is the preferred type of encoder output as it has the best noise immunity. Connect each encoder signal to its like USB Converter
input (A to A, A/ to A/, etc).
Single Ended Line Driver
Encoder signal from 5 VDC to 24 VDC (must specify the voltage when ordering)
Connect encoder output A to optical isolator module input channel A, B to B and Z to Z. Connect the A/, B/, and Z/ inputs of the USB
Converter to circuit common of the encoder supply. Single ended operation is limited to shorter cable runs and is more susceptible to
noise.
Z
Z/
No Connection
No Connection
ENCODER
B/
B
A/
A

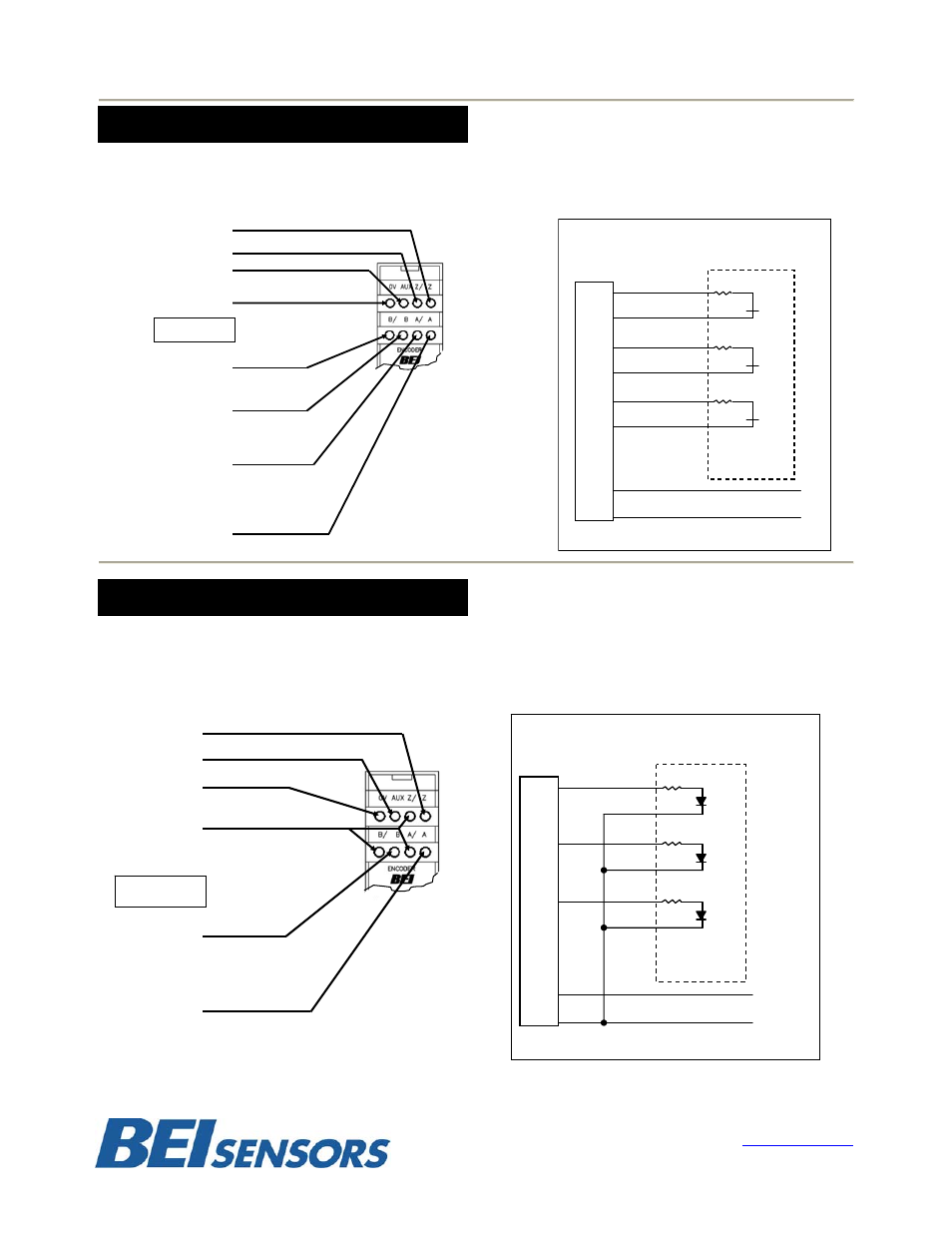

CONNECTION INSTRUCTIONS #2
Typical Connections for Each Encoder
CONNECTION INSTRUCTIONS #1
Typical Connections for Each Encoder
A A
A/
B B
B/
Z Z
Z/
+
0
+
0
Enco rter der USB Conve
Encoder Single Ended Line Driver
Figure 2
Connection Diagram
Single Ended Line
Encoder
Supply
A A
A/ A/
B B
B/ B/
Z Z
Z/ Z/
▼
▼
▼
+V
0V
+V
0V
Encoder USB Converter
Encoder Differential Line Driver Output
Figure 1
Standard Connection to
Encoder USB Converter
