Shown in, Gateway – Avaya 03-300686 User Manual
Page 26
Installing the main distribution frame
26 Installing and Connecting the MDF and Telephones
Cable clamps are required in installations with cable slack managers. At the rear of the media
gateways, install two cable clamps using the screws provided. These clamps hold the 25-pair
input/output or MDF cables in place.
Figure 8: Cable routing through Cable Slack
Manager—example for MCC1 Media Gateway
Figure 9: Cable routing through
Cable Slack Manager—example for SCC1 Media Gateway
on page 27 show cable clamp
placement and cable routing.

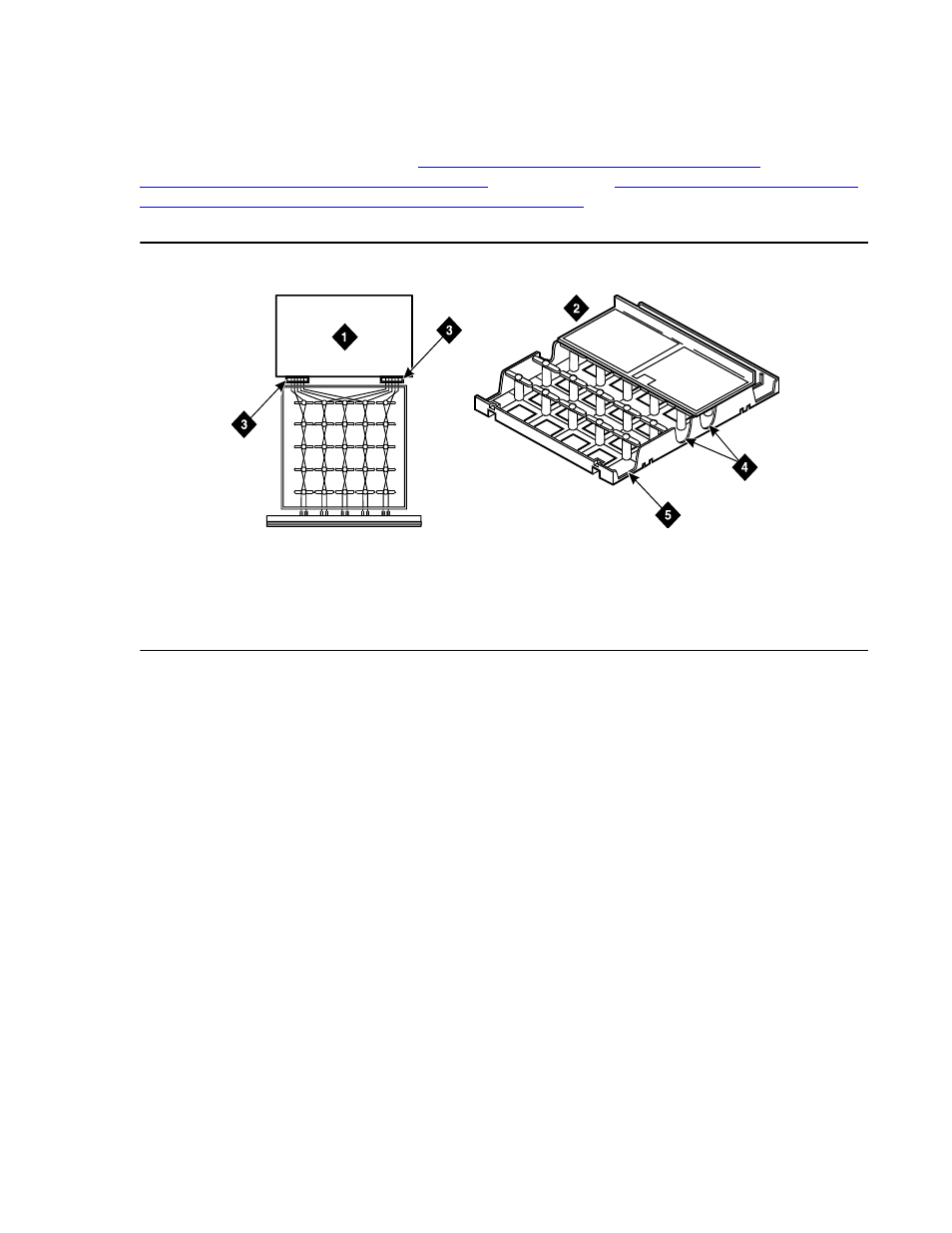

Figure 8: Cable routing through Cable Slack Manager—example for MCC1 Media Gateway
Figure notes:
1. Top of Media Gateway
2. Cable Slack Manager
3. Cable Clamp
4. Spare Center Troughs
5. Media Gateway Trough for
Port Cables
cbdfflr CJL 102396
