Installing the main distribution frame
24 Installing and Connecting the MDF and Telephones
Mounting 110P-type terminal blocks on a frame
The 900-pair 110P-type terminal blocks and the associated patch cord troughs can also be
mounted on a free-standing, floor-mounted 1110A2 Apparatus Mounting Frame. See
Figure 7: 1110A2 and 1110C1 apparatus mountings on page 24.
Each 1110A2 provides the space to mount five terminal blocks/patch cord troughs on each side
of the frame. A cable support structure, apparatus mounting 1110C1, mounts directly on top of
the 1110A2 and provides support for all cables routed to and from the frame. See
Table 1: Apparatus mounting frame ordering information on page 25.

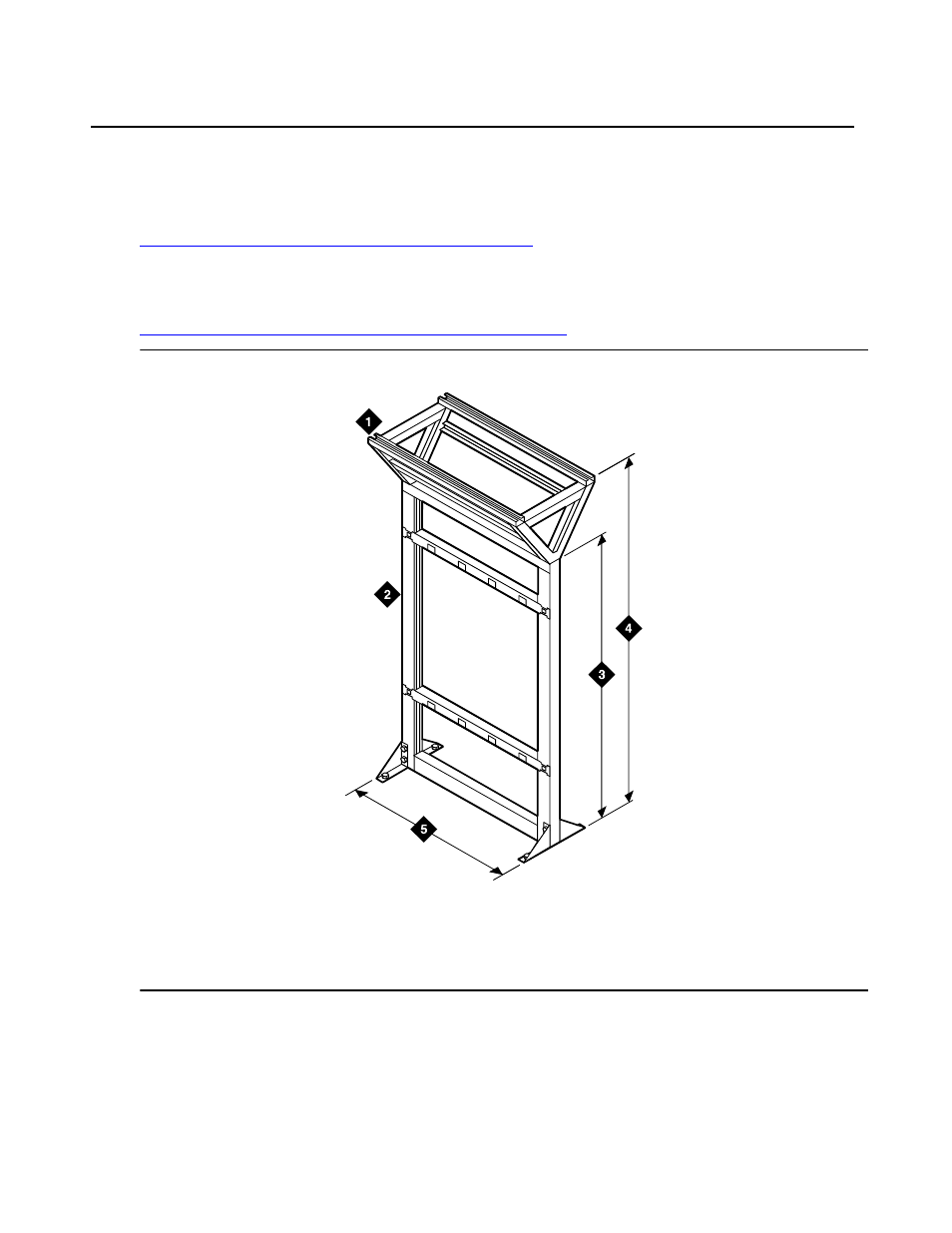

Figure 7: 1110A2 and 1110C1 apparatus mountings
Figure notes:
1. 1110C1 Apparatus Mounting
2. 1110A2 Apparatus Mounting
3. 76 inches (193 centimeters) 4. 88.5 inches (225 centimeters)
5. 43.5 inches (110.5 centimeters)
r781401 LJK 040896
