Main distribution frame placement
Issue 3 January 2008 19
Main distribution frame placement
The preferred location of the MDF is directly behind the media gateways.
Figure 3: Typical 110A-type terminal blocks (G650 Media Gateway) shows a typical installation
using 110A-type terminal blocks.

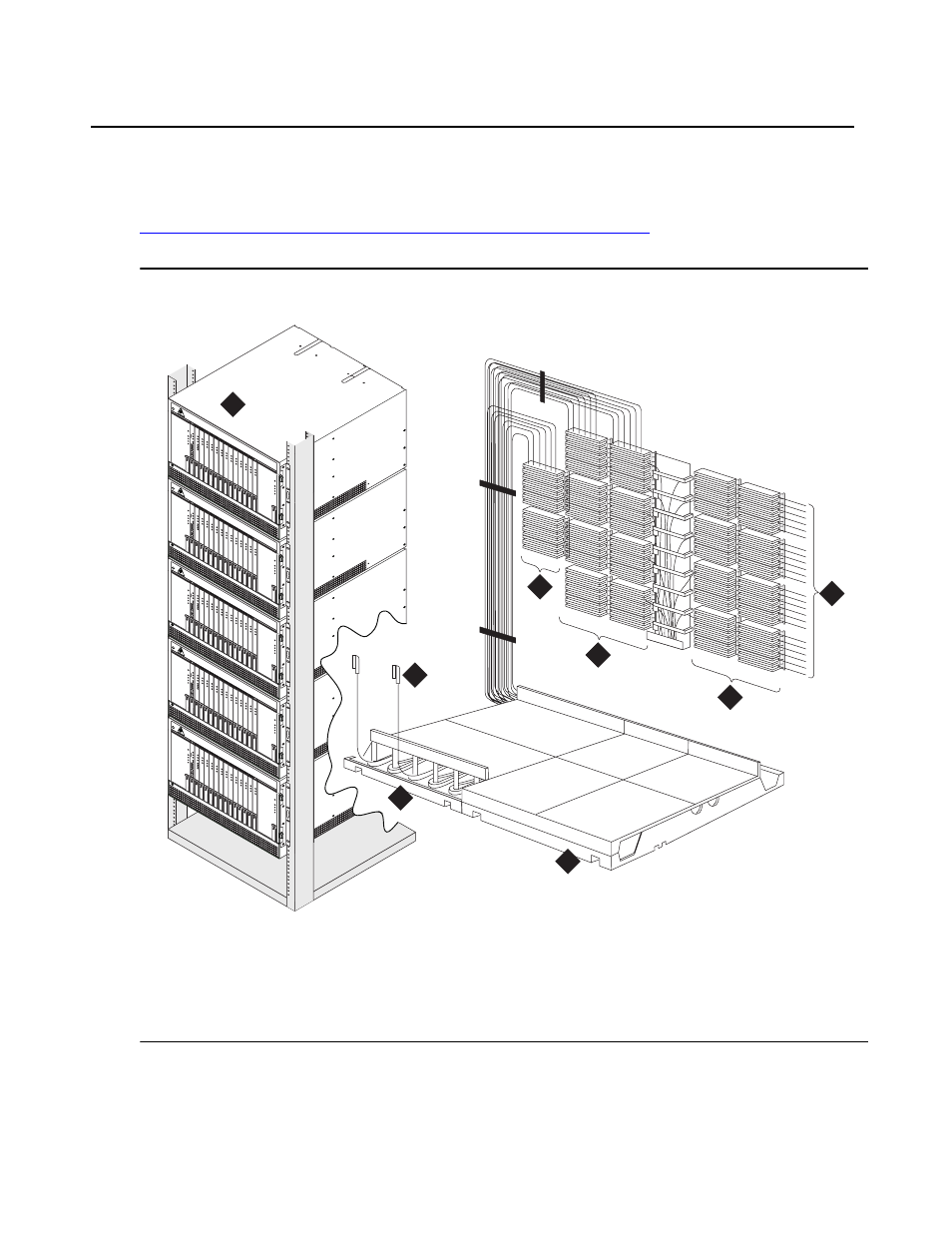

Figure 3: Typical 110A-type terminal blocks (G650 Media Gateway)
Figure notes:
1. G600 Media Gateways in rack
2. Z113A Cable Slack Manager
3. 25-Pair Cable to Media Gateway
4. Station Cables 5. Station Distribution Field
6. Port Distribution Field
7. Trunk/Auxiliary Field
