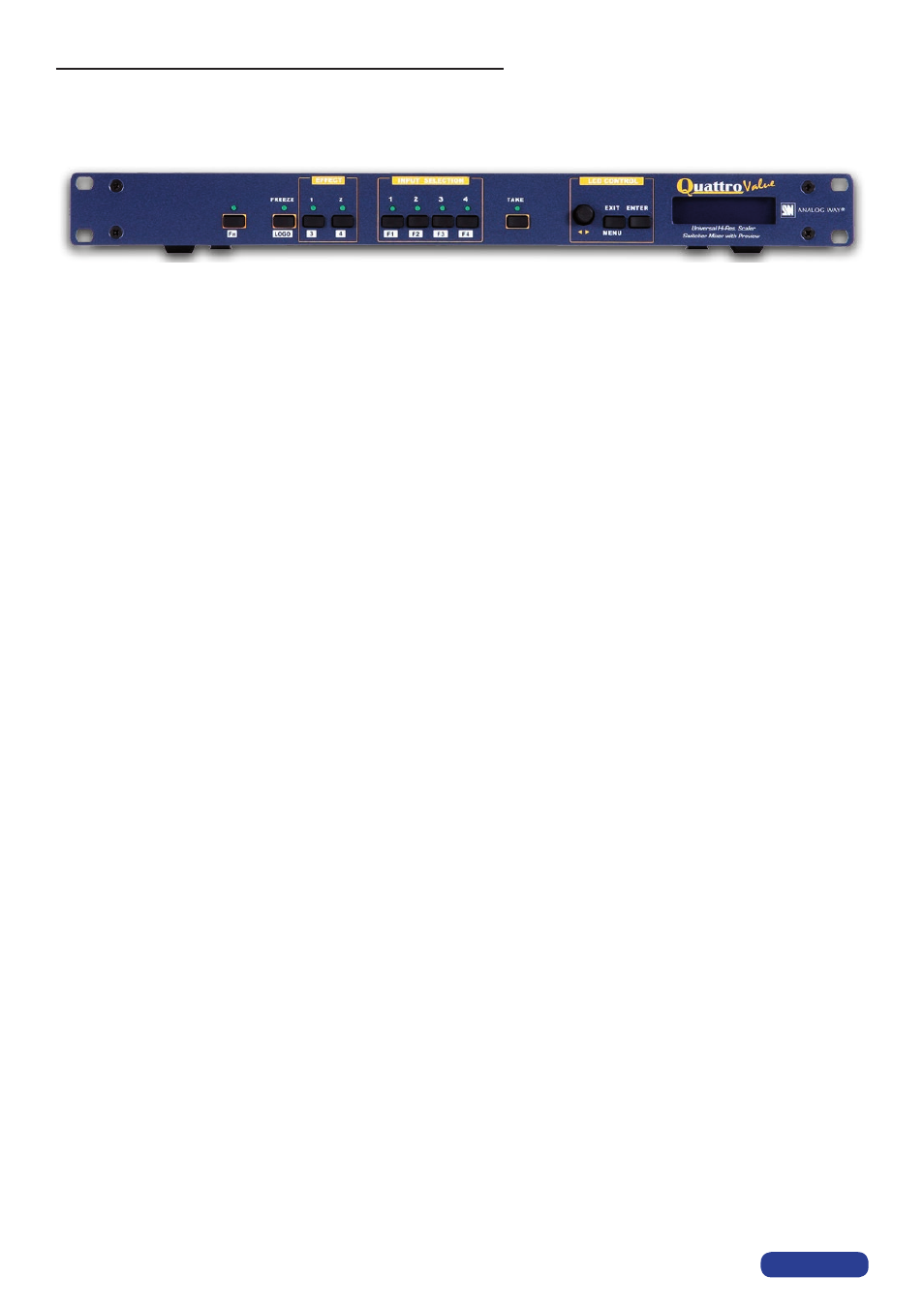

1-5. FRONT PANEL DESCRIPTION OF THE QUATTRO VALUE
Fn : Secondary function selection button.
FREEZE : Freeze the main output (the blinking LED indicates the FREEZE is active).
LOGO : Allows to display logo onto the Main output.
NOTE : Logo display can be used by first pressing Fn.
EFFECT : Selection of the 4 EFFECT PRESET.
NOTE : Effect preset #3 & 4 can be used by first pressing Fn.
INPUT SELECTION :
• Selection of the 4 input sources : 1 to 4.
• Selection of the 4 frames : F1 to F4.
NOTE : - Frame selection can be used only when Fn is activate (LED blinking quickly).
- The pre-selected source (LED blinking slowly) is displayed onto the PREVIEW output.
- The pre-selected frame (LED blinking quickly) is displayed onto the PREVIEW output.
- The source/frame displayed onto the MAIN output is indicate by a turn ON LED.
• A long push (1 second) on the selected/preselected input button allows to active the BLACK function.
A black screen is displayed onto the corresponding output. A short push on the same button allows to
inactive this function.
TAKE : Allows to display the pre-selected source onto the Main output with the selected effect.
CONTROL Allows to scroll thru the different menus (in Control mode).
◄►
EXIT – MENU : Switches between Status and Control mode.
ENTER : Validates a selected item.
