29 IOM-DPT-A: FEB 2014
przewody
Rys. 4

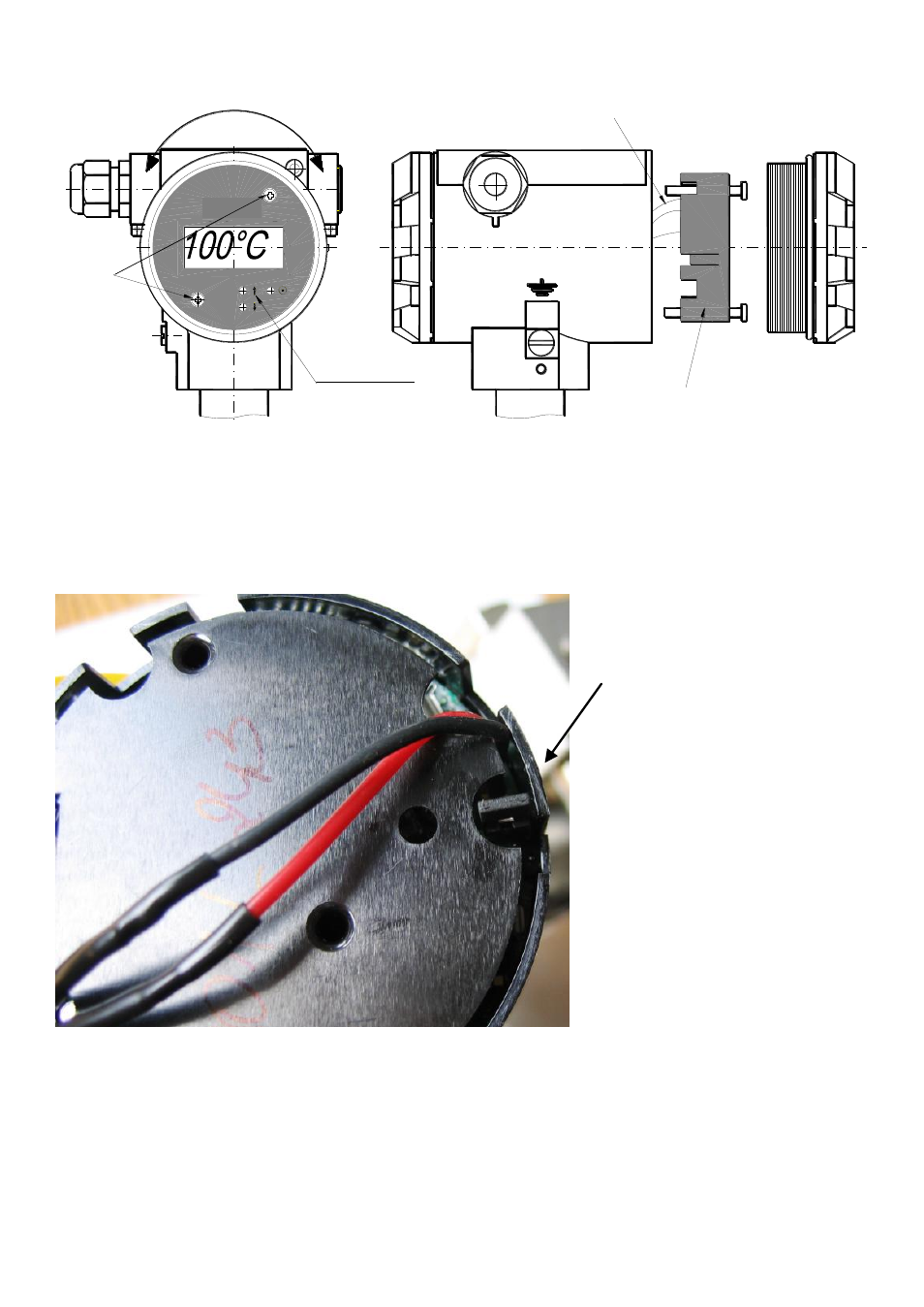

Fig.4. DPT... display rotation possibility, configuration buttons.
Fig.5. Back lighting jumper view at transmitter electric board (unit display back side)
Jumper in radial position
(as at photo)
–back lighting off;
jumper in circular
position
–back lighting on.
Move the electronic unit from transmitter casing, take up
the upper part of the casing with display from the catch
and revolve its to left or to right to the display setting at
needed position.
Rotation possibility ±180
0
with 90° pitch.
Screw on the display unit screws and display cover
unscrew the
display cover
and casing
display screws
±180
o
with 90
0 pitch
Configuration
buttons
wires
