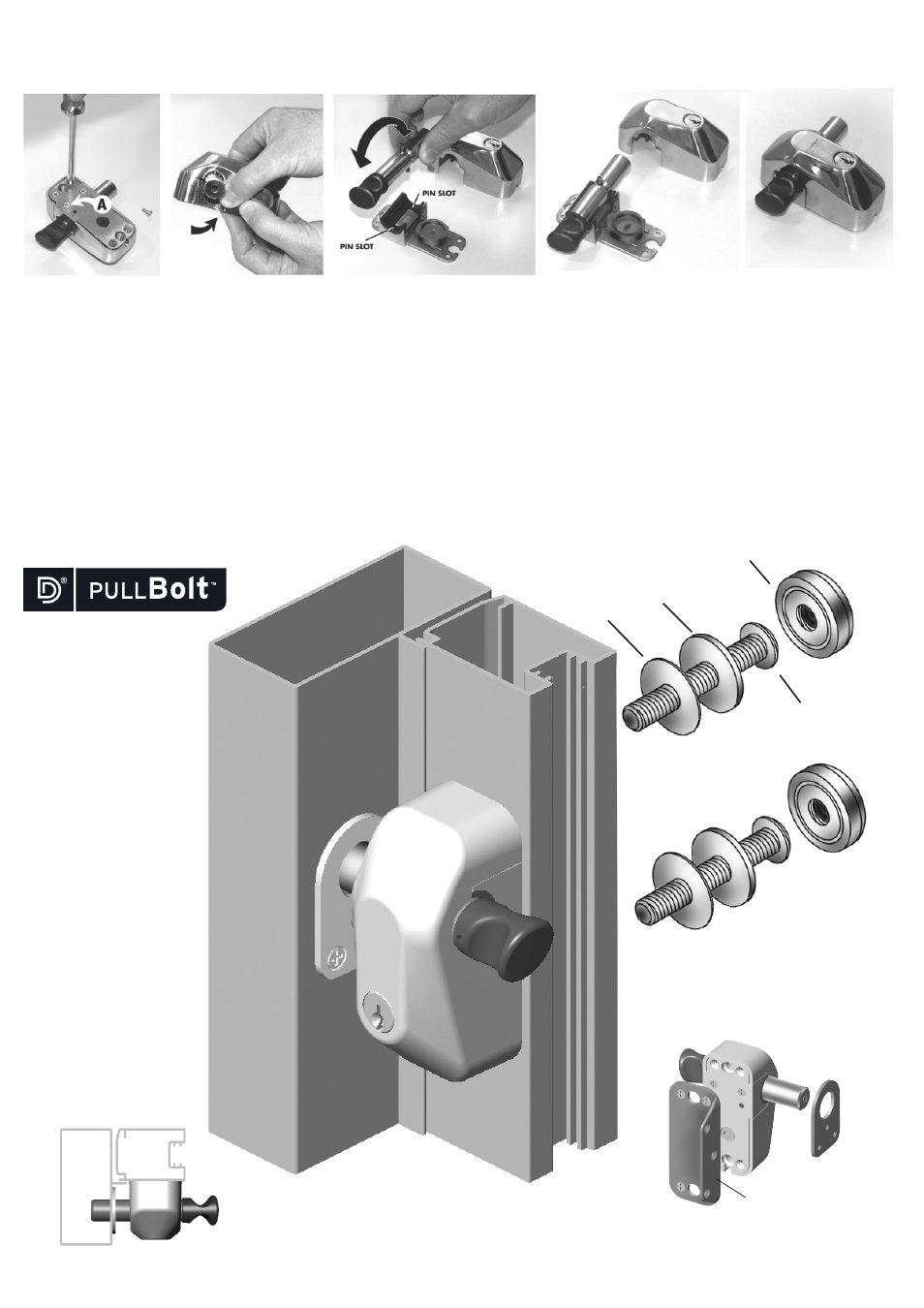

Changing from left- to right-hand fitting
1. Remove the key and
place the Lock Body
face down. Remove
the four corner screws
but DO NOT REMOVE
the two center screws
(shown at A).
2. Pick up the Lock Body
with both hands, being
careful to hold together
the front and back covers
(to prevent internal compo-
nents moving). Turn over
the Lock Body and place
down on a flat surface.
3. Lift the front cover and
place to one side. Lift the
bolt and flip it over as
shown, and place it back in
the cradle so that the pin
fits into the slot - either of
the two slots will work.
4. Replace the front cover and
re-fit the four screws.
DO NOT use power screwdrivers;
use hand tools.
Optional: Fixing Leg
Available separately
Inside door
screw head dressing
Standard
Optional: Blind Covers
Available separately
Side-Mount model
Plastic washer
Steel washer
Top view: Side-Mount model
