D&D Technologies PullBolt lock - Face Mounting - Manual

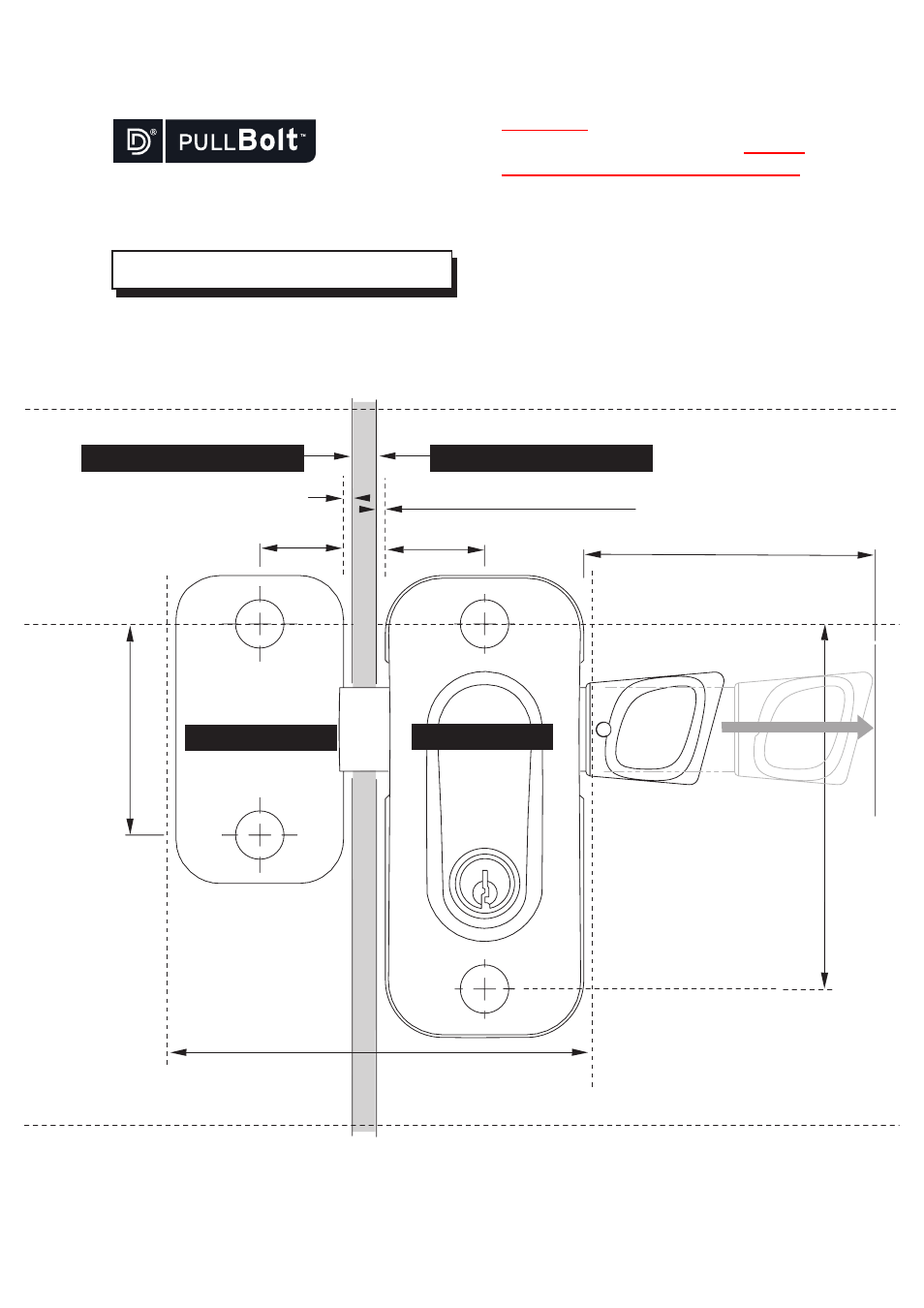

DRILLING TEMPLATE
PULLBOLT FACE-MOUNT MODEL
2mm (3/32") MAX. CLEARANCE 2mm (3/32") MAX.
Allow 75mm (3") CLEARANCE
FOR HANDLE
DISTANCE BETWEEN DOOR FRAMES WILL VARY BUT SHOULD NOT EXCEED 9mm (3/8")
48mm (1.7/8")
83mm (3.1/4")
19mm (3/4")
22.5mm (7/8")
GAP max. 2–9mm (3/32–11/32")
Align to edge of door frames for hole
alignment on reverse side.
B C
A
DOOR/FRAME EDGE
LOCK BODY KEEPER
A
DOOR/FRAME EDGE
D D
(fold)
E E
(fold)
PULLB000027PA •Instr_D&DPullBolt_FM (20/6/05)
IMPORTANT: If printing these Instructions from
an electronic file (e.g. website download), be sure to
check that dimensions shown here measure correctly,
as differences in print-outs may result in inaccurate
template holes.
