Installation Instructions KSA-1022
9

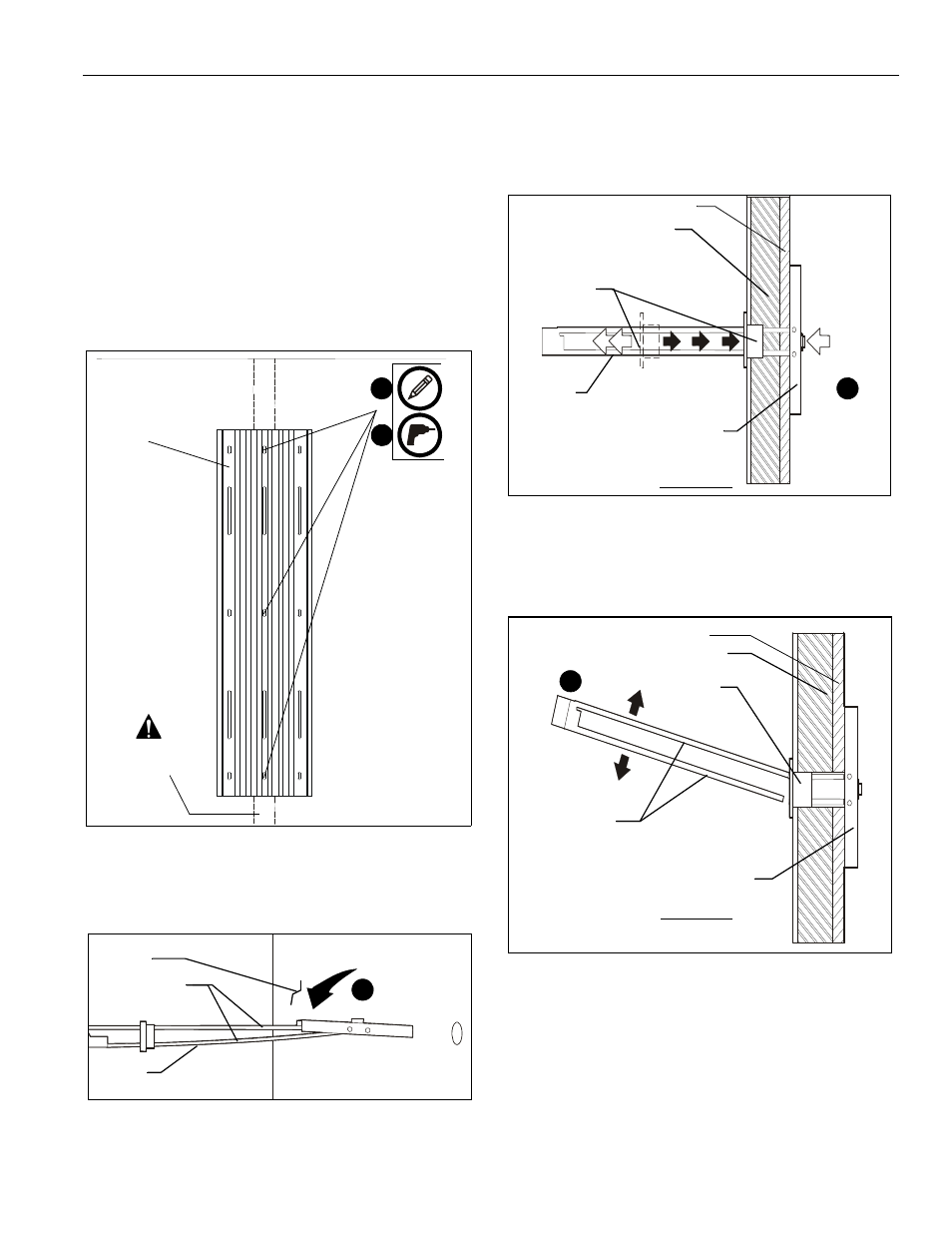

Vertical Installation using Steel Studs
After determining the site meets the installation requirements:
1. Identify desired mounting location on wall.
2. Using a stud finder or similar method locate stud.
3. Align the middle mounting holes on mount with stud making
sure mounting holes are centered on stud. (See Figure 10)
4. Using wall track accessory (A) as a template, mark location
of three mounting holes on wall. (See Figure 10)
Figure 10
5. Drill three 1/2" holes in locations marked in Step 4.
6. Hold metal channel on anchor (C) flat alongside plastic
straps and slide channel through hole. (See Figure 11)
Figure 11
7. Holding plastic straps on anchor (C), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
12)
8. Slide plastic cap on anchor (C) towards wall until flange of
cap is flush with wall. (See Figure 12)
Figure 12
9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 13)
10. Repeat steps 6 through 9 for each mounting hole.
Figure 13
11. Place wall track accessory over anchors and align mounting
holes in display mount with holes in anchors. (See Figure
13)
12. Insert 1/4-20 x 1 3/4" Phillips pan head screws (D) through
corresponding mounting hole on wall track accessory and
into anchor (C) and tighten until flush against mount. DO
NOT overtighten! (See Figure 14)
13. Repeat steps 11 through 12 for remaining 2 mounting holes.
3
4
X 3
X 3
Mounting holes
centered on stud
(A)
(C) x 3
Drywall
Plastic Straps
6
(C) x 3
Plastic Cap
Drywall
Anchor Metal Channel
SIDE VIEW
8
Steel Stud
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
9
Steel Stud
