KSA-1022
Installation Instructions
8
Site Requirements for Steel Studs
WARNING:
IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY

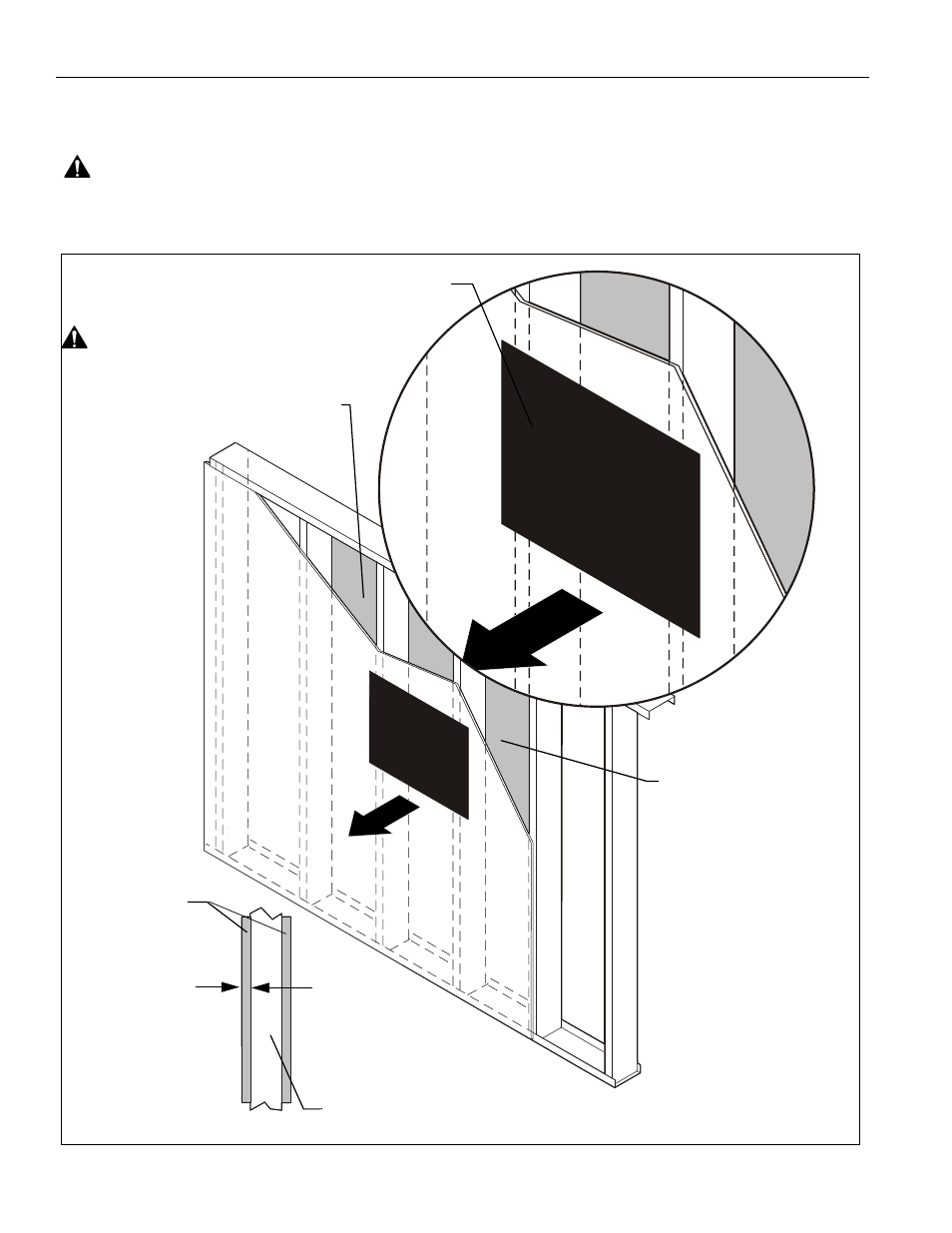

OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum reguirements for installation of display mounts onto a
steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific
instructions before attempting installation. It should also be noted that no other equipment should be mounted to the same stud.
There must be a minimum of
1 7/8" (48mm) clearance
to a minimum of one stud left and right of the stud(s)
Stud type and structural strength must conform to the North American
Drywall
**1/2" minimum
Drywall Thickness
Only 16" Studs may be used for Triple Studs.
FRONT
(Must be centered on stud)
inside wall
16", 20" or 24" Studs may be used for Single or Dual Studs (shown)
If back side of wall is unfinished, drywall must be installed
being used to install the mount. Drywall must be
secured to studs with screws 12" on center
Steel Stud (2 x 4 / 25ga minimum)
Specification for the Design of Cold-Formed Steel Structural Members.
[362 S 125 18, C-Shaped, S-Stud Section]
**See hazard statement
on page 2!
