KSA-1022 Installation Instructions
6

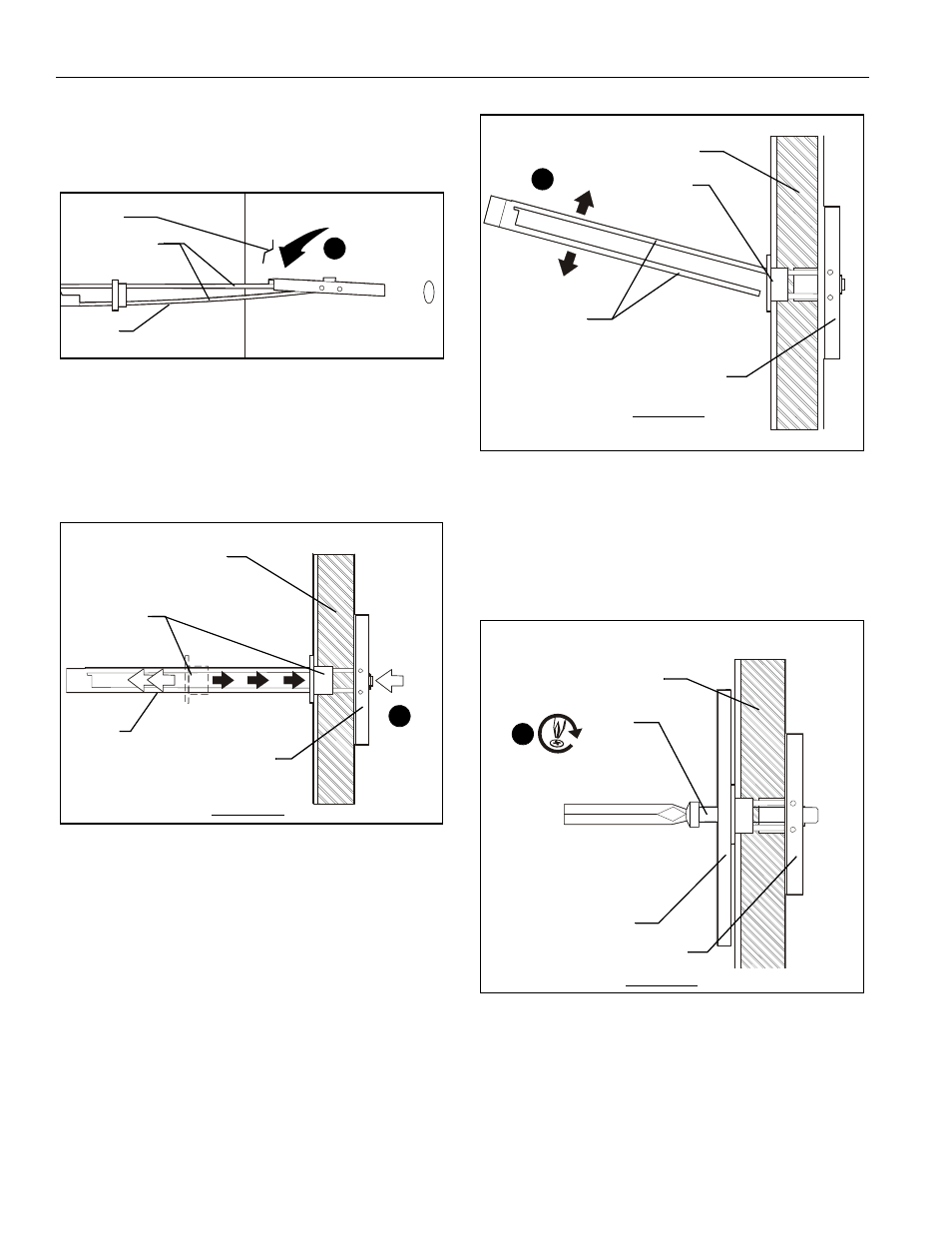

2. Drill six 1/2" holes at locations marked in Step 1. (See
Figure 3)
3. Hold metal channel on anchor (C) flat alongside plastic
straps and slide channel through hole. (See Figure 4)
Figure 4
4. Holding plastic straps on anchor (C), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
5)
5. Slide plastic cap on anchor (C) towards wall until flange of
cap is flush with wall. (See Figure 5)
Figure 5
6. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 6)
7. Repeat steps 3 through 6 for each mounting hole.
Figure 6
8. Place wall track accessory over anchors and align mounting
holes in display mount with holes in anchors. (See Figure 6)
9. Insert 1/4-20 x 1 3/4" Phillips pan head screws (D) through
corresponding mounting hole on wall track accessory and
into anchor (C) and tighten until flush against mount. DO
NOT overtighten! (See Figure 7)
10. Repeat steps 8 through 9 for remaining 5 mounting holes.
Figure 7
(C) x 6
Drywall
Plastic Straps
3
Plastic Cap
Drywall
Anchor Metal Channel
SIDE VIEW
(C) x 6
5
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
6
Drywall
Anchor Metal Channel
Wall Track Accessory
SIDE VIEW
(D) x 6
9
