KSA-1022 Installation Instructions
10
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Overtightening of
mounting hardware can damage the steel studs. DO NOT
overtighten mounting hardware!

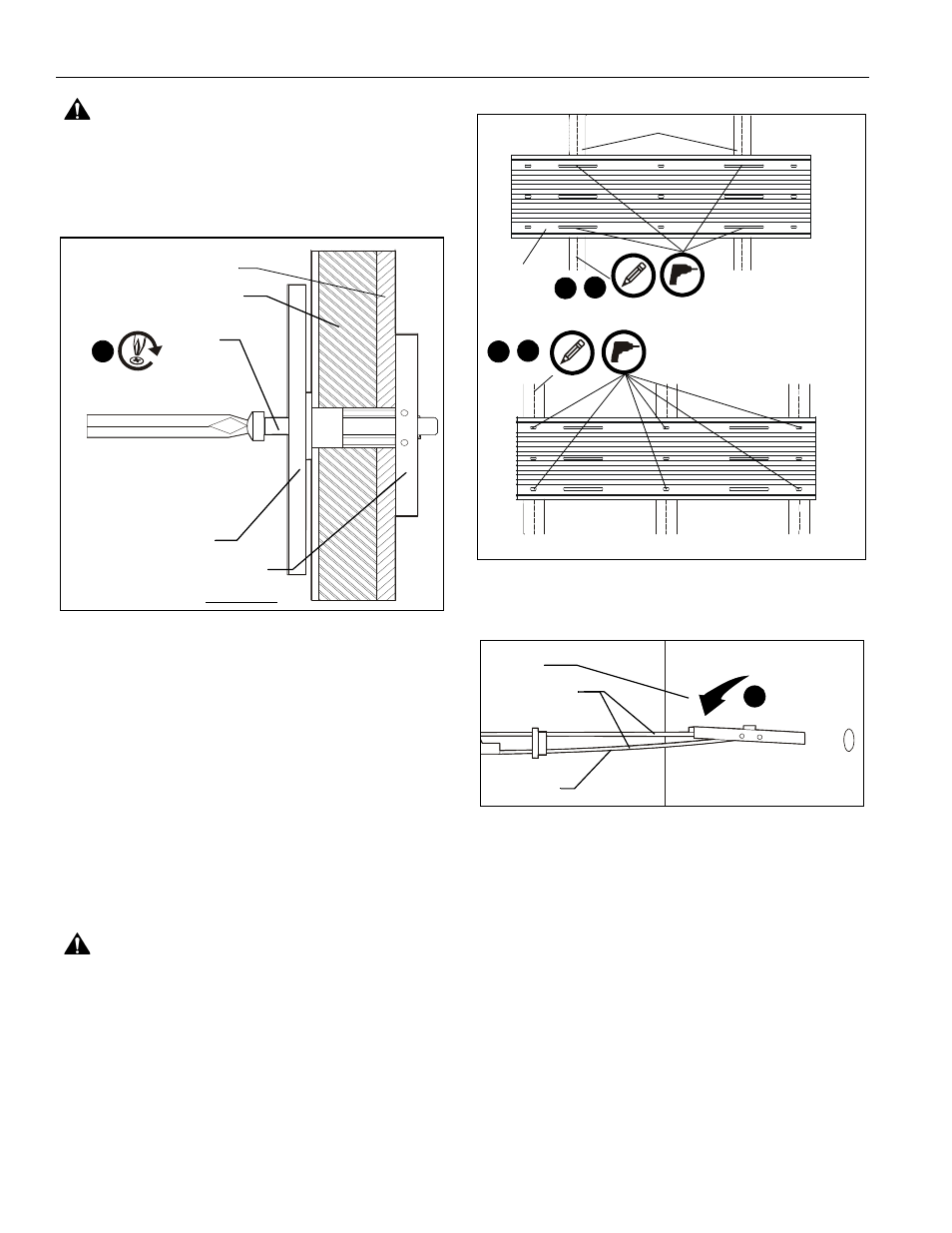

Figure 14
Horizontal Installation Using Steel Studs
NOTE: Wall track accessory may be mounted horizontally to
two studs that are 16", 20" or 24" apart or to three studs
that are 16" apart.
After determining the site meets the installation requirements:
1. Identify desired mounting location on wall.
2. Use a stud finder or similar method to determine location of
studs.
3. Draw a vertical line down the center of the studs to be used.
(See Figure 8)
4. Using wall track accessory (A) as a template, mark location
of three mounting holes on wall. Make sure wall track
accessory is level. (See Figure 8)
WARNING: Only long holes may be used to mount device
on dual studs. DO NOT mount device using the small holes
unless mounting on three studs.
5. Drill 1/2" holes at each marked location. (See Figure 8)
Figure 15
6. Hold metal channel on anchor (D) flat alongside plastic
straps and slide channel through hole. (See Figure 16)
Figure 16
7. Holding plastic straps on anchor (C), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
17)
8. Slide plastic cap on anchor (C) towards wall until flange of
cap is flush with wall. (See Figure 17)
Drywall
Anchor Metal Channel
Wall Track Accessory
SIDE VIEW
(D) x 3
9
Steel Stud
4
(Dual Studs)
(Triple Studs)
(A)
studs
x 4
x 6
5
4 5
(C) x 4 or 6
Drywall
Plastic Straps
6
