Installation Instructions
KSA-1022
7
Horizontal Installation using Wood Studs
NOTE:
Wall track accessory may be mounted horizontally to
two studs that are 16", 20" or 24" apart or to three studs
that are 16" apart.
1.
Use a stud finder or similar method to determine location of
studs.
2.
Draw a vertical line down the center of the studs to be used.
(See Figure 8)
3.
Remove cable management flaps from wall track accessory
to expose holes to be used for installation.
4.
Using wall track accessory (A) as a template, mark location
of three mounting holes on wall. Make sure wall track
accessory is level. (See Figure 8)
WARNING:
Only long holes may be used to mount device
on dual studs. DO NOT mount device using the small holes
unless mounting on three studs.

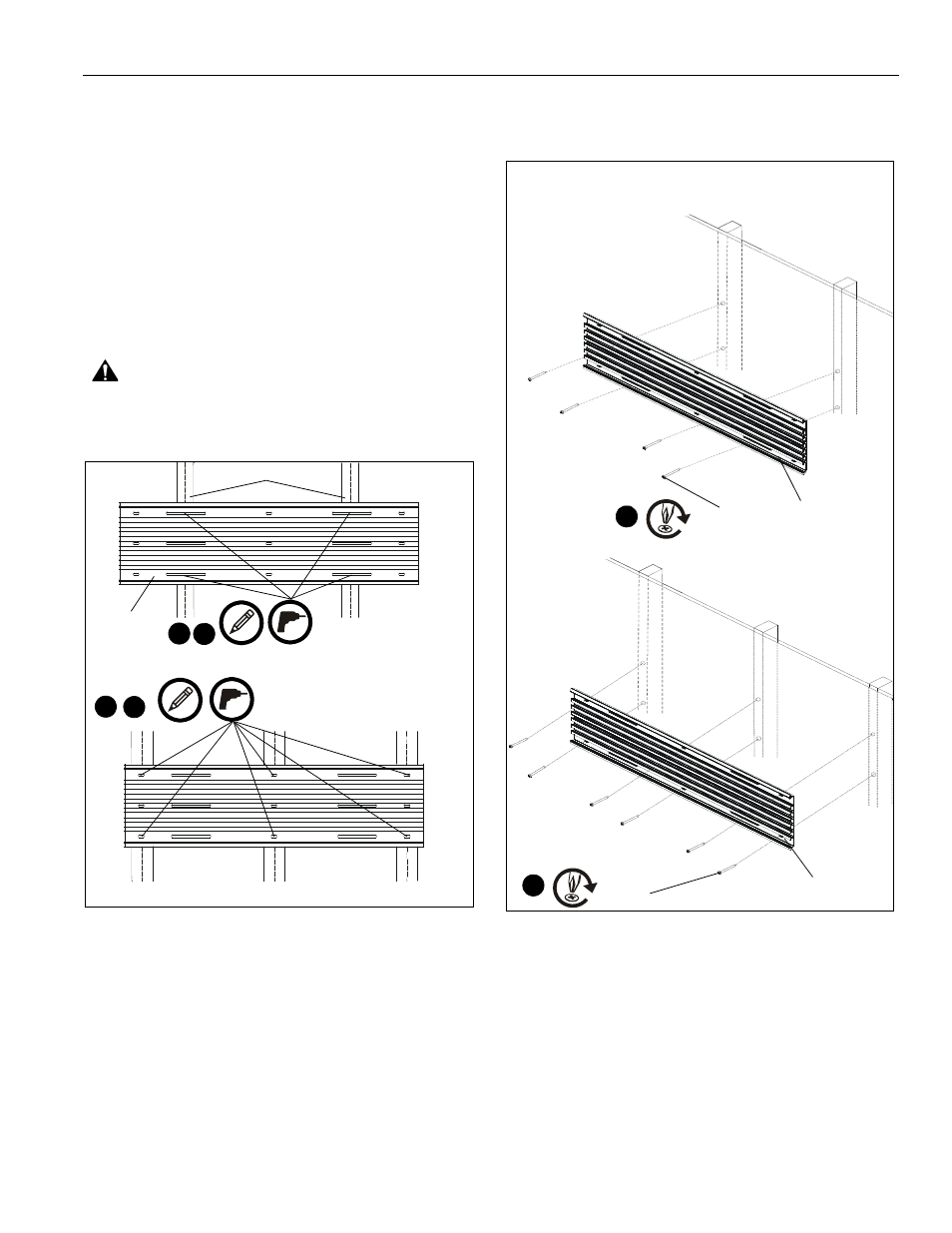

Figure 8
5.
Drill 7/64" holes at each marked location. (See Figure 8)
6.
Install four (two studs) or six (three studs) #12 x 2 1/2" round
pan wood screws (F) through wall accessory holes into the
holes drilled in Step 4. (See Figure 9)
Figure 9
(Dual Studs)
(Triple Studs)
(A)
studs
x 4
x 6
3
2
2
3
(Dual studs)
(Triple studs)
(F) X 4
(F) X 6
(A)
5
5
(A)
