Installation Instructions KSA-1022
11

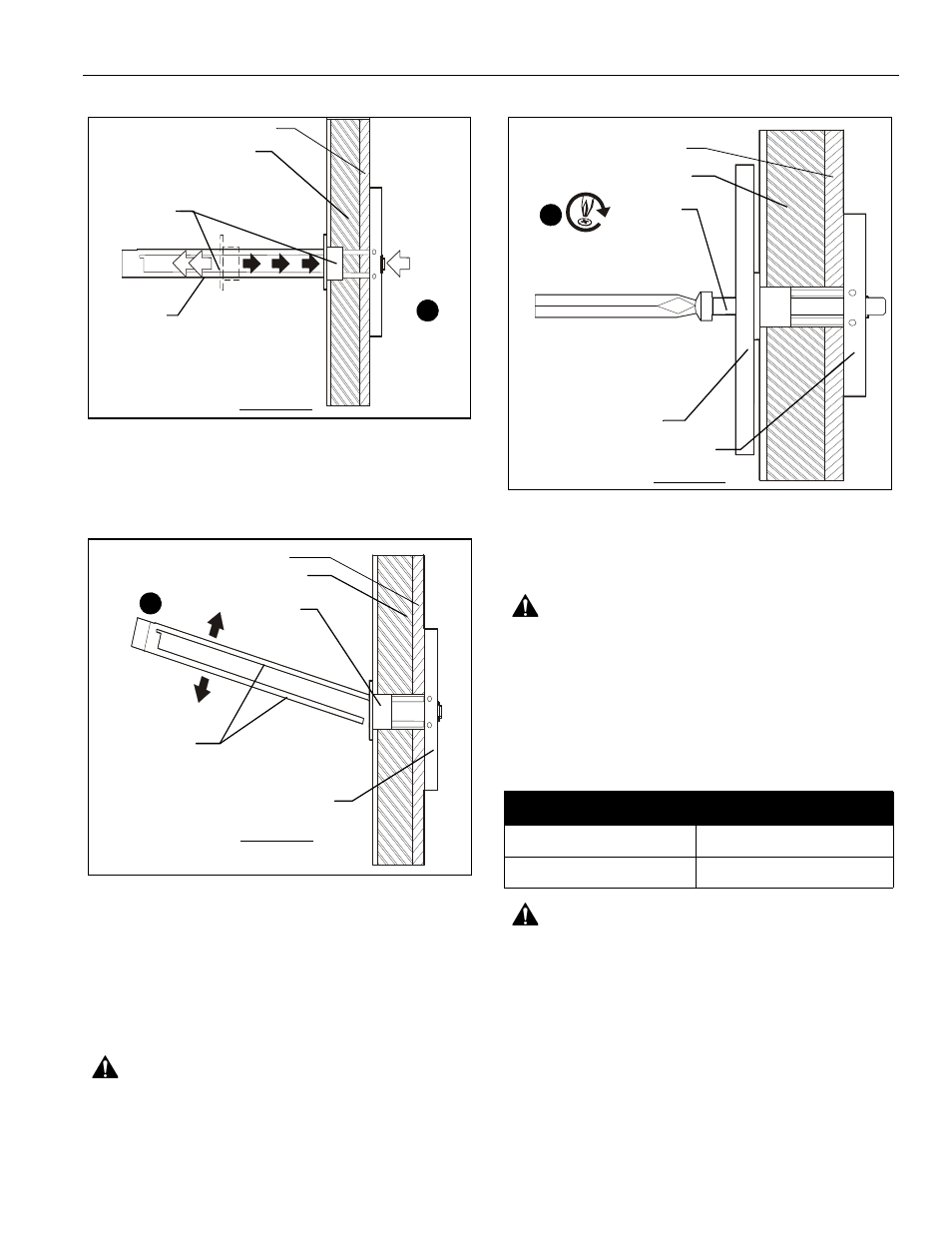

Figure 17
9. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 18)
10. Repeat steps 6 through 9 for each mounting hole.
Figure 18
11. Place wall track accessory over anchors and align mounting
holes in display mount with holes in anchors. (See Figure
13)
12. Insert 1/4-20 x 1 3/4" Phillips pan head screws (D) through
corresponding mounting hole on wall track accessory and
into anchor (C) and tighten until flush against mount. DO
NOT overtighten! (See Figure 14)
13. Repeat steps 11 through 12 for remaining mounting holes.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Overtightening of
mounting hardware can damage the steel studs. DO NOT
overtighten mounting hardware!
Figure 19
Computer Hardware Installation on
Horizontal Bracket
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the weight of each
component attached to the KSA-1022 wall track accessory
does not exceed 25 lbs (11.3 kg) or the specific weight limit
for the attached mounting device. Additionally, there is a limit
on how many components may be mounted on each bracket
depending on the mounting method. Refer to the table below
for details.
WARNING: For horizontal dual stud mounting on wood or
steel studs, a minimum distance of 8" must exist between
mounted devices. For horizontal triple stud mounting on
wood or steel studs, a minimum distance of 14" must exist
between mounted devices. (See Figure 20)
Plastic Cap
Drywall
Anchor Metal Channel
SIDE VIEW
(C) x 4 or 6 8
Steel Stud
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
9
Steel Stud
Two Mount Maximum Three Mount Maximum
Horizontal, dual stud mounting Horizontal, triple stud mounting
Vertical, drywall mounting Vertical, single stud mounting
Drywall
Anchor Metal Channel
Wall Track Accessory
SIDE VIEW
(D) x 4 or 6
9
Steel Stud
