1 laser calibration, English – CEMB USA ER100 (A) User Manual
Page 54
54
Use and Maintenance Manual Rev. 11-2010
ENGLISH

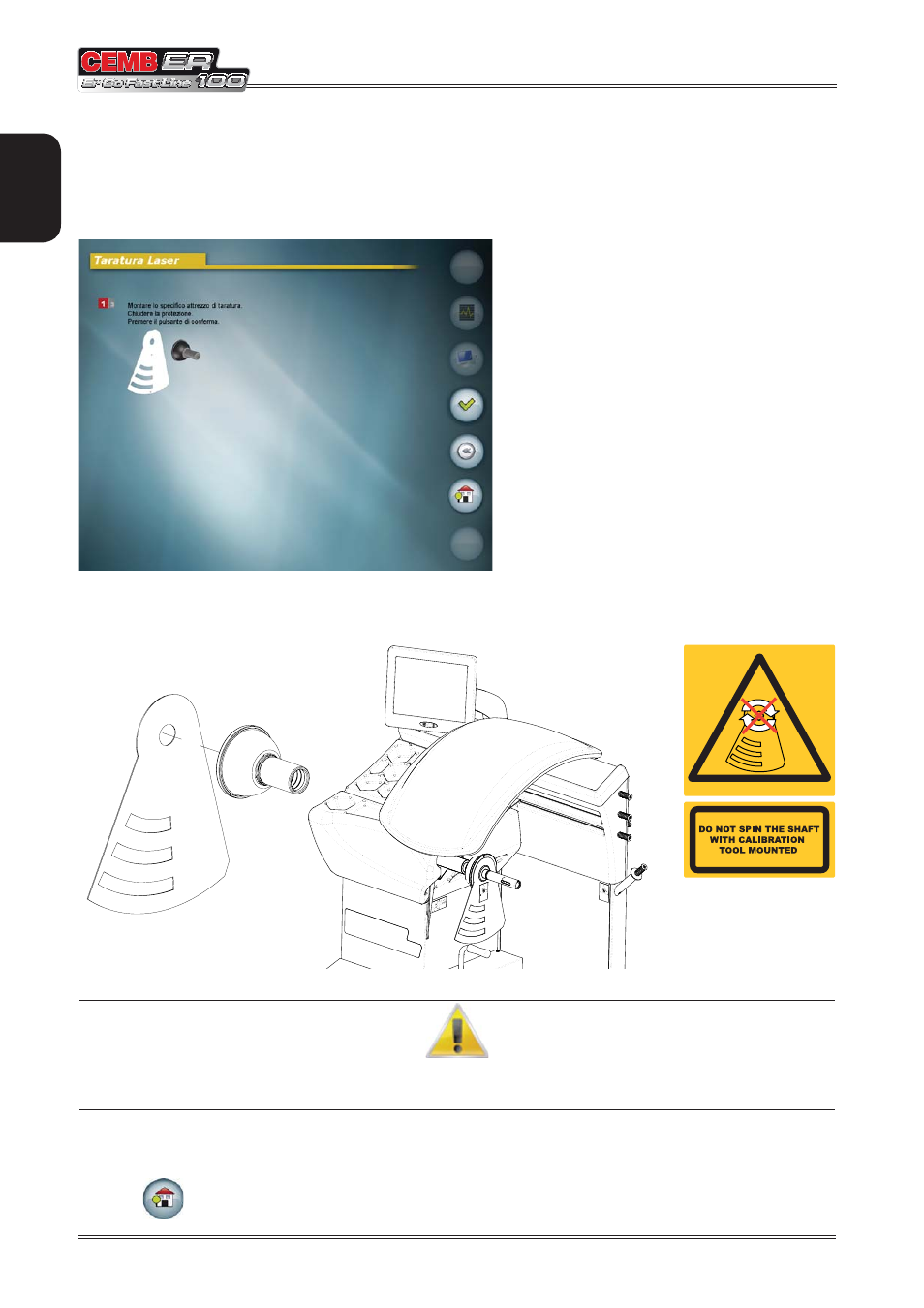

7.3.1 LASER calibration
Displays the laser calibration graph
Saves the laser calibration values
Confirm
Goes back to the measurement screen
Return to main screen
Open the spindle and fit the specific calibration tool as shown in the figure.
1.
Reserved Setup
T
HE
TOOL
CANNOT
BE
FITTED
IN
A
POSITION
DIFFERENT
FROM
THAT
INDICATED
IN
THE
FIGURE
.
A
LWAYS
FIT
THE
CAP
ON
THE
COLLAR
.
D
O
NOT
PERFORM
A
BALANCING
SPIN
WITH
THE
CALIBRATION
TOOL
FITTED
.
Close the spindle and the guard and press the confirm button.
1.
View the graph of the values read (only if necessary to check details).
2.
Save the calibration
3.
Press
4.
to exit from the screen.
