Machine description
3.1 MACHINE FUNCTION
The ER100-I is a wheel balancing machine for cars, light commercial vehicles, 4-WDs, motorcycles and scooters
that weigh less than 75 kg. It can be operated in a temperature range of 0° to + 45° C.
It can operate only on a flat and non-resilient surface.
Do not mount any wheels other than motorcycle, car or truck wheels on the wheel balancing machine.
Thanks to the new and exclusive VDD (Virtual Direct Drive) system, reliable unbalance measurements can be made in
a short time, almost half the cycle time of other wheel balancing machines in this range.
3. Machine description
The main features include:
Automatic dimension measurement ▪
Inside and outside rim eccentricity measurement ▪
Automatic minimisation of static unbalance ▪
Selection of optimal wheel mounting ▪
Customisable certificate printout ▪
Machine setting menu ▪
Unbalance optimisation ▪
Static program, ▪ ALUS; SPLIT; BPC; indication of exact position of the correction weights; self-diagnostics; self-
calibration

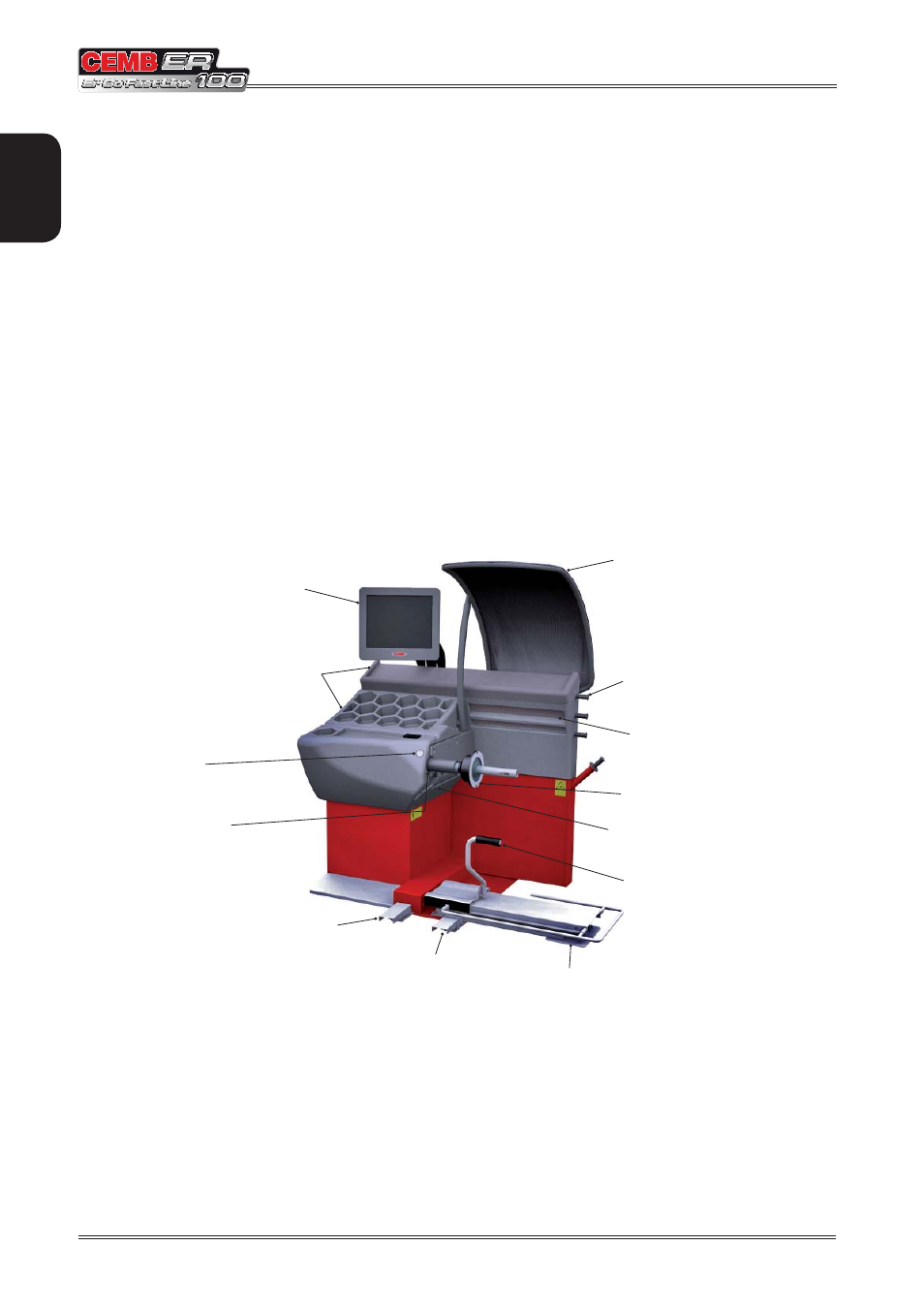

TFT TOUCH SCREEN
GUARD
WEIGHT TRAY
LASER POSITIONING
PNEUMATIC LOCKING PEDAL
RIM INTERIOR LED LIGHT
ZERO WEIGHT PEDAL
ZERO WEIGHT
CONE HOLDER
EXTERNAL SCANNING LASER
PNEUMATIC SPINDLE
INTERNAL SCANNING LASER
ZERO WEIGHT CARRIAGE LEVER
