11
Ø250mm
Zona d’azione laser scansione
Use and Maintenance Manual Rev. 11-2010
ENGLISH

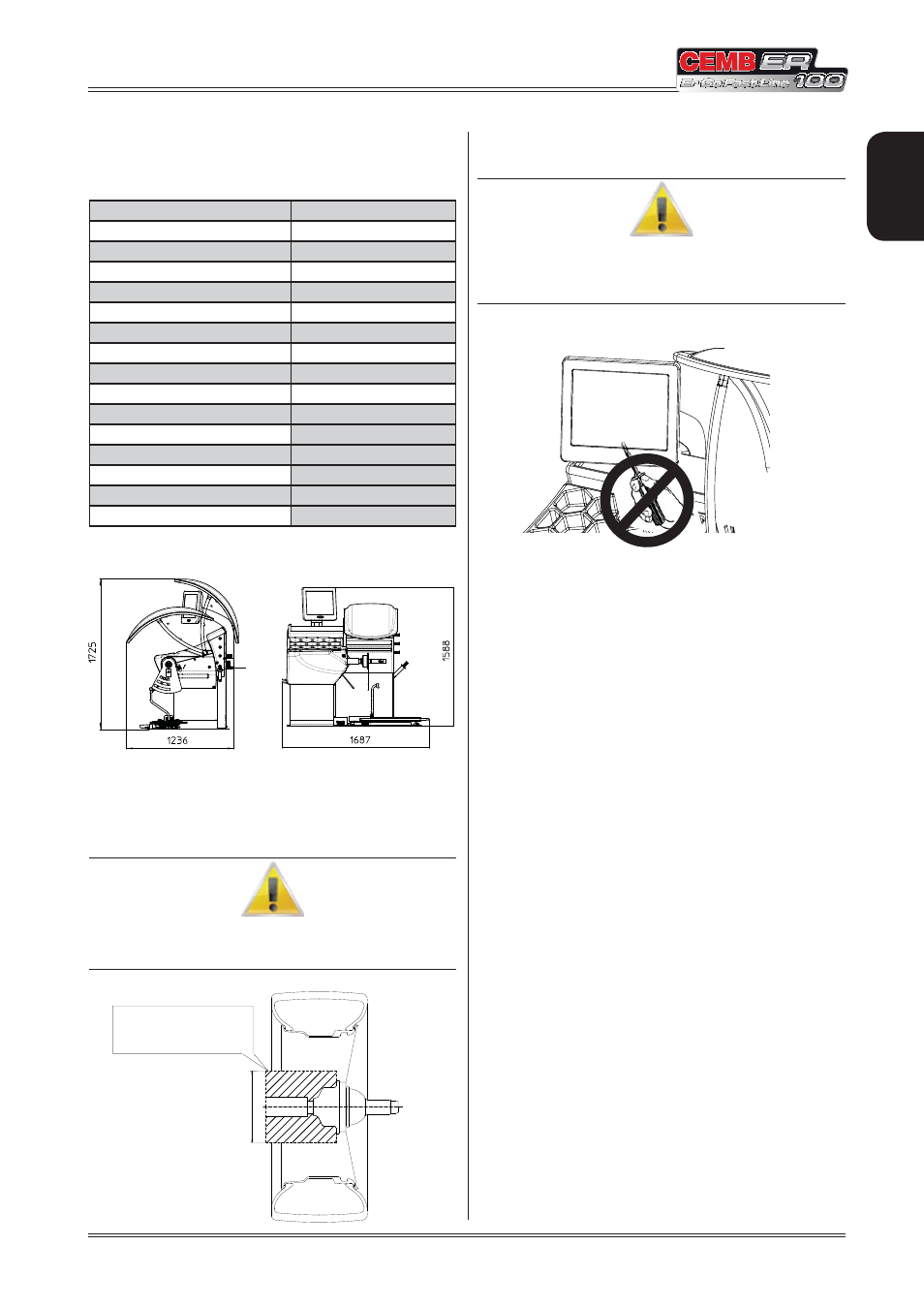

3.2 TECHNICAL SPECIFICATIONS
The following data refers to the wheel balancing machine
in its standard configuration.
Single phase power supply 115 /230 V 50/60 Hz
Protection class IP 54
Maximum power absorbed 0.65 kW
Balancing speed 100 min -1
Cycle time per wheel 4.7 seconds (5 3/4"x14") 15 Kg
Maximum measurement resolution 1 gram
Position resolution ± 1.4 °
Average noise < 70 dB(A)
Rim / machine distance 0 - 255 mm
Rim width setting range 1.5”-20” or 40 - 510 mm
Settable diameter 10” ÷ 30” or 265 ÷ 765 mm
Min/max. compressed air pressure 8 ÷ 10 Kg/cm 2
~ 0.8 ÷ 1 Mpa;
~ 8 to 10 BAR;
~ 115 to 145 PSI.
Air consumption for wheel locking/release 4 litres (at 8 kg/cm 2 )
3.3 DIMENSIONS AND WEIGHTS
The machine weighs 200 kg.
3.4 WARNINGS
CAUTION:
K EEP THE AREA INDICATED IN THE FIGURE FREE OF TOOLS ,
ADAPTERS , ETC .
The function buttons are selected by pressing on the
TOUCH SCREEN.
CAUTION:
P RESS THE BUTTONS ONLY WITH YOUR FINGERS .
N EVER USE THE COUNTERWEIGHT GRIPPERS OR OTHER POINTED
OBJECTS !
Machine description
Scanning laser range
of action
