Use of the wheel balancing machine
6. Use of the wheel balancing machine

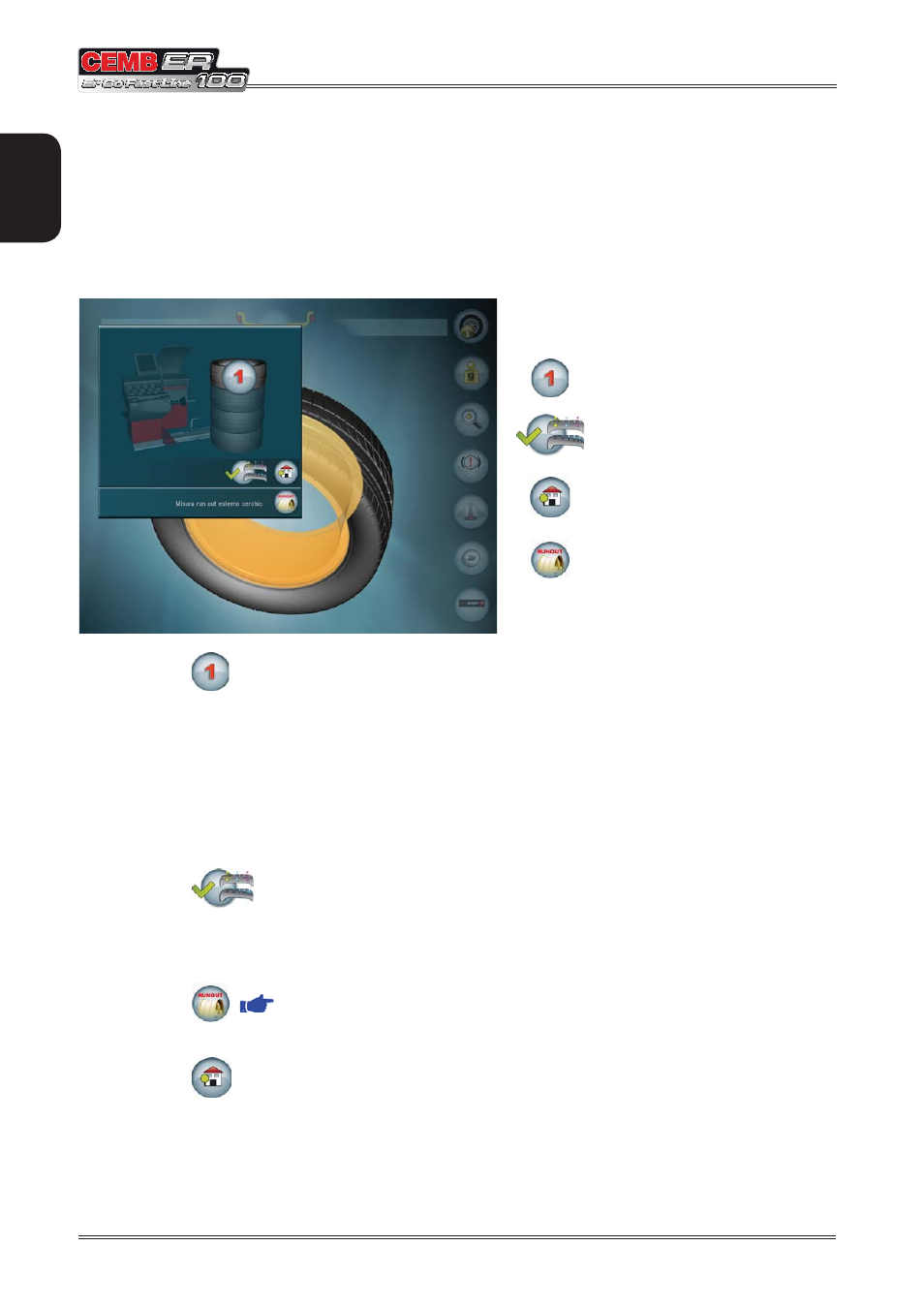

6.1 DIMENSION ACQUISITION
Acquires the wheel dimensions
Enables/disables taper and tread measure-
ment
Return to main screen
Outside rim eccentricity measurement
(use with the rim only)
NEW WHEEL
Press the button
to acquire the dimensions.
Close the guard to perform the balancing spin.
WHEEL THE SAME AS PREVIOUS
Close the guard to perform the balancing spin.
The machine in any case checks the wheel dimensions and if they are different from the previous wheel, automati-
cally measures them again.
With this innovative system you can balance a set of 4-5 wheels measuring the dimensions only once, thus saving
a lot of time.
TAPER AND TREAD MEASUREMENT AT THREE POINTS
Press the button to enable/disable complete taper and tread measurement.
This function uses a special measuring cycle that extends the cycle time by a few seconds.
The setting remains stored even when the wheel balancing machine is turned off.
OUTSIDE RIM ECCENTRICITY MEASUREMENT WITHOUT TYRE
Press the button (
OUTSIDE RIM RUNOUT
)
CANCEL DIMENSION SETTING
Press the button .
