I 0568 - 16

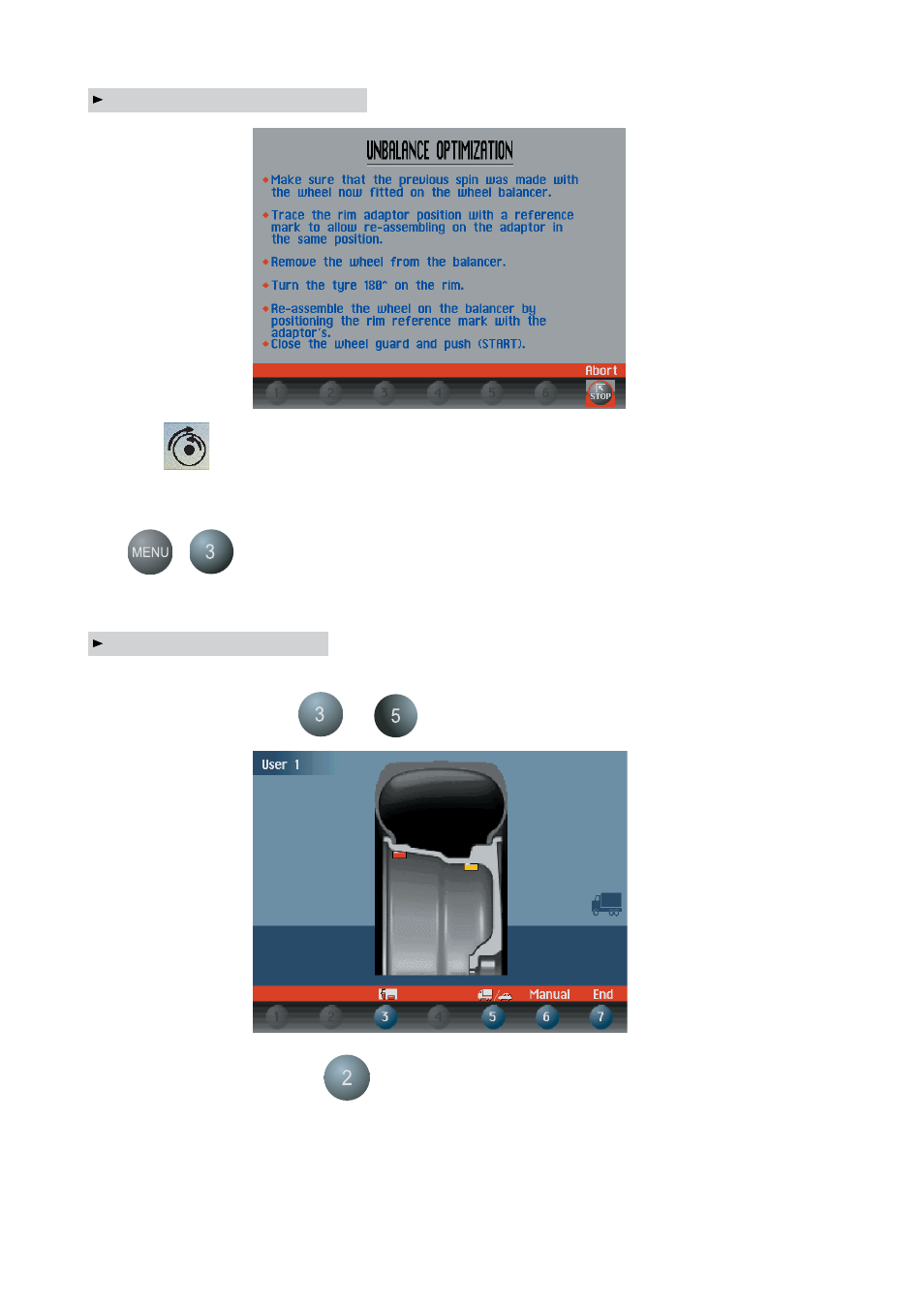

5.5.3 - Unbalance optimization

The symbol

is displayed automatically for static unbalance exceeding 30 grams (1.1 oz) for cars or 300 g

(10.5 oz) for trucks. The program allows reducing the total unbalance of the wheel by compensating, when possible,
the unbalance of the tyre with that of the rim. It requires two spins with rotation of the tyre on the rim in the second
spin.

Press

after a ﬁ rst spin and follow the instructions appearing on the monitor.

5.5.4 - Correction modes

After having performed automatic measurement of the inner side, it is possible to place the correction weights as

required by pressing pushbuttons

and

To display static unbalance, press the

button on the measurement screen (for ALUS static, the inner side

diameter is always considered).
