5.5 - Result of measurement

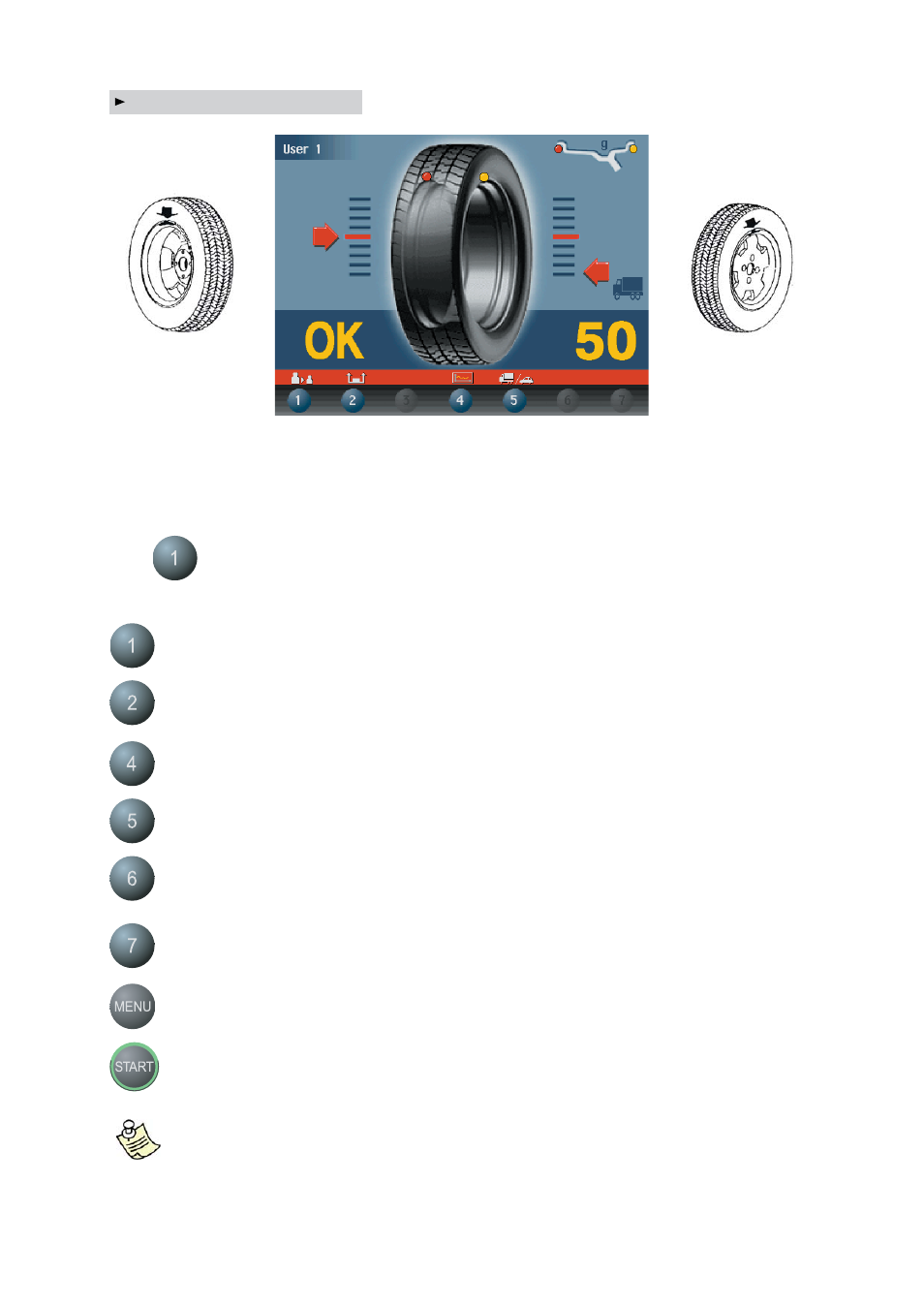

After performing a balancing spin, the unbalance values are displayed as well as arrows useful for positioning the
point of application of the correction weight. After positioning the wheel, apply the weight in the 12 o’clock position.
When the acoustic beep is enabled (see section
ACOUSTIC SIGNAL ), reaching of the correction position is indicated
by a “beep”.
If the unbalance is less than the chosen threshold value, the “OK “ message appears instead of the unbalance value
to indicate, on that particular side, the wheel is in tolerance; the residual unbalance can be displayed by pressing
button with an accuracy of 0.5 g (0.1 oz).
The following buttons are enabled:
Display of residual unbalance
Selection of STATIC correction mode. When the mode is changed, the unbalance values are recalculated
automatically on the basis of the previous spin
Eccentricity measurement graph (option)
Selection car/truck
Split control for splitting of unbalance over presettable components ( “SPLIT” CONTROL ). Button only
enabled in STATIC or ALU S correction.
Indication of the longitudinal position of the unbalance ( INDICATION OF EXACT CORRECTION WEIGHT
POSITION ) is enabled
For selection of special functions
Balancing spin.
N.B.: If the machine remains on this screen without being used for more than the time preset in the
Setup parameters (6), the screen automatically returns to the screen-save.
Correction on inside Correction on outside
