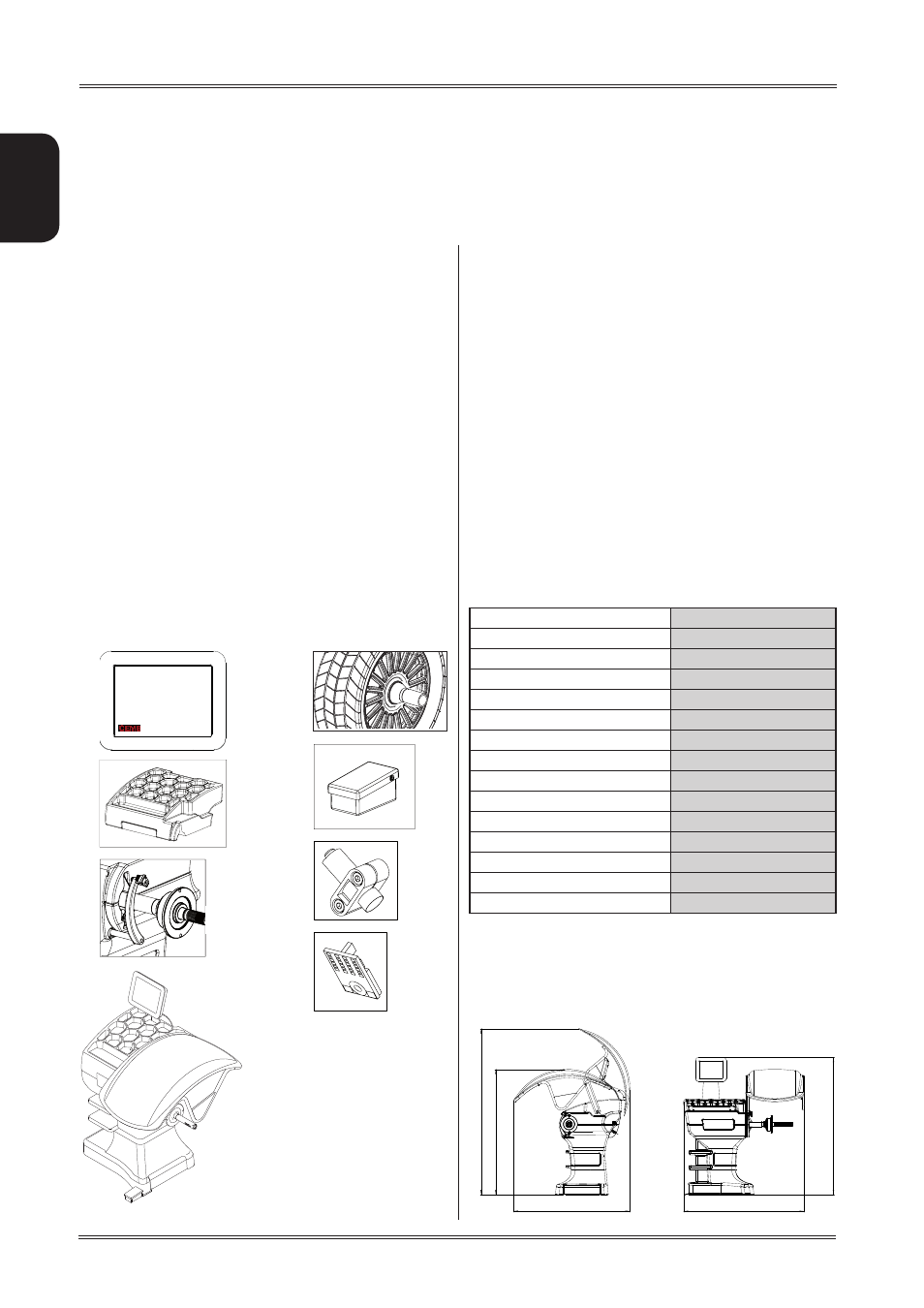

Use and maintenance manual Rev. 09-2013
ENGLISH
Machine description
2.1
PURPOSE
It is used to balance the wheels of cars, vans, 4-WD, mo-
torcycles and scooters. The wheels must weigh less than
75 kg. and, when fitted on the balancing machine, must
not interfere with any fixed part of the machine, excluding
the shaft and support adaptor.
The machine is supplied with equipment enabling the
vast majority of car wheels available on the market to be
fitted. Other wheels with special dimensions, geometry
and centring require special adaptors supplied on request.
The machine can oper
ate only on flat non resilient floor.
To lift the machine, lever only on the base where the 3
support points are located. never, under any circustance,
apply force to other points such as the spindle, head, or
accessory shelf. It functions properly without having to
fasten it to the floor with wheels weighing up to 35 kg; for
heavier wheels, fasten it at the points indicated. Do not
mount anything other than motorbike, car or truck tyres
on the wheel balancer.
Thanks to the new and exclusive VDD (Virtual Direct Drive)
system, reliable unbalance measurements can be made
in a short time, almost half the time of the cycle used with
respect to other balancers in this range.
The main features include:
▪ machine settings menu.
▪ touch panel
▪ adhesive weight positioning laser
▪ rim interior light
▪ wheel locking
▪ automatic width
▪ radial eccentricity measurement
▪ static programme, ALUS; SPLIT; unbalance optimization;
exact correction weights with gauge lock in position;
self diagnostics; calibration.
▪ automatic minimisation of static unbalance
2.2
TECHNICAL SPECIFICATIONS
The following data refers to the balancer in its standard
configuration.
Single-phase power supply
115 / 230 V 50/60 Hz
Protection class
IP 54
Max.power consumption
0,15 Kw
Balancing speed
100
min
-1
Cycle time for wheel
4.7 sec. (5 3/4”x14”) 15 Kg.
Measurement uncertainty
0,5 g
Average noise
< 70 dB (A)
Rim width setting range
1.5” ÷ 20” or 40 ÷ 510 mm
Diameter setting range
10” ÷ 30” or 265 ÷ 765 mm
Min/max. compressed air pressure
7 ÷ 10 kg/cm
2
approx. 0.7 to 1 Mpa;
approx. 7 to 10 bar;
approx. 105 to 145 psi.
Maximum wheel weight
< 75 Kg.
Machine weight
120 Kg.
2.3 DIMENSIONS
2. Machine description
1. TOUCH CONTROL PANEL
2. WEIGHT-TOOL HOLDER
3. AUTOMATIC GAUGE
4. COLLAR
5. BP PEDAL
6. WHEEL POSITIONING LASER
7. WHEEL INTERIOR LED LIGHT
