CASTLE, INC AT‐8 OWNERS MANUAL V2.1 Page 14 of 30

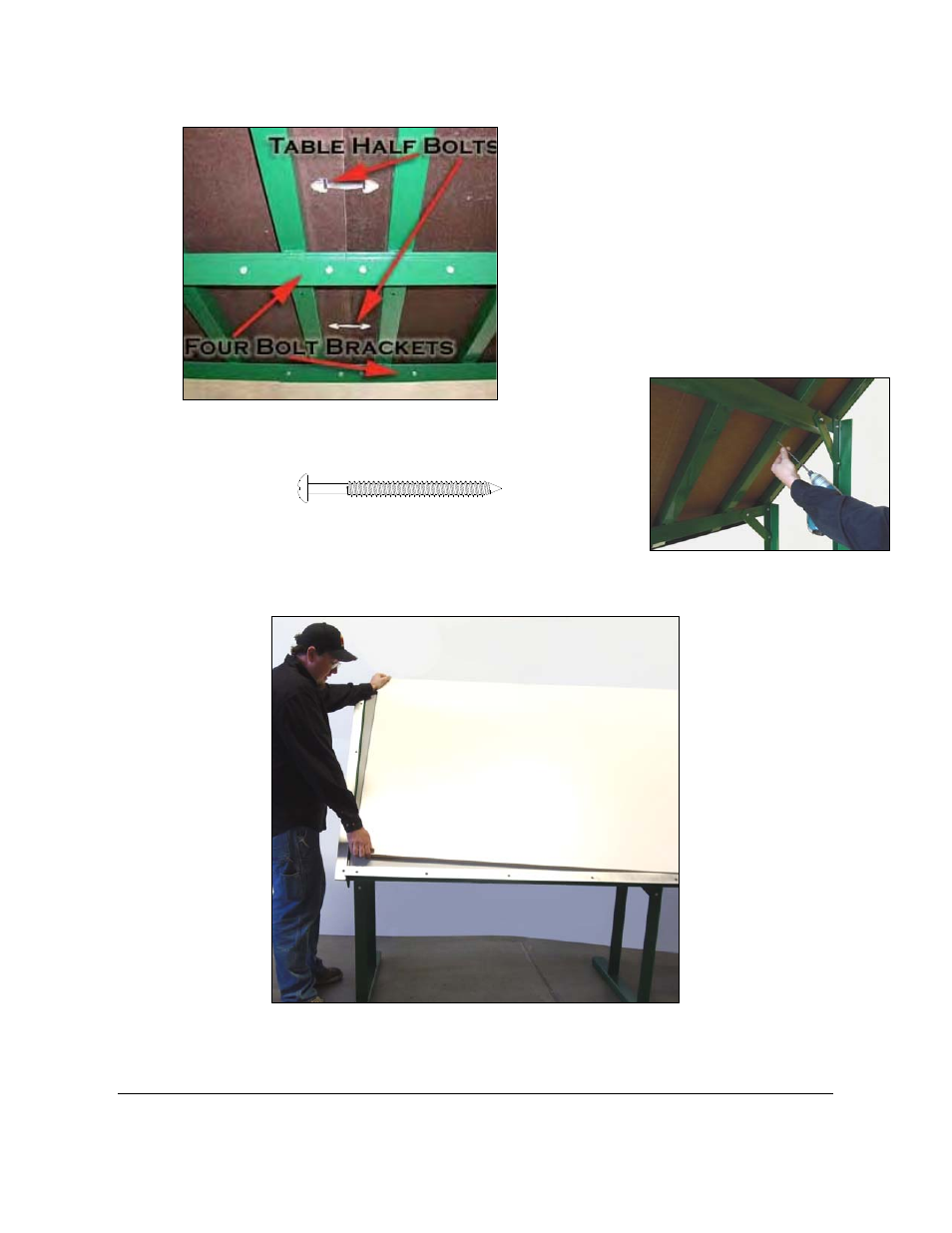

4. Install draw bolts [F14312] .
5. Using the (30) #10 X 2-1/2” pan Phillips sheet metal screws
[F10212] fasten the table down through the rear of the frame.
6. Place a sheet of plywood measuring AT LEAST 4’ x 8’ on the table, and rest it on the
bottom fence.
7. Push up on the end of the fence opposite the end with the tight bolts until the fence is
flush with the wood. Now tighten all of the bolts for the fences.
