CASTLE, INC AT‐8 OWNERS MANUAL V2.1 Page 10 of 30

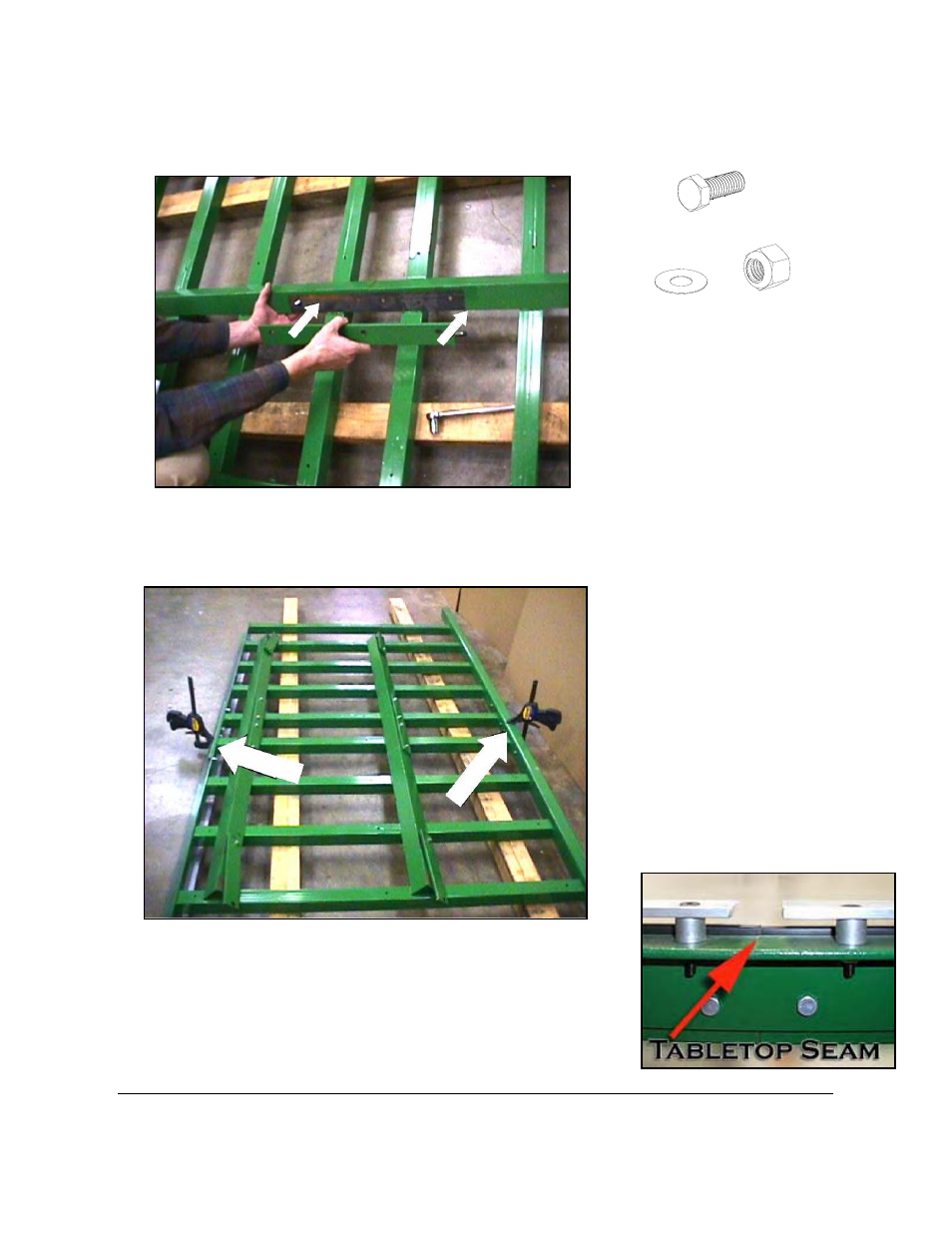

9. Position all three joining plates [G08513 & G08512] and bolt loosely in position using
3/8-16 x 1” bolts [F38161], 3/8 Nuts [F38168] and 3/8 washers [F03876] .
10. Using the pictures as guide, clamp the joints at the top and bottom of the frame.
Make these joints as flush as possible. Keep in mind that the bearings for the clamp
arms are going to roll along this joint.
11. Tighten top and bot-
tom joining plates
first, then tighten all
the plates. Remem-
ber to keep the top
and bottom as close
to flush as you can.
