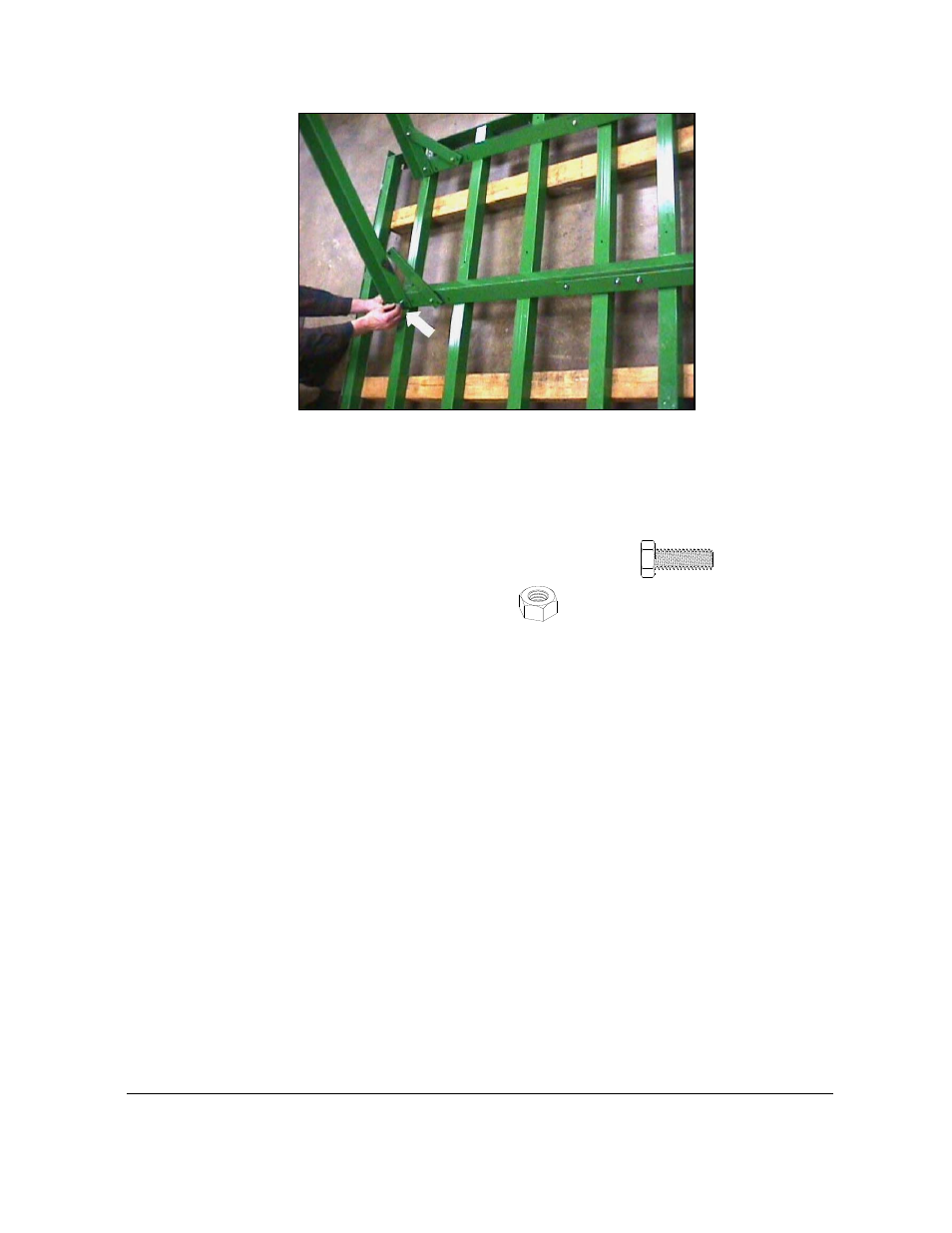

12. Attach the legs and leg braces
13. To attach each leg you will need:
a. (2) leg braces [G08516] ,
b. (6) 5/16-18 x 7/8” hex head cap screws [F51878] and
c. (6) 5/16-18 hex nuts [F51628] .
14. Have someone hold the leg while you fasten it to the frame. The flat part of the angle
iron should face the inside of the machine.
15. Attach the (2) leg support bracket using bolts supplied. Repeat this process for the
other side.
16. Roll the assembly onto the legs by rolling it first over the top tube, then onto the leg
backs, and finally up and into a fully upright position.
17. Check that all the leg braces and bolts are securely tightened.
