C.E. Niehoff & Co. N7390/A5-116 Replacement Instructions - Manual

II0121A
Page 1 of 1
N7390/A5-116 Forging/
Field Coil Asssembly
Replacement Instructions
The forging and fi eld coil assembly included
in this replacement kit have three studs to be
installed.
1. Install the shorter stud in the top hole to the de-
mension shown. Use a suitable adhesive such as
Loctite® 222. Follow manufacturer’s instructions.
2. Install the two longer studs in the bottom holes to
the dimension shown. Use a suitable adhesive such
as Loctite® 222. Follow manufacturer’s instruc-
tions.

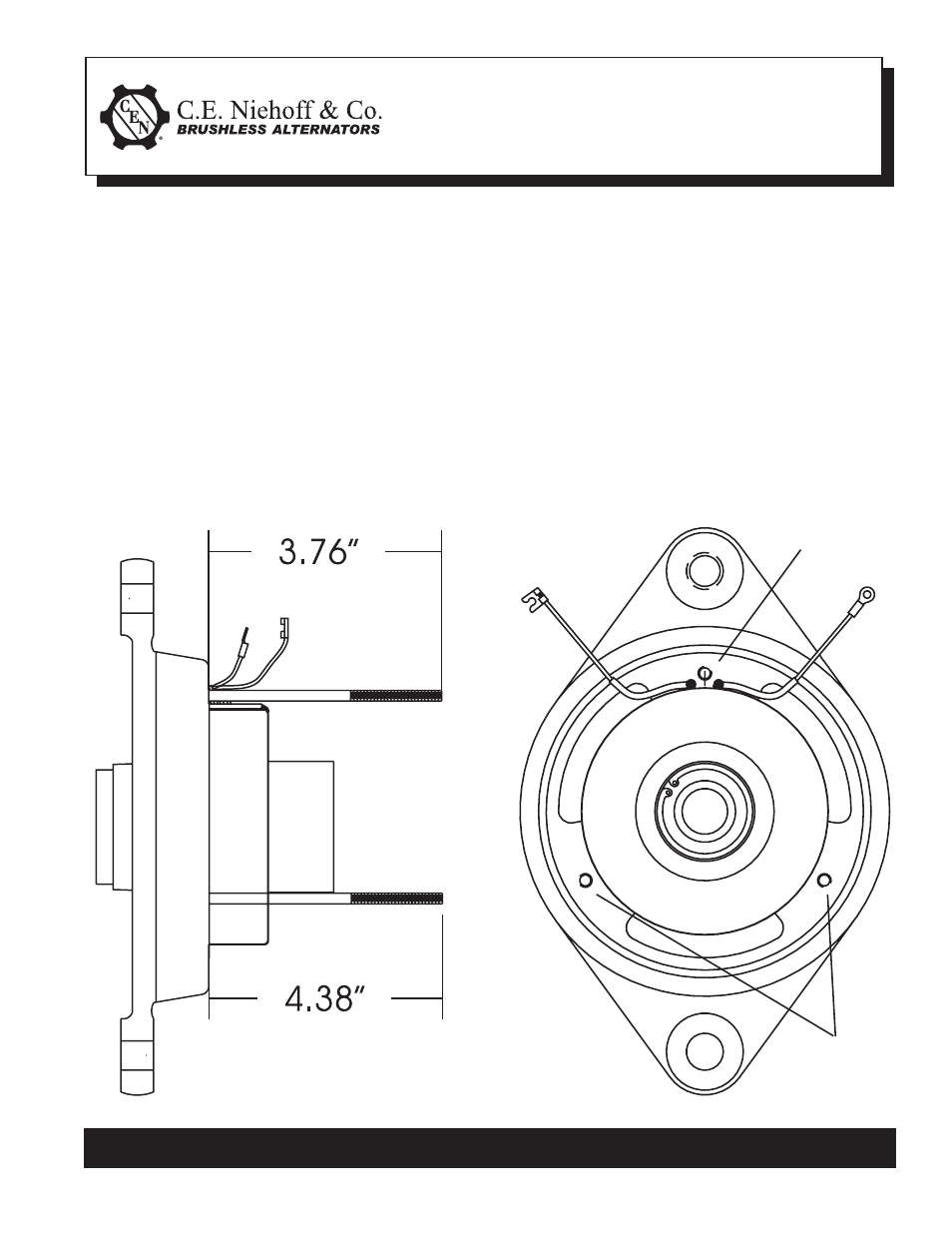

Figure 1 - N7390/A5-116 Forging/Field Coil Assembly
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
each
V
V
Longer studs
(2)
Shorter stud
V
