C.E. Niehoff & Co. N3109/N3014 Regulator Kit Installation User Manual
Installation instructions
Page 1 of 1
II0067A
N3104 and N3109 Regulators
Installation Instructions
C. E. Niehoff & Co.
BRUSHLESS ALTERNATORS
The following term is used to bring attention to the presence of hazards of various risk levels or to important information
concerning product life.
Indicates the presence of hazards that will cause severe personal injury, death, or substantial
property damage if ignored.
DANGER
Do not allow hardware to drop
inside alternator. Loose hard-
ware inside alternator cavity or
stator windings or field coil
will cause substantial
equipment damage.
DANGER
1.
Place new bracket, spacer, and regulator on top
of control unit as shown in Figure 1 or 2.
2.
Use a suitable adhesive, such as Loctite
®
222 on
new hardware. Follow manufacturer’s instruc-
tions. Loosely install (see Figure 1 or 2):
a. one long (Note: medium for Figure 2) screw
and washer in regulator mounting hole
above spacer.
b. remaining long screw and washer in front
regulator mounting hole above bracket.
c. one short screw and washer in rear regula-
tor mounting hole above bracket.
d. remaining short screw and washer in
bracket. (Note: two screws and washers are
required in Figure 2.)
3.
Torque screws in a-b-c-d order listed in step 2
to 2-2.25 Nm/18-20 lb. in.
4.
Plug harnesses into regulator receptacle in
housing and connect cabling.
Test unit on bench to verify proper operation
after assembling.
TTTTT
Long screw

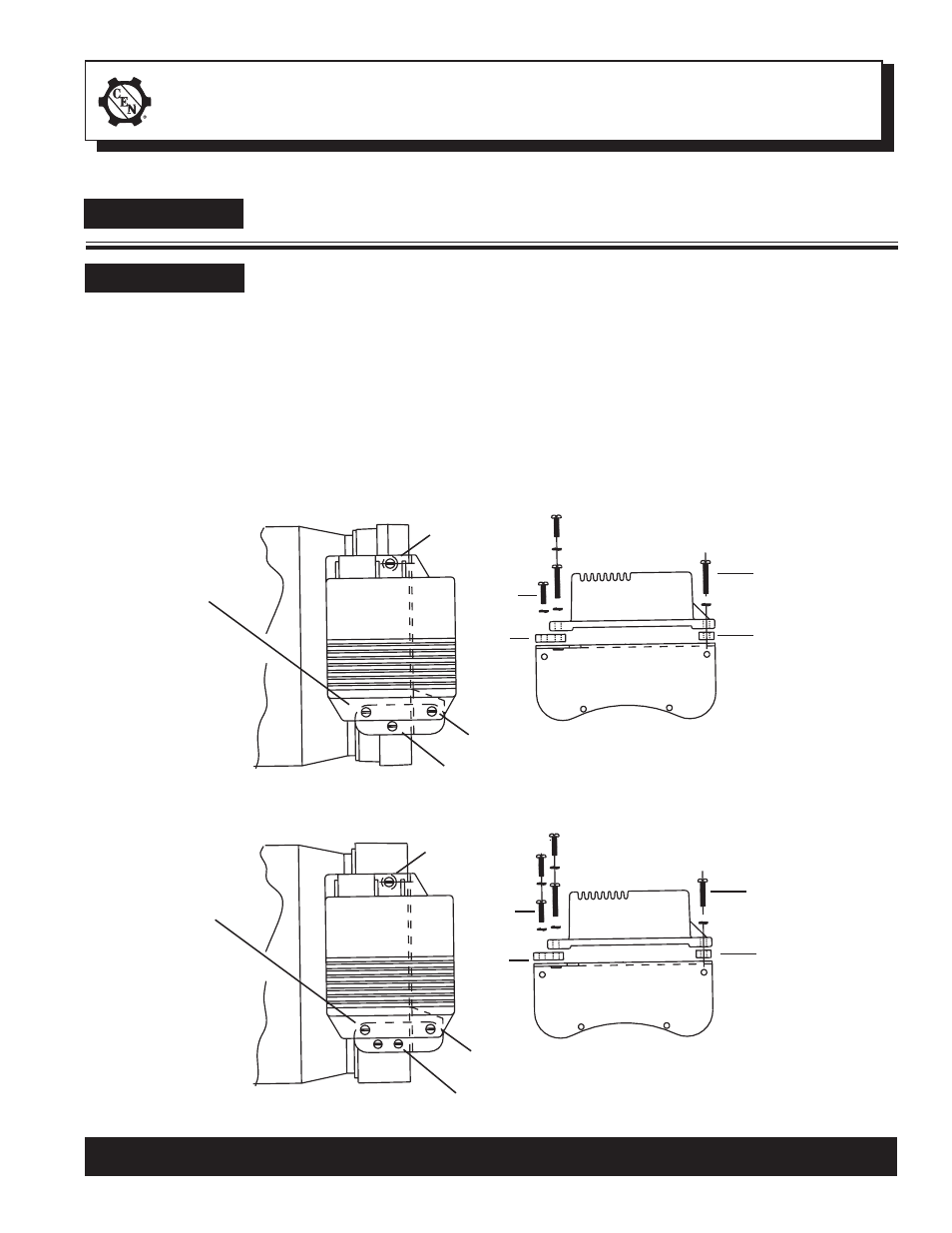

Figure 1—N1380-1/N1380-2 Alternator with New N3104 or N3109 Regulator
TTTTT
Short
screw
TTTTT
Bracket*
(CEN
part no.
N9450)
TTTTT
Spacer*
(CEN Part no. N9447)
Long screw -
step 2a
T T T T T
Long screw -
step 2b
T T T T T
Short screw -
step 2c
T
T
T
TT
Short screw -
step 2d
T T T T T
TTTTT
Medium
screw
Figure 2—N1382-1/N1382-4 Alternator with New N3104 or N3109 Regulator
TTTTT
Short
screw
TTTTT
Bracket*
(CEN
part no.
N9573)
TTTTT
Spacer*
(CEN Part
no.
N9447)
Medium screw -
step 2a note
T T T T T
Long screw -step 2b
T T T T T
Short screw -
step 2c
T
T
T
TT
Short screw -step 2d note
T T T T T
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
