C.E. Niehoff & Co. N1241-1 Alternator/N3208 Regulator Installation - Manual (Page 2)

II0104A
Page 2 of 2
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
N1241-1
Alternator

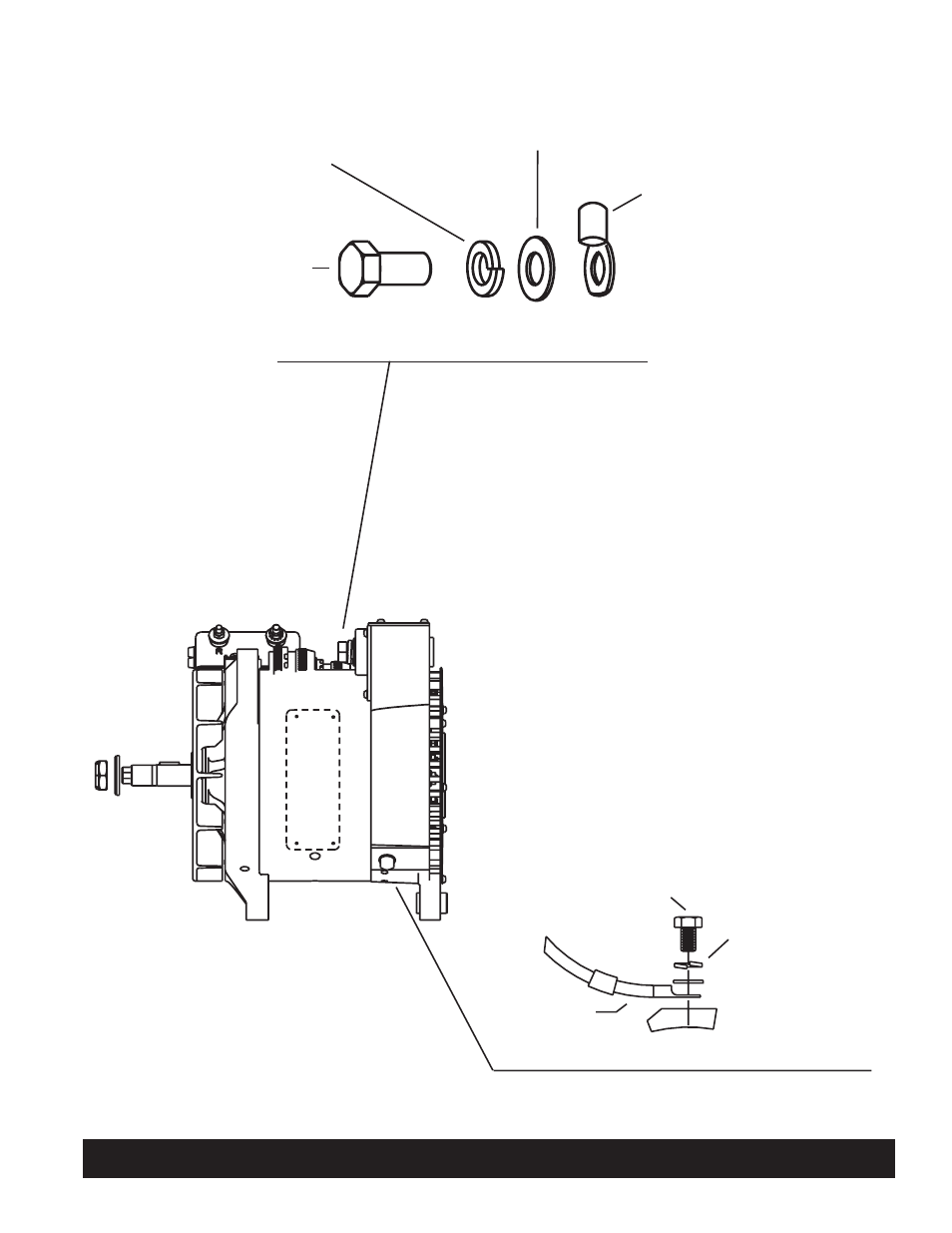

Figure 1b – 28 V or 14 V B+ Terminal Stacking Order
Lock washer
Ground Terminal Bolt,
5/16-18 UNC-2A;
torque to 23 Nm / 17 lb. ft.
Vehicle
ground lead
Figure 1c – Ground Terminal Stacking Order
Terminal from vehicle output leads
Washer Lock
washer
T
T
T
T
T
T
T
T
Bolt, 1/2-13;
torque to 23 Nm / 17 lb.ft.
T
