C.E. Niehoff & Co. N1235-1 Alternator/N3134 Regulator Installation - Manual (Page 2)

II0034B Page 2 of 2
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
N1235-1
Alternator

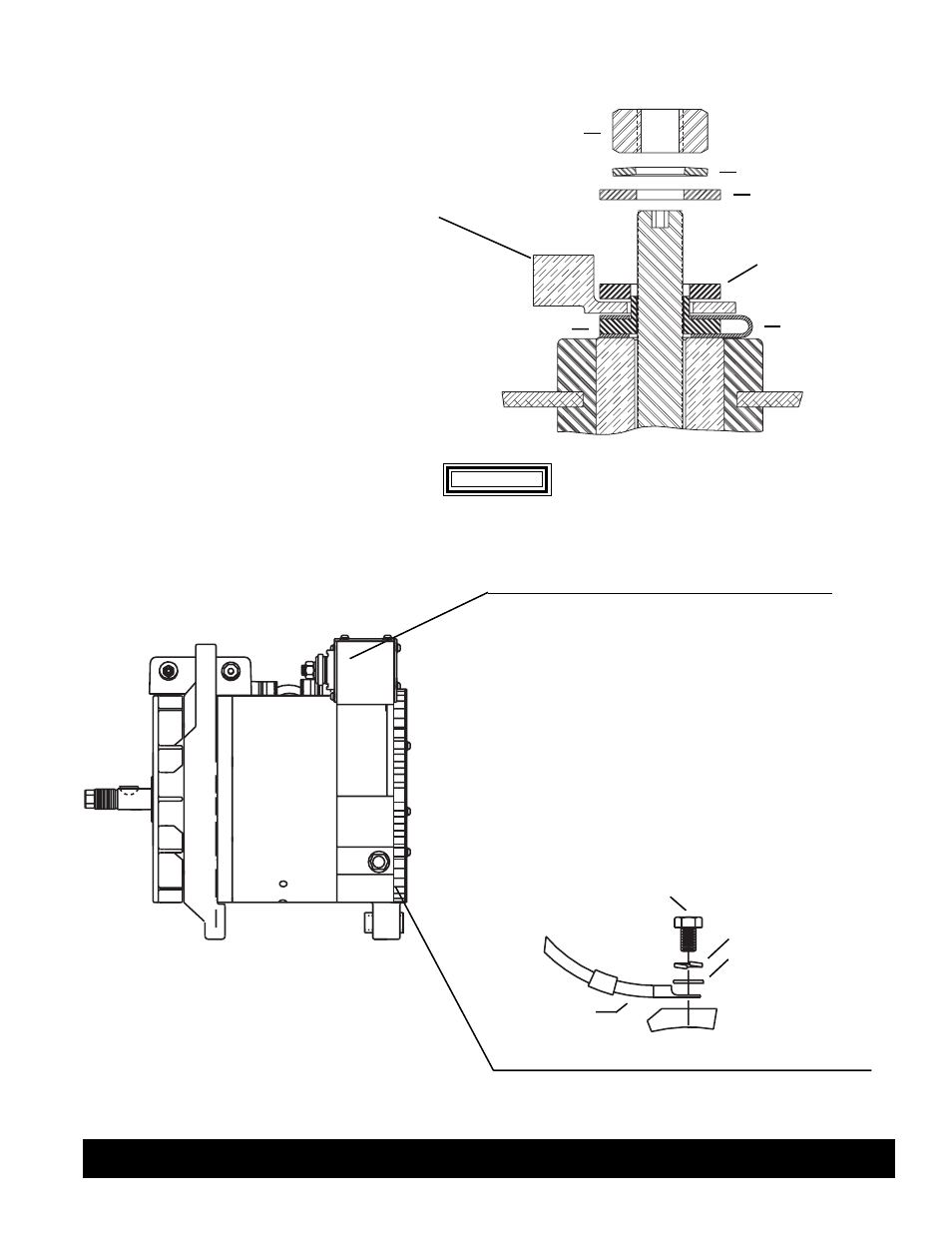

Figure 1b – B+ Terminal Stacking Order
Washer
Lockwasher
Ground Terminal Bolt,
.3125-18 UNC-2A;
torque to 23 Nm / 17 lb. ft.
Vehicle
ground lead
Figure 1c – Ground Terminal Stacking Order
The vehicle B+ cable lug must fit over the
shoulder insulator without damaging it. Failure to
properly seat the terminal and other hardware
can result in major damage to components and
other equipment.
WARNING
Fuselink
Insulator washer
Alternator is shipped with spacer-tag in this position.
Remove spacer-tag and replace with
Vehicle “B+” cable lug.
Flat washer
Disk spring
washer
Shoulder insulator
Nut, .3750-16;
torque to 21 Nm / 15 lb.ft.
