C.E. Niehoff & Co. CEN Alternator Eyebolt Installation - Manual

II0149A
Page 1 of 1
Eyebolt Installation
on CEN Alternator
Instructions
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
Nut
T

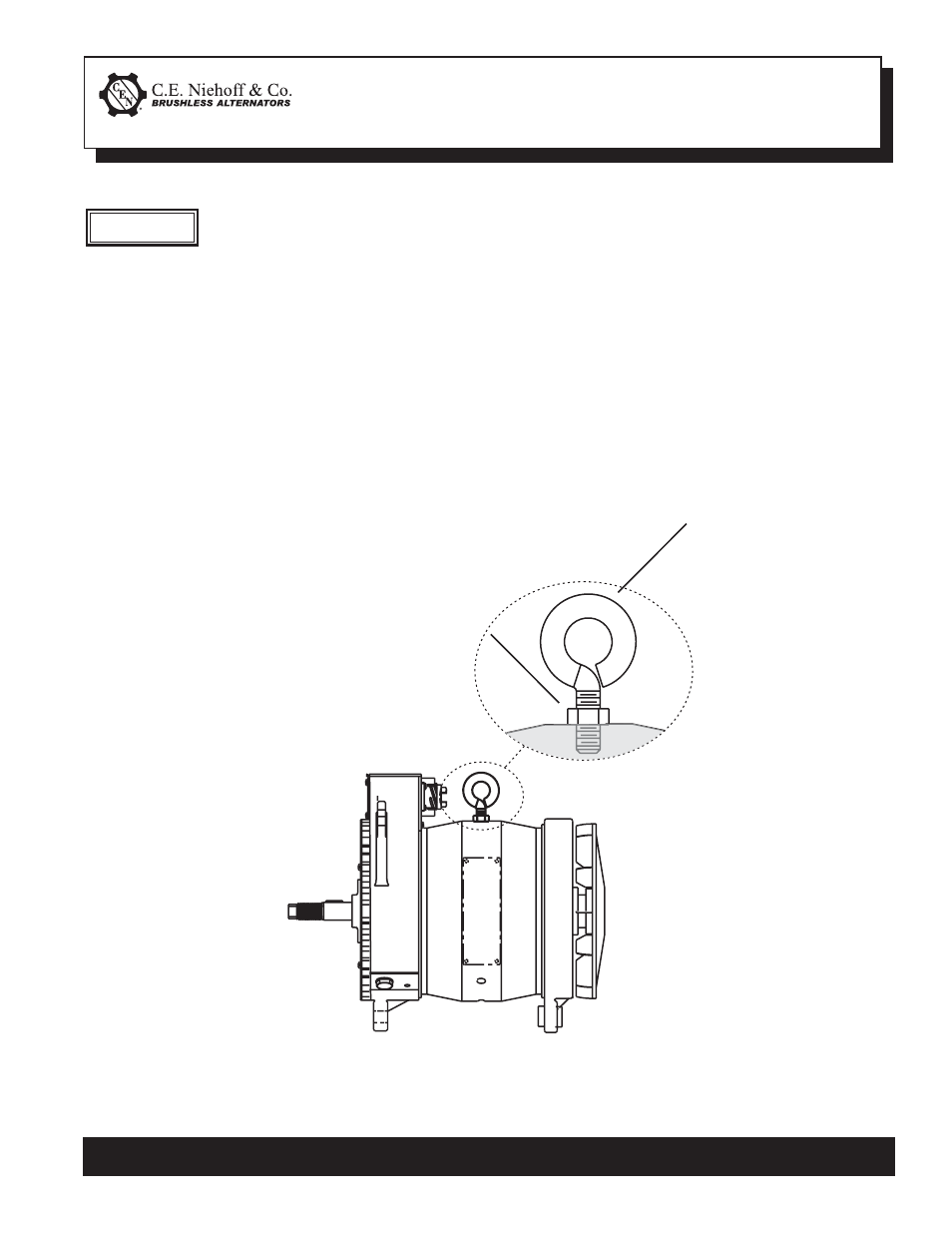

Figure 1 — Eyebolt Installation
Eyebolt
T
How to install eyebolt on CEN alternator:
1. Make sure nut is threaded on screw portion of
bolt up to the second or third thread for proper
installation.
}
2 to 3 threads exposed above nut
2. Install eyebolt in hole and tighten until nut
reaches shell with two or three threads exposed
above nut. Doing so will ensure screw portion
will fully engage shell and not interfere with
stator performance.
If re-installing eyebolt, make sure nut is pres-
ent and threads are clean and not damaged.
CAUTION
