C.E. Niehoff & Co. C803D/C840D Alternator OEM Installation User Manual
Ii64g page 1 of 2, Oem installation instructions

II64G
Page 1 of 2
C803D and C840D
Alternators
OEM Installation Instructions
This symbol is used to indicate the presence
of hazards that can cause minor personal
injury or property damage.
CAUTION
1.
A2-330/A2-336 regulators are flat-temperature compen-
sated and are factory-set at lowest setting to accommodate
8D batteries. For other batteries:
a. Remove regulator from housing and change position
on voltage selector switch. See Table 1.
b. Re-install regulator on drive end housing, and torque
mounting screws to 8.5 Nm/75 lb. in.

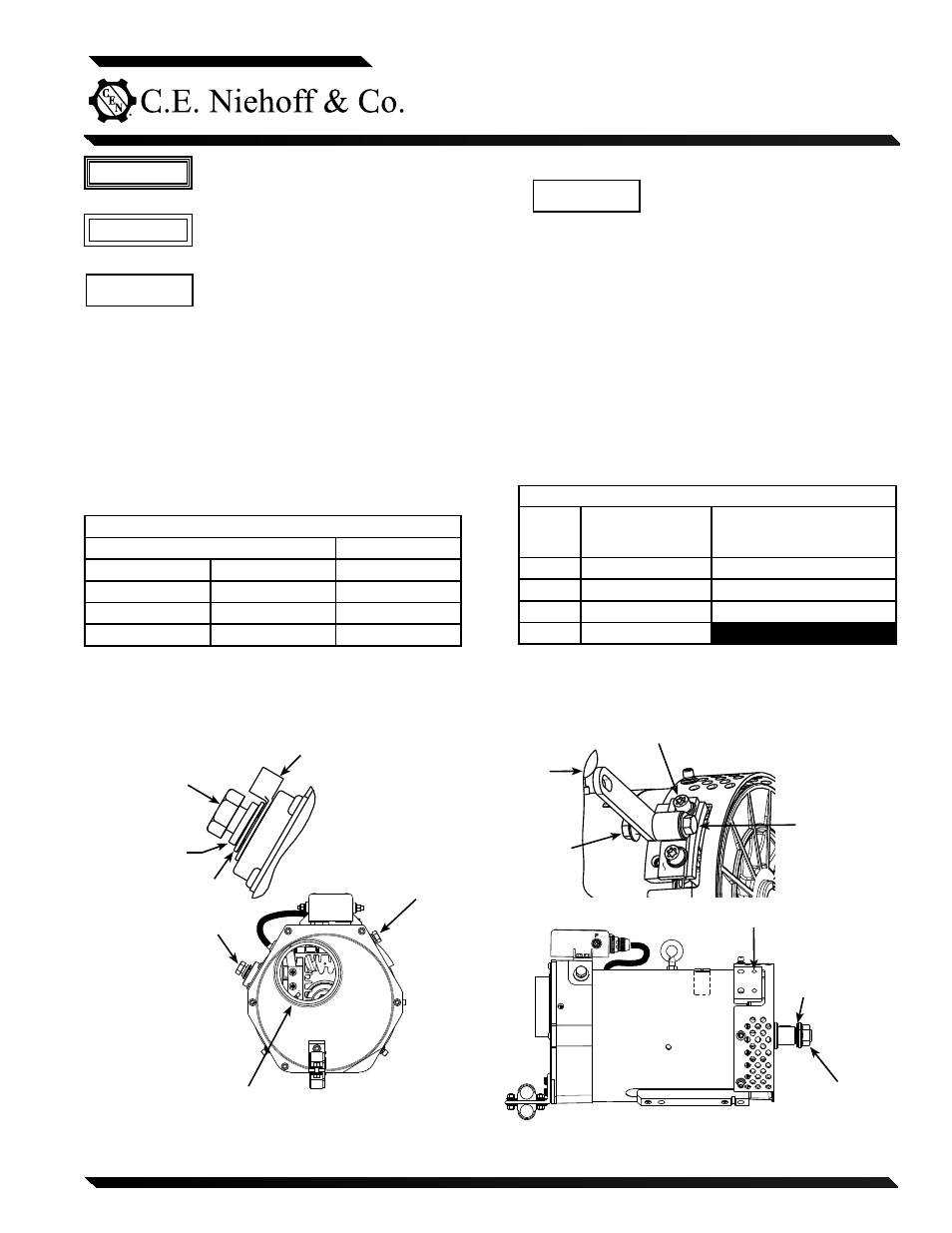

Figure 1 - Alternator Installation Details
B+ terminal –
see inset above
B– terminal M10 bolt –
torque to 15 Nm/11 lb. ft.
M20 nut–torque to
163 Nm/120 lb. ft.
Disc spring
washer
B+ terminal M12 bolt –
torque to 30 Nm/22 lb. ft.
Battery output
cable terminal
Washer
Lock washer
Dampening bracket mount –
see inset above
Non-louvered duct opening to attach
fresh air intake pipe. See Step 7, page 2.
M10 x 1.5 bolt, lockwasher, washer: 2 places –
torque to 27 Nm/20 lb. ft.
Secure to
engine block
(see step 2c above)
Bolt and washer
torque to
57 Nm/42 lb. ft.
* Use this setpoint to maintain proper battery charge level during
shorter operating cycles.
Table 1 — A2-330/A2-336 Regulator Voltage Selector Switch Position
Switch Position
Battery Type
1
27.5 V
Maintenance
2
28.0 V
Maintenance*
3
28.5 V
Maintenance-Free
4
29.0 V
Maintenance-Free*
If an extended wiring harness is supplied with
alternator and regulator, see separate instruc-
tions packed with harness.
This symbol is used to indicate the presence
of hazards that can cause severe personal
injury or substantial property damage.
WARNING
Nut
Table 2 — A2-346 Regulator Voltage/Battery Switch Position
Switch
Position
A9-4036 Harness
Not Connected
(Voltage Select)
A9-4036 Harness
Connected (Battery Select)
1
27.5 V
Maintenance (D Catergory)
2
28.0 V
Maintenance-free (Group 31)
3
28.5 V
AGM
4
29.0 V
DO NOT USE POSITION # 4
A2-346 regulator is flat-temperature compensated.
A2-346 28 V regulator can be used with or
without A9-4036 temperature-voltage sense/
J1939 harness from the vehicle.
• When A9-4036 temperature-voltage sense/
J1939 harness is not connected, regulator
will operate in fixed voltage setting deter-
mined by the select switch position on the
bottom of the regulator. See column 2 in
Table 2.
• When A9-4036 temperature-voltage sense/
J1939 harness is connected, regulator will
automatically optimize the charge voltage
for battery type based on temperature.
See column 3 in Table 2 and select switch
position based on battery type.
Regulator is factory-set to Position 1. To change, remove
regulator, turn regulator over, and select appropriate
switch position (see NOTICE above and Table 2).
Re-install regulator on alternator. Torque screws to
8.5 Nm/75 lb in.
NOTICE
This symbol is used to indicate special instruc-
tions on installation, operation, or maintenance
that are important, but not related to per-
sonal injury hazards.
NOTICE
